Keysight (Agilent) N9042B
| Atributo | Valor |
|---|---|
| Rango de frecuencia | 2 Hz – 110 GHz |
| Rango de amplitud (DANL) | -163 dBm/Hz (típico) con preampliificador activado |
| Rango dinámico | Hasta 78 dB (TOI + DANL) |
| Ancho de banda de análisis en tiempo real | Hasta 510 MHz |
| Exactitud de nivel | ±0,19 dB (típico) |
| Resolución del ancho de banda (RBW) | 1 Hz – 50 MHz |
| Fase de ruido | -130 dBc/Hz a 10 kHz de separación (típico, portadora de 1 GHz) |
| Punto de intercepción de tercer orden (TOI) | +20 dBm (típico) |
| Pantalla | Pantalla táctil capacitiva de 15,6 pulgadas (1366 x 768 píxeles) |
| Conectividad y puertos de entrada | Conector de entrada RF de 1 mm (macho), USB, LAN, GPIB |
Keysight (Agilent) N9042B Options:
- N9042B - 526 - Frequency range 2 Hz to 26.5 GHz
- N9042B - 544 - Frequency range 2 Hz to 44 GHz
- N9042B - 550 - Frequency range 2 Hz to 50 GHz
- N9042B - P26 - Preamplifier (LNA and PA), 2 Hz to 26.5 GHz
- N9042B - P44 - Preamplifier (LNA and PA), 20 MHz to 44 GHz
- N9042B - P4L - Preamplifier (LNA and PA), 20 MHz to 44 GHz (limited LNA/PA simultaneous use above 43.5 GHz)
- N9042B - P50 - Preamplifier (LNA and PA), 20 MHz to 50 GHz
- N9042B - P5L - Preamplifier (LNA and PA), 20 MHz to 50 GHz (limited LNA/PA simultaneous use above 43.5 GHz)
- N9042B - EA3 - Electronic attenuator, 2 Hz to 3.6 GHz, 0 to 24 dB in 1 dB steps
- N9042B - B25 - 25 MHz analysis bandwidth
- N9042B - B40 - 40 MHz analysis bandwidth
- N9042B - B2X - 255 MHz analysis bandwidth
- N9042B - R10 - 1 GHz analysis bandwidth
- N9042B - R15 - 1.5 GHz analysis bandwidth
- N9042B - R20 - 2 GHz analysis bandwidth
- N9042B - R40 - 4 GHz analysis bandwidth
- N9042B - EDC - 11 GHz analysis bandwidth (requires option CRW)
- N9042B - NF2 - Noise Floor Extension
- N9042B - EXM - External mixing
- N9042B - EXW - External frequency extender, wide bandwidth (interface for use with V3050A)
- N9042B - CRW - Wide IF output (enables wide IF out connector)
- N9042B - CR3 - AUX IF output, second IF output (included as standard)
- N9042B - CRP - AUX IF output, programmable (swept spectrum analysis or IF path ≤ 40 MHz)
- N9042B - ALV - AUX IF output, Fast Log Video (IF path ≤ 40 MHz)
- N9042B - YAV - Y-axis video output
- N9042B - FS1 - Fast sweep
- N9042B - FS2 - Fast sweep
- N9042B - PC8 - CPU option (Intel i7, VGA and Mini DisplayPort monitor outputs, USB 3.0/2.0, PCIe X4)
- N9042B - PCA - CPU option (Intel i7, DisplayPort monitor output, USB 3.1, Thunderbolt, 10G LAN)
- N9042B - N9042RTAB - Real-time Spectrum Analyzer (RTSA), 1 GHz max real-time analysis bandwidth, 15.4 µs minimum POI
- N9042B - N9042RTBB - Real-time Spectrum Analyzer (RTSA), 1 GHz max real-time analysis bandwidth, 227 ns minimum POI
- N9042B - N9042RTEB - Real-time Spectrum Analyzer (RTSA), 2 GHz max real-time analysis bandwidth, 15.4 µs minimum POI
- N9042B - N9042RTFB - Real-time Spectrum Analyzer (RTSA), 2 GHz max real-time analysis bandwidth, 227 ns minimum POI
- N9042B - N90EMEMCB - EMC measurement application (adds quasi-peak, EMI average detectors; CISPR and MIL-STD bandwidths)
- N9042B - N6141EM0E - EMC measurement application (adds quasi-peak, EMI average detectors; CISPR and MIL-STD bandwidths)
- N9042B - IVL - Individual validated license (for export to restricted countries)
| Model | N9042B |
|---|

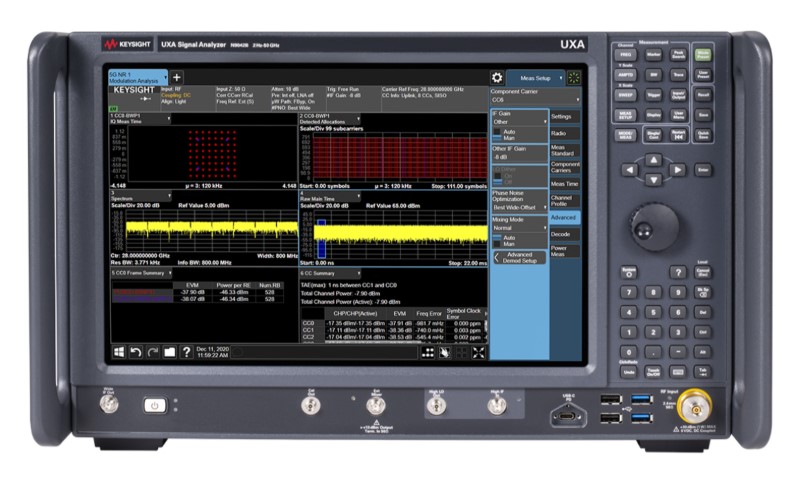

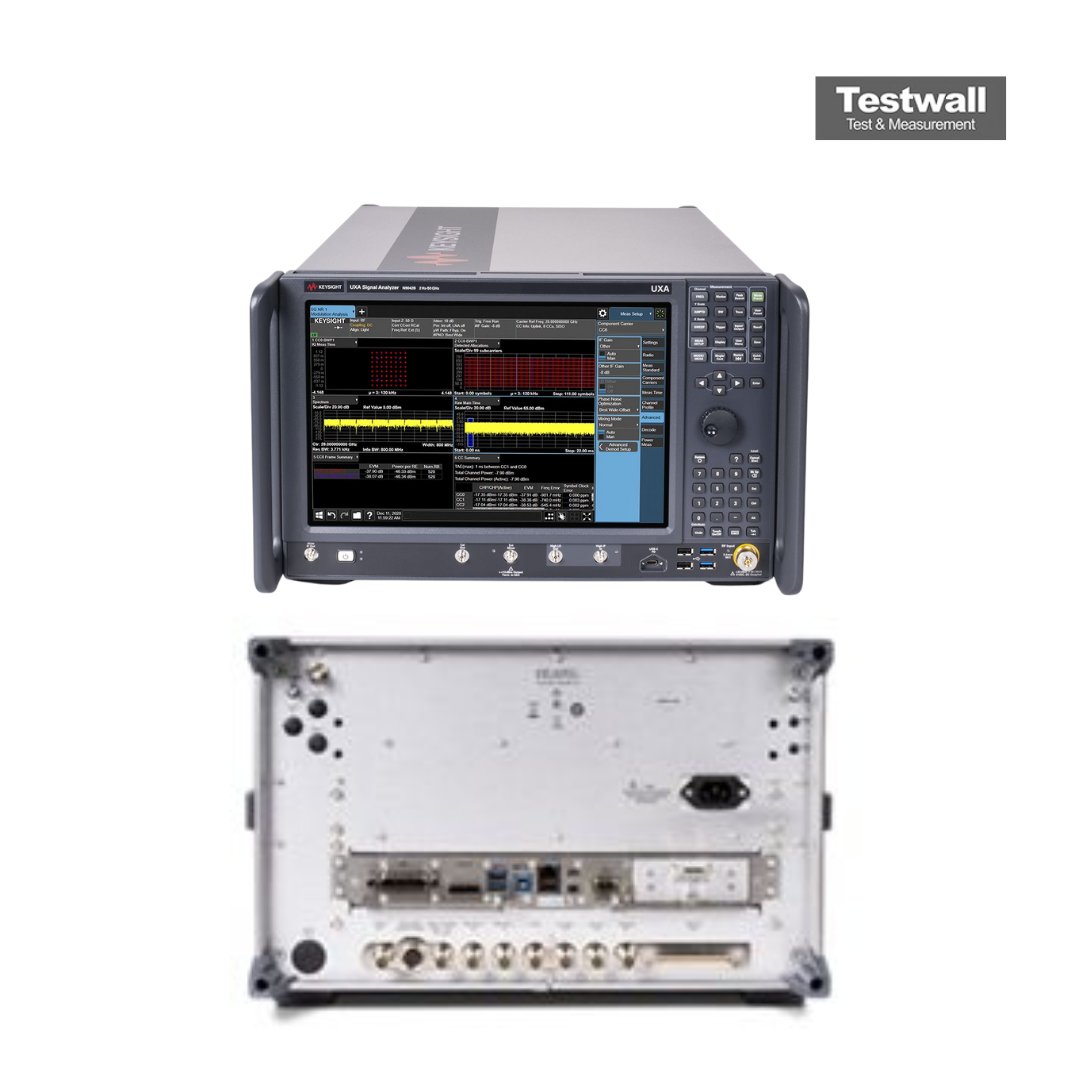

Keysight (Agilent) N9042B UXA Signal Analyzer
The new Keysight (Agilent) N9042B UXA Signal Analyzer provides the industry's widest analysis bandwidth and deepest dynamic range to solve most difficult mmWave challenges with it's tight design margins and timelines, complex modulation, and stringent standards. You can test the real performance of your millimeter-wave (mmWave) innovations in 5G, satellite, radar, and more with this N9042B UXA X-Series signal analyzer and measurement applications.
The Keysight (Agilent) N9042B UXA Signal Analyzer will help you test the true performance of your transmitter designs with the industry's best residual error vector magnitude (EVM) and 5G NR signal analysis software suite to perform transmitter downlink and uplink measurements with one-button simplicity. The UXA also provides the highest unbanded, preselected frequency range to help you characterize your most sophisticated satellite designs. In an RF digital twin setup, Keysight N9042B UXA signal analyzers provide an efficient way of creating and enhancing component behavioral models.
Specifications for the Keysight (Agilent) N9042B UXA Signal Analyzer Include:
| Frequency | 2 Hz to 50 GHz, with V3050A 110 GHz |
| Displayed Average Noise Level (DANL) | -174 dBm at 1 GHz |
| Maximum Real-Time Bandwidth | Up to 2 GHz |
| Maximum Analysis Bandwidth | 4 GHz |
