Keysight (Agilent) RP7982A
| Atributo | Valor |
|---|---|
| Tipo de sonda | Sonda de corriente de CA/CC |
| Rango de corriente máxima | 30 A RMS / 50 A pico |
| Ancho de banda | DC a 100 MHz |
| Factor de escala | 100 mV/A |
| Impedancia de entrada del osciloscopio | 1 MΩ |
| Diámetro máximo del conductor | 5 mm |
| Alimentación requerida | Fuente de alimentación externa (incluida) |
| Compatibilidad | Osciloscopios Keysight con entrada de 1 MΩ |
| Conector de salida | BNC |
| Temperatura de funcionamiento | 0 °C a 55 °C |
Keysight (Agilent) RP7982A Options:
- RP7982A - UK6 - Commercial calibration with test results data
| Model | RP7982A |
|---|

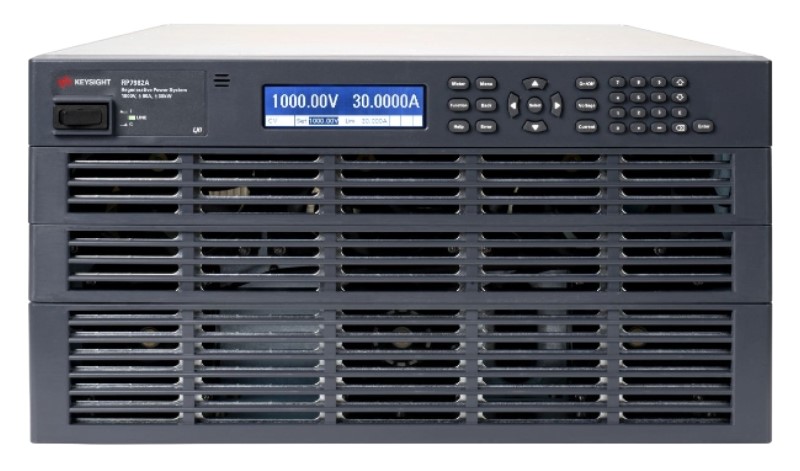

KEYSIGHT RP7982A Regenerative DC Power Supply
The Keysight RP7982A a bi-directional, regenerative DC power supply designed for testing high-voltage, high-power solutions in the Hybrid-Electric/Electric Vehicle (HEV/EV) market. With a compact 5U-high package, the RP7982A delivers up to 1000 V, 90 A, 30 kW. It operates in two-quadrant mode, serving as both a power source and regenerative electronic load. The regenerative capability allows energy to be cleanly returned to the grid, reducing costs associated with energy consumption and cooling.
The RP7982A features fast output speed, sub-millisecond command processing time, and the ability to create up to 600 kW power or loading through parallel connection. Additionally, it offers advanced measurement capabilities, battery emulation, and the ability to simulate power transients for comprehensive testing. The RP7982A supports paralleling with up to 20 units, providing flexibility and scalability in test setups. Standard interfaces include GPIB, Ethernet/LAN, and USB 2.0, making it versatile and easily controllable. Overall, the RP7982A is a powerful and efficient tool for accelerating test throughput and optimizing inverter MPPT algorithms in the evolving field of electric vehicle technology.
Specifications for the KEYSIGHT RP7982A Regenerative DC Power Supply Include:
| Voltage | 1000 V |
| Current | 90 A |
| Total Power | 30 kW |
| Voltage Accuracy | 0.03% + 75 mV |
