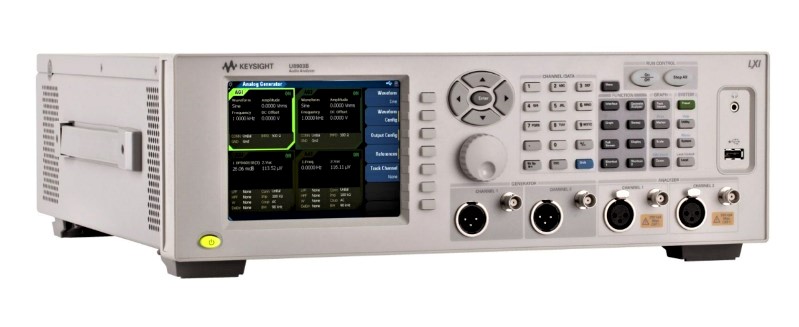

Keysight (Agilent) U8903B
| Atributo | Valor |
|---|---|
| Rango de frecuencia | 10 Hz – 100 kHz |
| Rango de nivel de entrada | 100 mV – 120 V RMS |
| Distorsión armónica total (THD+N) | -108 dB (0,0004%) |
| Relación señal-ruido (SNR) | Hasta 120 dB |
| Impedancia de entrada | 10 kΩ / 100 kΩ seleccionable |
| Nivel de salida | 1 mV – 12 V RMS (con carga de 600 Ω) |
| Número de canales | 2 canales de entrada analógica |
| Interfaz de comunicación | USB, LAN (LXI), GPIB (opcional) |
| Pantalla | Pantalla LCD en color de 4,3 pulgadas |
| Alimentación eléctrica | 100 – 240 V CA, 50/60 Hz |
Keysight (Agilent) U8903B Options:
- U8903B - STD - Performance audio analyzer, 2 channels
- U8903B - AN4 - Analog analyzer, 4 channels
- U8903B - AN8 - Analog analyzer, 8 channels
- U8903B - DGT - Digital audio card
- U8903B - BLU - Bluetooth card
- U8903B - BL2 - Bluetooth card, secondary option slot
- U8903B - 201 - Performance audio analyzer with 4 analog analyzer channels, digital audio (AES3/SPDIF and DSI digital audio). This bundle option is suitable for consumer audio or automotive infotainment system test.
- U8903B - 209 - Performance audio analyzer; 2 channels with 50 ohm impedance and N3431A. This bundle option is for military customer.
- U8903B - 210 - Performance audio analyzer with 4 analog analyzer channels, digital audio (AES3/SPDIF and DSI digital audio) and Bluetooth. This bundle option is suitable for consumer audio or automotive infotainment system test with Bluetooth devices.
- U8903B - 211 - Performance audio analyzer; 2 channels with 50 ohm impedance, N3431A and Bluetooth. This bundle option is for military customers.
- U8903B - 212 - Performance audio analyzer; 2 channels with 50 ohm impedance. This bundle option is suitable for consumer audio test.
- N3431A - Wide bandwidth option –1.5 MHz (fixed perpetual license)
- N3433A - POLQA and PESQ measurement software (fixed perpetual license)
- U8903B - 1A7 - ISO17025 compliant calibration with test data
- U8903B - A6J - ANSI Z540 compliant calibration with test data
| Model | U8903B |
|---|

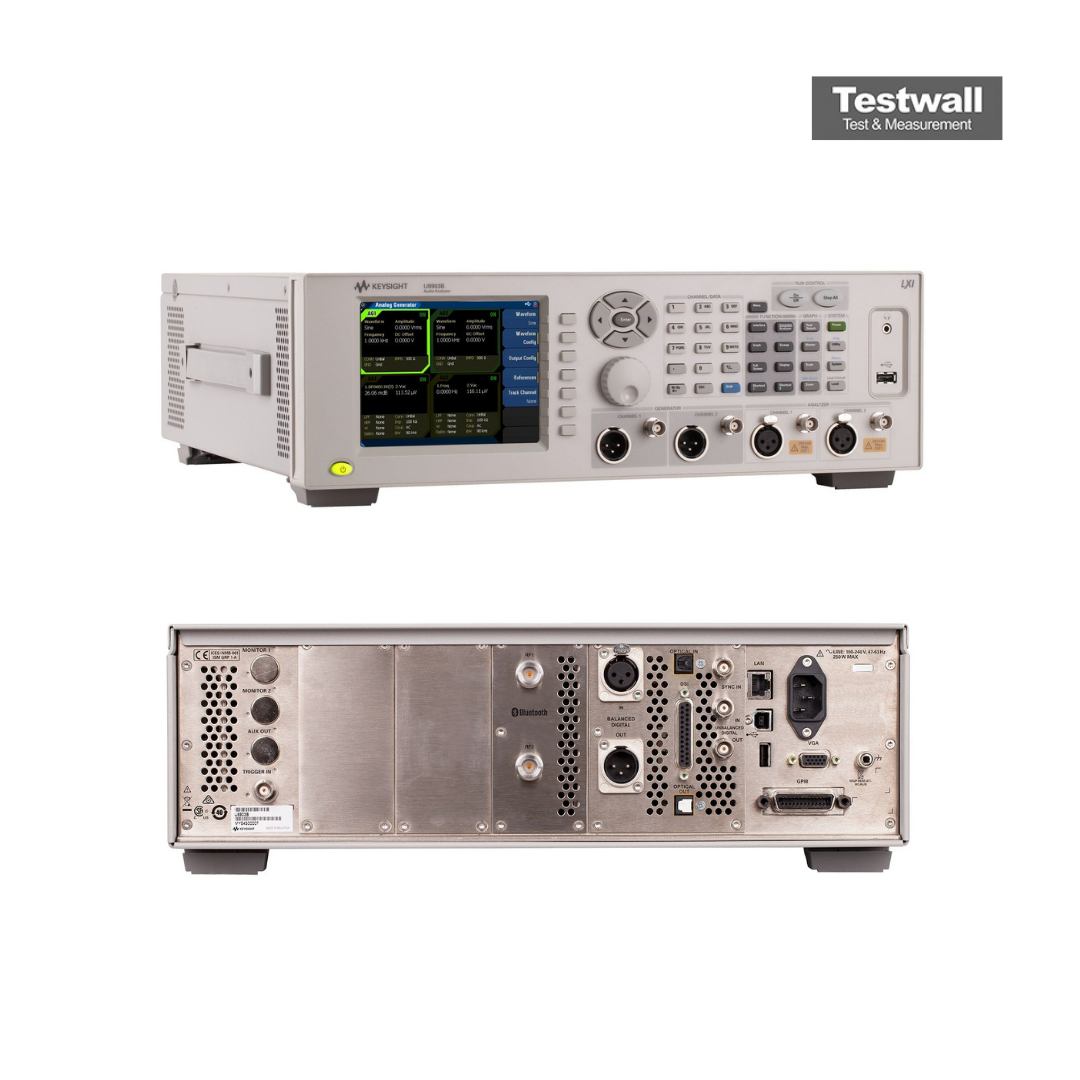

Keysight (Agilent) U8903B Performance Audio Analyzer
Make multi-functional and higher performance audio measurements with the Keysight U8903B audio analyzer. With extremely low residual distortion of < -110 dB, the U8903B allows you to measure the most demanding audio devices with high accuracy. Perform audio measurements via a Bluetooth link with the new Bluetooth option, and make the highest resolution two-channel measurements available when you expand your bandwidth to 1.5 MHz. Ensure the quality of your Bluetooth link and easily troubleshoot connection issues with two functions designed for the Bluetooth option: the received power indicator and bit error rate measurement.
The Keysight U8903B audio analyzer comes with local loopback capability to provide fast, accurate loopback testing of Bluetooth chipsets, modules and devices. The loopback capability allows the uplink signal to be looped back at the U8903B and sent to the DUT, ensuring that both the uplink and downlink are tested at the same time. Without this feature, engineers will need to test the uplink and downlink separately, which would double the test time and require more wiring. The U8903B audio analyzer can be configured to 4 or 8 analog analyzer channels. The instrument is capable of simultaneous measurement, on all channels, making the Keysight U8903B the ideal choice for multichannel systems such as 5.1 or 7.1 surround sound.
Specifications for the Keysight (Agilent) U8903B Performance Audio Analyzer Include:
| Maximum Analysis Bandwidth | 1.5 MHz |
| Overall Amplitude Accuracy | ±0.03 dB |
| Number of Channels | 2, 4 or 8 |
