Keysight (Agilent)

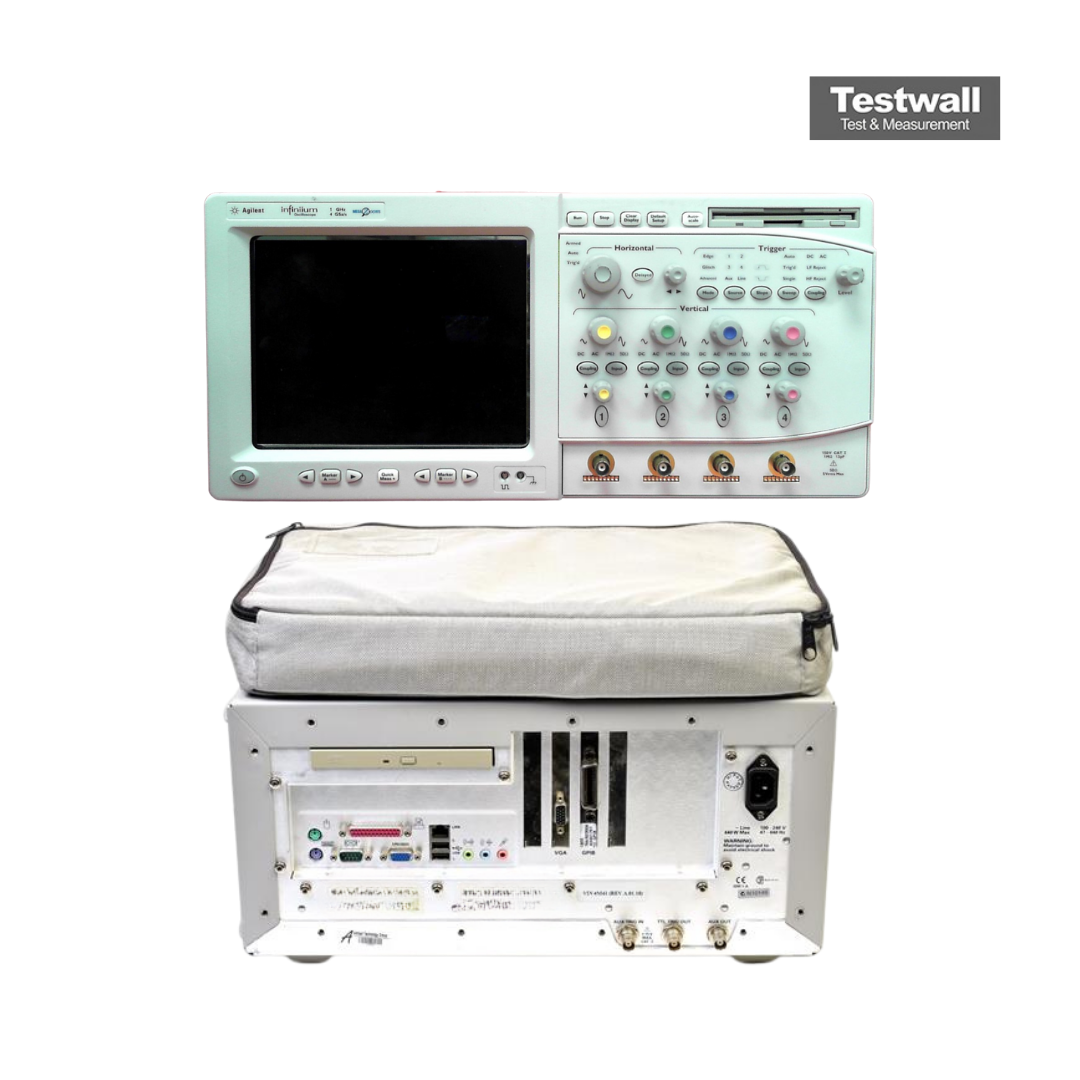

Keysight Technologies 54832B
1 GHz Ancho de banda
4 canales analógicos Canales
4 GSa/s Tasa de muestreo máxima
Hasta 64 Mpts por canal Profundidad de memoria
Pantalla de alta resolución de 12,1 pulgadas XGA Pantalla
| Atributo | Valor |
|---|---|
| Ancho de banda | 1 GHz |
| Canales | 4 canales analógicos |
| Tasa de muestreo máxima | 4 GSa/s |
| Profundidad de memoria | Hasta 64 Mpts por canal |
| Pantalla | Pantalla de alta resolución de 12,1 pulgadas XGA |
| Canales lógicos digitales | 16 canales lógicos (serie MSO) |
| Resolución vertical | 8 bits |
| Rango de escala de tiempo | 200 ps/div a 20 s/div |
| Interfaz y conectividad | LAN, GPIB, USB |
| Sistema operativo | Windows XP integrado |
Keysight Technologies 54832B Options:
- 54832B - 040 - 8 Mpts on half the acquisition channels (interleaved) or 4 Mpts on each acquisition channel
- 54832B - 080 - 16 Mpts on half the acquisition channels (interleaved) or 8 Mpts on each acquisition channel
- 54832B - 160 - 32 Mpts on half the acquisition channels (interleaved) or 16 Mpts on each acquisition channel
- 54832B - 320 - 64 Mpts on half the acquisition channels (interleaved) or 32 Mpts on each acquisition channel
- 54832B - 640 - 128 Mpts on half the acquisition channels (interleaved) or 64 Mpts on each acquisition channel
- 54832B - 001 - Add two 1165A, 10:1 passive probes
- 54832B - 002 - Add one 1162A 1:1 passive probe
- 54832B - 004 - Add four 1165A, 10:1 passive probes
- 54832B - 005 - Add one 54826-68701 logic probe kit
- 54832B - 007 - Add one Wedge adapter kit (1 each 3/8/16 signals, 0.5 mm)
- 54832B - 008 - Add one 1153A 200 MHz differential probe
- 54832B - 011 - Add one 1155A 2 Channel, 750 MHz active probe
- 54832B - 012 - Add one 1156A 1.5 GHz active probe
- 54832B - 016 (E2654A) - EZ-Probe Positioner: includes base, joystick, and articulating arm
- 54832B - 017 - ≥20 GB removable hard disk drive; replaces ≥20 GB internal hard disk with a ≥20 GB removable hard disk
- 54832B - 006 (E2699A) - My Infiniium Integration Package Option
- 54832B - 003 (N5384A) - High-Speed Serial Data Analysis Software Option
- 54832B - 021 (N5391A) - Low-Speed Serial Data Analysis Software Option
- 54832B - 015 (E2681A) - EZJIT Jitter Analysis Software Option
- 54832B - E2625A - Communication Mask Test Kit Option
- 54832B - E2683A - USB 2.0 Test Option (for 54830B/D Series and 54833A with software version A.03.xx or higher)
- 54832B - E2682A - VoiceControl Option (for 54830B/D Series and 54833A with software version A.03.xx or higher)
- 54832B - 1CM (E2609B) - Add one rackmount kit
- 54832B - 1184A - Testmobile with keyboard and mouse tray, drawer for accessories
- 54832B - E5850A - Time-correlation fixture, link Infiniium scope to logic analyzer
- 54832B - N5383A - Infiniium Performance Upgrade Kit (upgrade system software from A.02.xx to A.03.xx or higher)
- 54832B - OB3 - Printed service manual
- 54832B - OBF - Printed programmer's manual
- 54832B - AB2 - Printed user's quick start guide in simplified Chinese
- 54832B - ABJ - Printed user's quick start guide in Japanese
- 54832B - A6J - ANSI Z540-compliant calibration
| Model | 54832B |
|---|
El Keysight Technologies 54832B es un osciloscopio Infiniium de nueva generación con ancho de banda de 1 GHz y velocidad de muestreo de hasta 4 GSa/s, que ofrece actualizaciones rápidas y memoria profunda de hasta 128 Mpts.
Ideal para el análisis de datos digitales y en serie de alta velocidad, cuenta con cuatro canales, múltiples opciones de software y control remoto vía web.
Testwall puede suministrar el Keysight Technologies 54832B usado, completamente probado. Con soporte experto y entrega global, Testwall asegura instrumentación de alto rendimiento con fiabilidad y calidad de servicio inigualables. Contáctenos para calibración o reparación del Keysight Technologies 54832B.
