Keysight (Agilent)

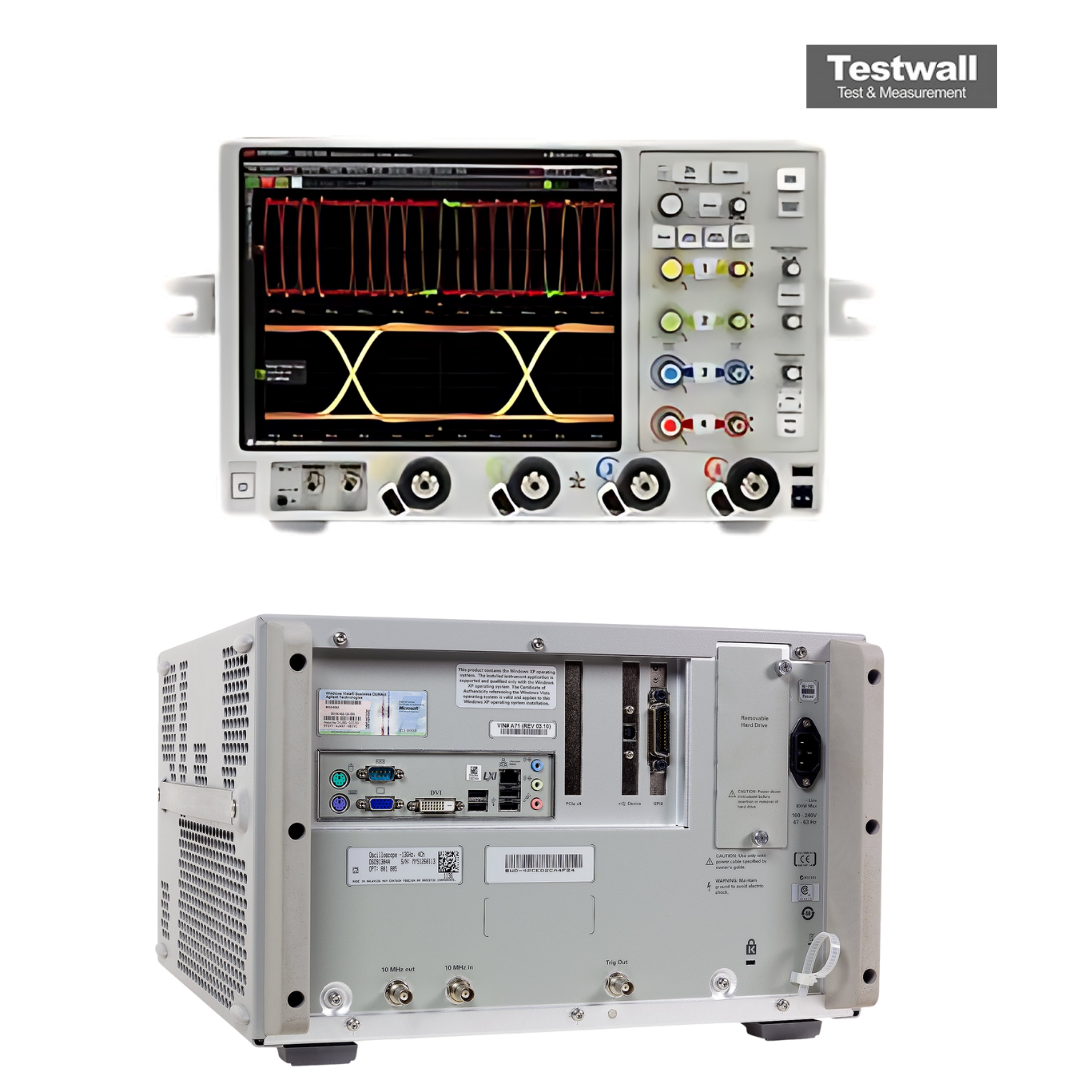

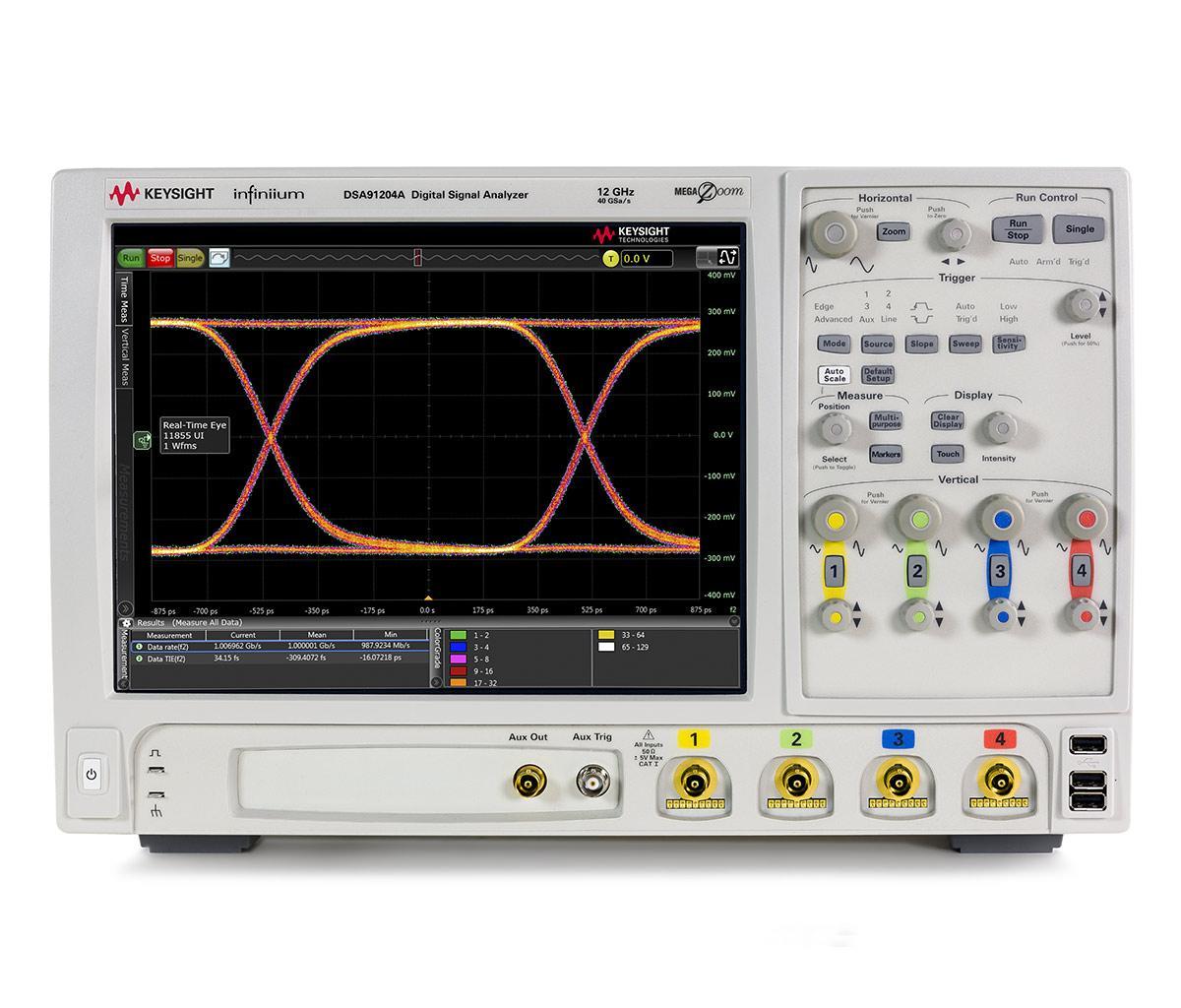

Keysight Technologies DSA91204A
4 Ch 12 GHz Digital Signal Analyzer
12 GHz Ancho de banda
4 canales Número de canales
40 GSa/s Tasa de muestreo máxima
2 Gpuntos (estándar), hasta 64 Gpuntos (opcional) Profundidad de memoria
8 bits (hasta 12 bits en modo de alta resolución) Resolución vertical
| Atributo | Valor |
|---|---|
| Ancho de banda | 12 GHz |
| Número de canales | 4 canales |
| Tasa de muestreo máxima | 40 GSa/s |
| Profundidad de memoria | 2 Gpuntos (estándar), hasta 64 Gpuntos (opcional) |
| Resolución vertical | 8 bits (hasta 12 bits en modo de alta resolución) |
| Ruido del sistema | menos de 1% de la escala completa |
| Pantalla | Pantalla táctil de 15 pulgadas de alta resolución |
| Impedancia de entrada | 50 Ω / 1 MΩ |
| Rango de temperatura de funcionamiento | 0 °C a 40 °C |
| Interfaz de conectividad | USB, LAN (LXI), GPIB (opcional) |
Keysight Technologies DSA91204A Options:
- DSA91204A - 821 - Precision BNC to SMA adaptors (qty 2)
- DSA91204A - 801 - 80 GBytes or greater hard disk drive - Replaces internal hard disk drive with a removable hard disk drive
- DSA91204A - 803 - Additional 2 GByte CPU Memory (4 GByte total)
- DSA91204A - 805 - GPIB card
- DSA91204A - 807 - High Impedance Adapter (includes one 10073C passive probe)
- DSA91204A - 1CM - Rackmount Kit
- DSA91204A - 002 - EZJIT Jitter Analysis Software
- DSA91204A - 003 - High Speed Serial Data Analysis Software
- DSA91204A - 004 - EZJIT Plus Jitter Analysis Software
- DSA91204A - 005 - Noise Reduction and Bandwidth Control
- DSA91204A - 006 - My Infiniium Integration Package
- DSA91204A - 007 - I2C and SPI Low-speed Data Analysis
- DSA91204A - 008 - CAN Serial Data Analysis Software
- DSA91204A - 009 - InfiniiScan Event Identification Software
- DSA91204A - 010 - Infiniium User Defined Function Software
- DSA91204A - 011 - Infiniium Application Remote Program Interface Software
- DSA91204A - 021 - Ethernet Electrical Performance Validation and Compliance Software
- DSA91204A - 022 - PCI Express Electrical Performance Validation and Compliance Software
- DSA91204A - 023 - HDMI Electrical Performance Validation and Compliance Software
- DSA91204A - 024 - Fully Buffered DIMM Validation and Compliance Software
- DSA91204A - 025 - Fibre Channel Validation and Compliance Software
- DSA91204A - 026 - Serial ATA Electrical Performance Validation and Compliance Software
- DSA91204A - 027 - Serial Attached SCSI Electrical Performance Validation and Compliance Software
- DSA91204A - 028 - DisplayPort Validation and Compliance Software
- DSA91204A - 029 - USB 2.0 Validation and Compliance Software
- DSA91204A - 030 - XAUI Electrical Validation and Compliance Software with 10GBASE-CX4, CPRI, OBSAI, and Serial RapidIO Support
- DSA91204A - 031 - DDR1 Validation and Compliance Software
- DSA91204A - 032 - DDR2 Validation and Compliance Software
- DSA91204A - 033 - DDR3 Validation and Compliance Software
- DSA91204A - A6J - ANSI Z540 compliant calibration
- DSA91204A - 1A7 - ISO17025 compliant calibration
- DSA91204A - 20M - Acquisition memory upgrade 10 MPts to 20 MPts
- DSA91204A - 50M - Acquisition memory upgrade 20 MPts to 50 MPts
- DSA91204A - 100 - Acquisition memory upgrade 50 MPts to 100 MPts
- DSA91204A - 200 - Acquisition memory upgrade 100 MPts to 200 MPts
- DSA91204A - 500 - Acquisition memory upgrade 200 MPts to 500 MPts
- DSA91204A - 01G - Acquisition memory upgrade 500 MPts to 1 GPts
| Model | DSA91204A |
|---|
El Keysight (Agilent) DSA91204A es un osciloscopio Infiniium de 12 GHz con 4 canales, muestreo 40 GSa/s, para señales rápidas y verificación de conformidad.
Memoria de hasta 1 Gpt y pantalla táctil de 12.1'' con herramientas completas de análisis.
Testwall puede suministrar el Keysight (Agilent) DSA91204A usado, completamente probado. Contáctenos para calibración o reparación.
