Keysight (Agilent)

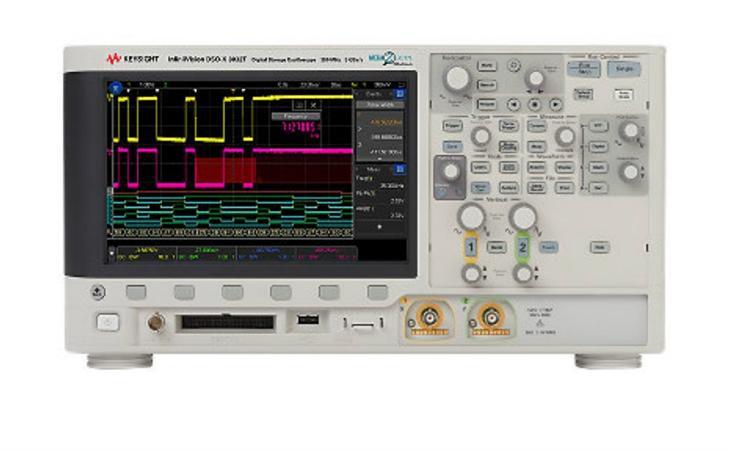

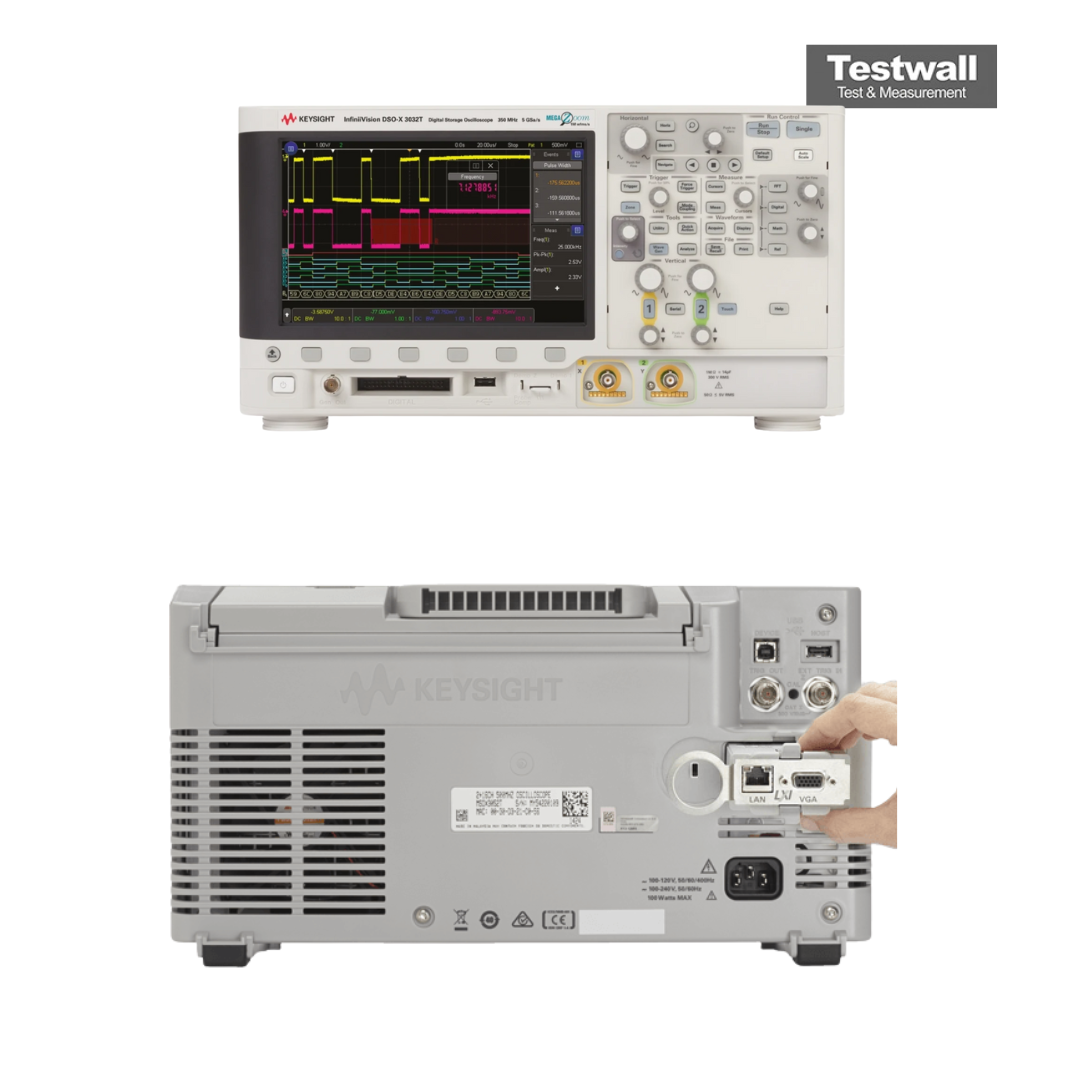

Keysight Technologies DSOX3032T
350 MHz, 2 Analog Channels Oscilloscope
2 canales analógicos Número de canales
300 MHz Ancho de banda
2 GSa/s Frecuencia de muestreo
4 Mpts (estándar) Profundidad de memoria
Pantalla táctil capacitiva WVGA de 8,5 pulgadas Pantalla
| Atributo | Valor |
|---|---|
| Número de canales | 2 canales analógicos |
| Ancho de banda | 300 MHz |
| Frecuencia de muestreo | 2 GSa/s |
| Profundidad de memoria | 4 Mpts (estándar) |
| Pantalla | Pantalla táctil capacitiva WVGA de 8,5 pulgadas |
| Canales digitales | 16 canales digitales (compatible con sonda lógica) |
| Tasa de actualización de forma de onda | 1.000.000 formas de onda por segundo |
| Rango de escala vertical | 1 mV/div a 5 V/div |
| Rango de base de tiempos | 1 ns/div a 50 s/div |
| Conectividad | USB, LAN (LXI), salida auxiliar y disparador externo |
Keysight (Agilent) DSOX3032T Options:
- DSOX3032T - DSOXT3MSO - MSO upgrade: add 16 digital timing channels (N2756A MSO cable delivered separately)
- DSOX3032T - DSOX3EMBD - Embedded serial triggering and analysis (I²C, SPI)
- DSOX3032T - DSOX3COMP - Computer serial triggering and analysis (RS232/UART)
- DSOX3032T - DSOXT3SENSOR - Sensor triggering and analysis (SENT)
- DSOX3032T - DSOXT3AUTO - Automotive serial triggering and analysis (CAN/CAN-FD/CAN-dbc/LIN/LIN symbolic)
- DSOX3032T - DSOX3FLEX - FlexRay serial triggering and analysis
- DSOX3032T - DSOX3AUDIO - Audio serial triggering and analysis (I²S)
- DSOX3032T - DSOX3AERO - MIL-STD 1553 and ARINC 429 serial triggering and analysis
- DSOX3032T - DSOX3WAVEGEN - WaveGen 20 MHz arbitrary/function generator
- DSOX3032T - DSOXT3DVMCTR - Integrated digital voltmeter and 8-digit counter
- DSOX3032T - DSOX3PWR - Power analysis application
- DSOX3032T - DSOX3MASK - Mask limit testing
- DSOX3032T - DSOX3VID - Enhanced video/TV application package
- DSOX3032T - DSOXEDK - Education and training kit
- DSOX3032T - DSOXT3APPBNDL - SW application bundle license (includes DSOX3AERO, DSOX3AUDIO, DSOXT3AUTO, DSOX3COMP, DSOX3EMBD, DSOX3FLEX, DSOX3MASK, DSOX3PWR, DSOXT3SENSOR, DSOX3VID, DSOX3WAVEGEN, DSOXT3DVMCTR, DSOXEDK)
- DSOX3032T - DSOXT3B3T52 - License only 350MHz to 500MHz upgrade, 2ch
- DSOX3032T - DSOXT3B3T102U - Service center 350MHz to 1 GHz upgrade, 2ch
- DSOX3032T - DSOXT3B5T102U - Service center 500MHz to 1 GHz upgrade, 2ch
- DSOX3032T - DSOXLAN - LAN/VGA connection module
- DSOX3032T - DSOXGPIB - GPIB connection module
| Model | DSOX3032T |
|---|
El Keysight (Agilent) DSOX3032T ofrece un ancho de banda de 350 MHz en 2 canales analógicos, 1 Mpts de profundidad de memoria y cálculo en tiempo real con decodificación de bus serie.
Con interfaz táctil personalizable y capacidad de actualización a MSO con 16 canales digitales.
Testwall puede suministrar el Keysight (Agilent) DSOX3032T usado, completamente probado. Con soporte experto y entrega mundial, Testwall garantiza instrumentos de alto rendimiento con fiabilidad y calidad de servicio inigualables. Contáctenos para calibración o reparación del Keysight (Agilent) DSOX3032T.
