Keysight (Agilent)

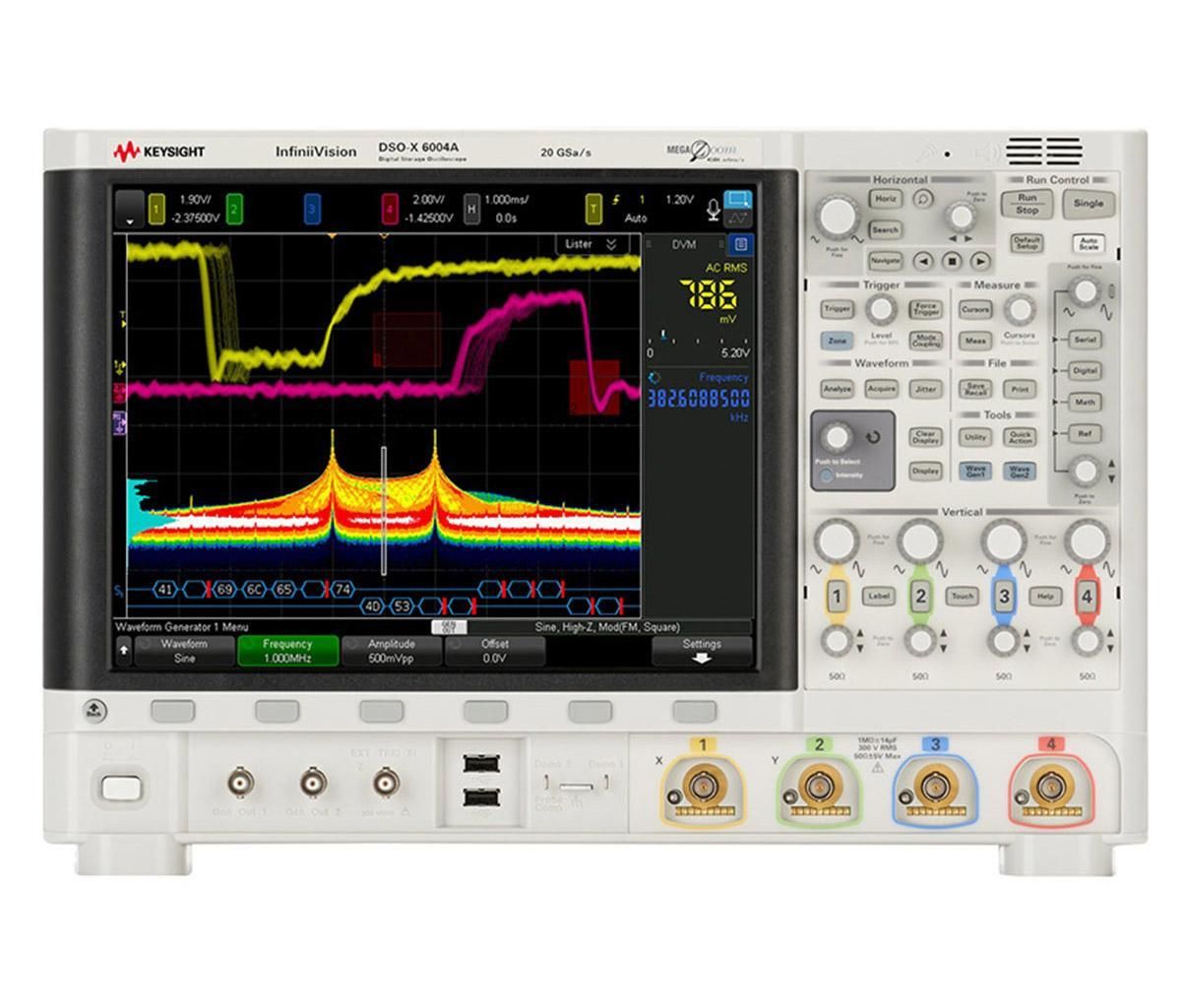

Keysight Technologies DSOX6004A
4 Ch 1 GHz Oscilloscope
4 canales analógicos Número de canales
1 GHz Ancho de banda
5 GSa/s (entrelazado: 10 GSa/s) Frecuencia de muestreo
4 Mpuntos estándar (hasta 16 Mpuntos con opción) Profundidad de memoria
8 bits (hasta 12 bits en modo de alta resolución) Resolución vertical
| Atributo | Valor |
|---|---|
| Número de canales | 4 canales analógicos |
| Ancho de banda | 1 GHz |
| Frecuencia de muestreo | 5 GSa/s (entrelazado: 10 GSa/s) |
| Profundidad de memoria | 4 Mpuntos estándar (hasta 16 Mpuntos con opción) |
| Resolución vertical | 8 bits (hasta 12 bits en modo de alta resolución) |
| Tamaño de pantalla | Pantalla táctil capacitiva de 12,1 pulgadas WXGA |
| Tasa de actualización de formas de onda | Hasta 1.000.000 formas de onda por segundo |
| Sensibilidad vertical | 1 mV/div a 5 V/div |
| Base de tiempos | 200 ps/div a 20 s/div |
| Conectividad | USB, LAN (LXI), GPIB (opcional), salida VGA |
Keysight Technologies DSOX6004A Options:
- DSOX6004A - DSOX6B10T254BW - 2.5 GHz bandwidth upgrade for 4 channel models
- DSOX6004A - DSOX6B10T404BW - 4 GHz bandwidth upgrade for 4 channel models
- DSOX6004A - DSOX6B10T604BW - 6 GHz bandwidth upgrade for 4 channel models
- DSOX6004A - DSOX6EMBD - Embedded serial triggering and analysis (I²C, SPI)
- DSOX6004A - DSOX6COMP - Computer serial triggering and analysis (RS232/UART)
- DSOX6004A - DSOX6USBFL - USB 2.0 full-/low-speed serial decode and triggering
- DSOX6004A - DSOX6USBH - USB 2.0 hi-speed serial decode and triggering
- DSOX6004A - DSOX6AUTO - Automotive serial triggering and analysis (CAN/LIN)
- DSOX6004A - DSOX6FLEX - FlexRay serial triggering and analysis
- DSOX6004A - DSOX6AUDIO - Audio serial triggering and analysis (I²S)
- DSOX6004A - DSOX6AERO - MIL-STD 1553 and ARINC 429 serial triggering and analysis
- DSOX6004A - DSOX6WAVEGEN2 - Dual-channel WaveGen 20-MHz AWG
- DSOX6004A - DSOX6JITTER - Jitter and real-time eye diagram analysis
- DSOX6004A - DSOXDVMCTR - Integrated digital voltmeter and 10-digit counter
- DSOX6004A - DSOX6PWR - Power analysis application
- DSOX6004A - DSOX6MASK - Mask limit testing
- DSOX6004A - DSOX6USBSQ - USB 2.0 signal quality test
- DSOX6004A - DSOX6VID - Enhanced video/TV application package
- DSOX6004A - DSOX6FPGAX - FPGA dynamic probe option for Xilinx
- DSOX6004A - DSOX6MSO - InfiniiVision 6000 X-Series oscilloscope MSO upgrade
- DSOX6004A - DSOX6B25T404BW - 2.5 GHz to 4.0 GHz bandwidth upgrade, 4 ch, fixed perpetual license
- DSOX6004A - DSOX6B25T604BW - 2.5 GHz to 6.0 GHz bandwidth upgrade, 4 ch, fixed perpetual license
- DSOX6004A - DSOX6B40T604BW - 4.0 GHz to 6.0 GHz bandwidth upgrade, 4 ch, fixed perpetual license
- DSOX6004A - DSOXEDK - Education and training kit
- DSOX6004A - N8900A - Infiniium Offline oscilloscope analysis software
- DSOX6004A - 34840B - BenchVue software
| Model | DSOX6004A |
|---|
The Keysight (Agilent) MSO7104A provides 1 GHz analog bandwidth and 4 analog + 16 digital channels, 4 GSa/s sampling, and MegaZoom 8 Mpts memory with >100,000 wfms/s waveform update speed.
Supports extensive serial protocol decoding and FPGA debug, with 12.1″ XGA display for signal clarity.
Testwall can supply the used Keysight (Agilent) MSO7104A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) MSO7104A.
