Keysight (Agilent)

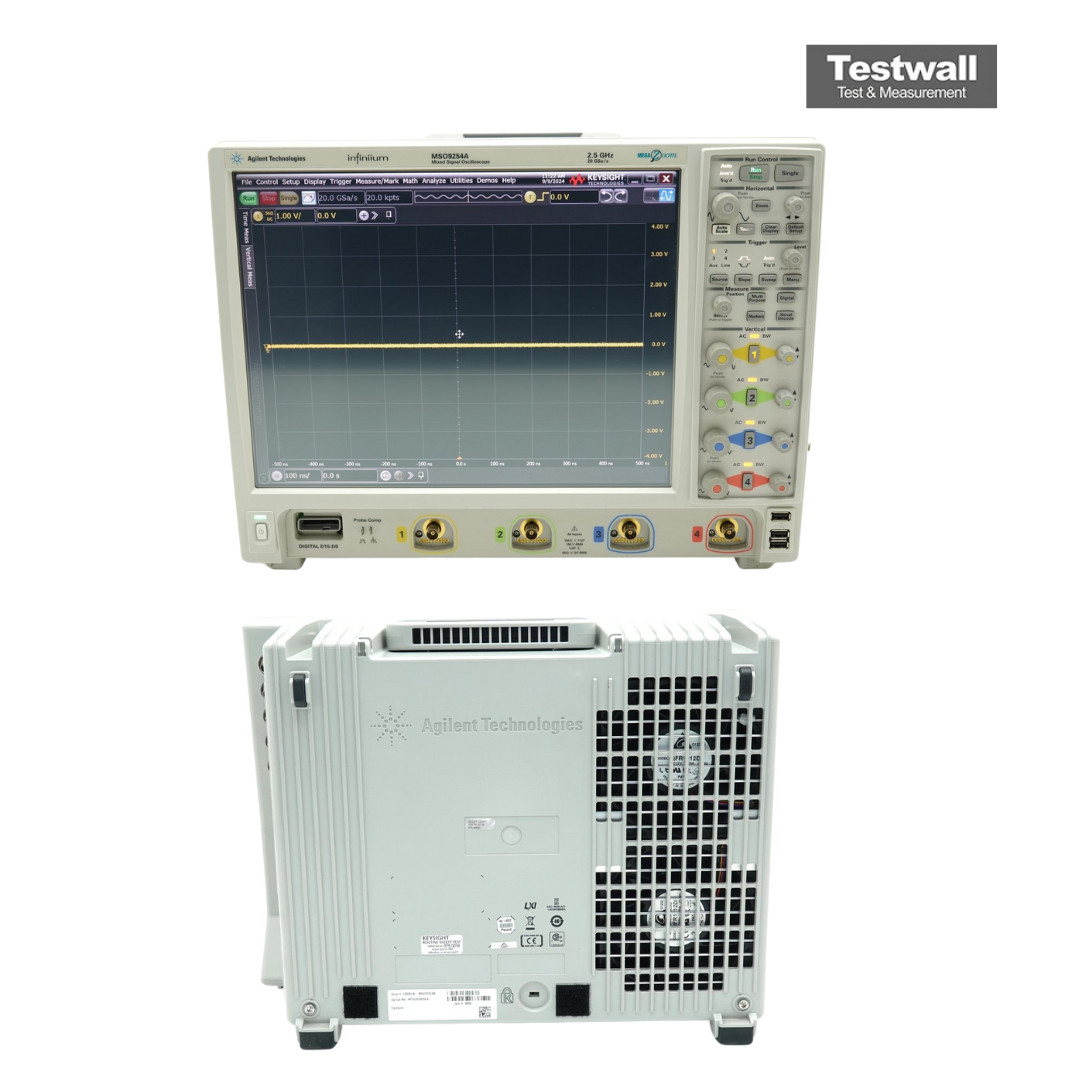

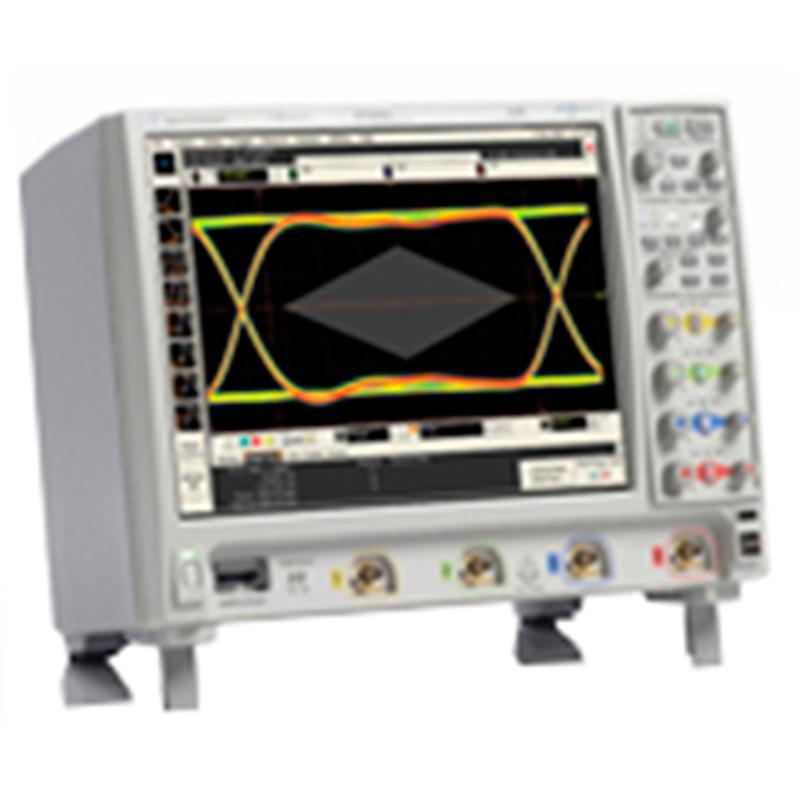

Keysight Technologies MSO9254A
2.5 GHz, 4+16 channel Mixed Signal Oscilloscope
2,5 GHz Ancho de banda
4 Canales analógicos
16 Canales digitales
20 GSa/s Frecuencia de muestreo máxima
1 Gpuntos (estándar) Profundidad de memoria
| Atributo | Valor |
|---|---|
| Ancho de banda | 2,5 GHz |
| Canales analógicos | 4 |
| Canales digitales | 16 |
| Frecuencia de muestreo máxima | 20 GSa/s |
| Profundidad de memoria | 1 Gpuntos (estándar) |
| Resolución vertical | 8 bits |
| Pantalla | 15 pulgadas XGA (1024 x 768) |
| Tasa de actualización de forma de onda | Hasta 1.000.000 formas de onda por segundo |
| Impedancia de entrada | 50 Ω / 1 MΩ |
| Rango de tensión de entrada máxima | ±30 V (pico) con impedancia de 1 MΩ |
Keysight Technologies MSO9254A Options:
- MSO9254A - 001 - RS-232/UART triggering and decode
- MSO9254A - 002 - EZJIT jitter analysis software
- MSO9254A - 003 - High-speed SDA and clock recovery
- MSO9254A - 004 - EZJIT Plus jitter analysis software
- MSO9254A - 005 - USB triggering and decode
- MSO9254A - 006 - PCI Express 1.1 triggering and decode
- MSO9254A - 007 - I²C/SPI triggering and decode
- MSO9254A - 008 - CAN, LIN, and FlexRay triggering and decode
- MSO9254A - 009 - InfiniiScan
- MSO9254A - 010 - User-defined function
- MSO9254A - 011 - Application remote programming interface
- MSO9254A - 012 - InfiniiSim signal equalization
- MSO9254A - 013 - InfiniiSim basic signal de-embedding
- MSO9254A - 014 - InfiniiSim advanced signal de-embedding
- MSO9254A - 015 - Power measurement application software
- MSO9254A - 016 - Xilinx FPGA dynamic probe
- MSO9254A - 017 - Altera FPGA dynamic probe
- MSO9254A - 018 - RS-232, SPI and I²C triggering and decode bundle
- MSO9254A - 019 - MIPI D-Phy Triggering and decode
- MSO9254A - 021 - Ethernet compliance application
- MSO9254A - 029 - USB2.0 compliance application
- MSO9254A - 031 - DDR1 validation application
- MSO9254A - 032 - DDR2 validation application
- MSO9254A - 033 - DDR3 validation application
- MSO9254A - 035 - MIPI D-Phy compliance application
- MSO9254A - 038 - SATA1 (1.5 GB/s triggering and decode)
- MSO9254A - 040 - User definable application
- MSO9254A - 061 - MATLAB basic
- MSO9254A - 062 - MATLAB advanced
- MSO9254A - 20M - Memory upgrade 20 Mpts/40 Mpts (4-channel/2-channel mode)
- MSO9254A - 50M - Memory upgrade 50 Mpts/100 Mpts (4-channel/2-channel mode)
- MSO9254A - 100 - Memory upgrade 100 Mpts/200 Mpts (4-channel/2-channel mode)
- MSO9254A - 200 - Memory upgrade 200 Mpts/400 Mpts (4-channel/2-channel mode)
- MSO9254A - 500 - Memory upgrade 500 Mpts/1 Gpts (4-channel/2-channel mode)
- MSO9254A - A6J - ANSI Z540 compliant calibration
- MSO9254A - 801 - Removable hard drive
- MSO9254A - 1CM - 9000 Series oscilloscope rackmount kit (8U)
| Model | MSO9254A |
|---|
The Keysight (Agilent) MSO9254A offers 2.5 GHz bandwidth, 10/20 GSa/s sample rate, and 4+16 channel configuration. Designed for deep signal analysis with Infiniium platform capability.
Supports protocol decode, compliance testing, jitter analysis, MATLAB integration, and FPGA probing.
Testwall can supply the used Keysight (Agilent) MSO9254A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) MSO9254A.
