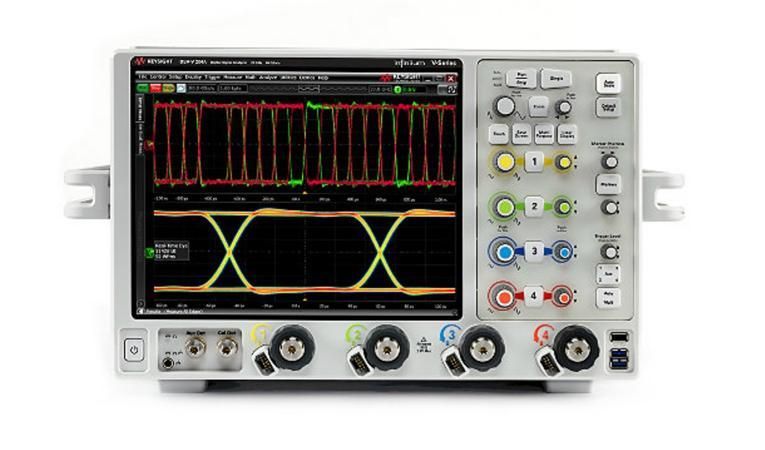

Keysight Technologies MSOV134A
| Atributo | Valor |
|---|---|
| Ancho de banda | 13 GHz |
| Canales analógicos | 4 |
| Tasa de muestreo máxima | 80 GSa/s |
| Memoria de adquisición máxima | 800 Mpts (estándar), hasta 2 Gpts (opcional) |
| Resolución vertical | 8 bits (hasta 10 bits en modo de alta resolución) |
| Canales digitales | 16 canales lógicos digitales (MSO) |
| Pantalla | Pantalla táctil capacitiva de 15,6 pulgadas con resolución 1920 x 1080 |
| Sistema operativo | Windows 10 |
| Conectividad | USB, LAN (LXI), GPIB (opcional), DisplayPort |
| Rango de temperatura de funcionamiento | 0 °C a 40 °C |
Keysight (Agilent) MSOV134A Options:
- MSOV134A - DSOV000-100 - 100 Mpts/channel memory upgrade
- MSOV134A - DSOV000-200 - 200 Mpts/channel memory upgrade
- MSOV134A - DSOV000-500 - 500 Mpts/channel memory upgrade
- MSOV134A - DSOV000-01G - 1 Gpts/channel memory upgrade
- MSOV134A - DSOV000-02G - 2 Gpts/channel memory upgrade
- MSOV134A - DSOV000-801 - 1 TB removable Solid State Drive (SSD) with Windows 7
- MSOV134A - DSOV000-805 - GPIB card-interface
- MSOV134A - DSOV000-808 - Performance verification and deskew fixture
- MSOV134A - MSOV000-DSA - DSA option for MSO models (comes standard with 100 Mpts/channel, EZJIT Complete and Serial Data Analysis)
- MSOV134A - DSOV000-A6J - ANSI Z540 compliant calibration
- MSOV134A - DSOV000-AMG - Calibration + uncertainties + guardbanding (accredited)
- MSOV134A - DSOV13GBW - Bandwidth upgrade to 13 GHz
- MSOV134A - DSOV16GBW - Bandwidth upgrade to 16 GHz
- MSOV134A - DSOV20GBWU - Bandwidth upgrade to 20 GHz
- MSOV134A - DSOV25GBWU - Bandwidth upgrade to 25 GHz
- MSOV134A - DSOV33GBWU - Bandwidth upgrade to 33 GHz
- MSOV134A - N2810A-100 - 50 Mpts/channel to 100 Mpts/channel memory upgrade
- MSOV134A - N2810A-200 - 100 Mpts/channel to 200 Mpts/channel memory upgrade
- MSOV134A - N2810A-500 - 200 Mpts/channel to 500 Mpts/channel memory upgrade
- MSOV134A - N2810A-01G - 500 Mpts/channel to 1 Gpts/channel memory upgrade
- MSOV134A - N2810A-02G - 1 Gpts/channel to 2 Gpts/channel memory upgrade
- MSOV134A - N2119AU - Hardware serial trigger upgrade
- MSOV134A - N2110A-500 - Additional 500 GB removable Solid State Drive (SSD) with Windows 7
- MSOV134A - N2110A-01T - Additional 1 TB removable Solid State Drive (SSD) with Windows 7
- MSOV134A - N2117A - Stack mount kit option for stacking two frames
- MSOV134A - N5470A - Rack mount kit
- MSOV134A - 82351B - GPIB card-interface
| Model | MSOV134A |
|---|
El osciloscopio Keysight (Agilent) MSOV134A Infiniium V-Series ofrece 13 GHz de ancho de banda analógico, 4 canales analógicos y 16 digitales, muestreo hasta 80 GSa/s y memoria de 2 Gpts. Bajo ruido (1.09 mVrms a 50 mV/div), jitter de 100 fs, ENOB >5.5 y SFDR >50 dBC. Incluye cable N2815A MSO/LA y decodificación DDR/LPDDR.
Ideal para analizar diseños de alta velocidad con herramientas avanzadas de jitter, disparo y protocolo, incluido PrecisionProbe. Incluye 50 Mpts de memoria.
Testwall puede suministrar el Keysight (Agilent) MSOV134A usado, completamente probado. Con soporte experto y entrega global, Testwall asegura instrumentos de alto rendimiento con fiabilidad y calidad de servicio incomparables. Contáctenos para calibración o reparación del Keysight (Agilent) MSOV134A
