Keysight (Agilent)

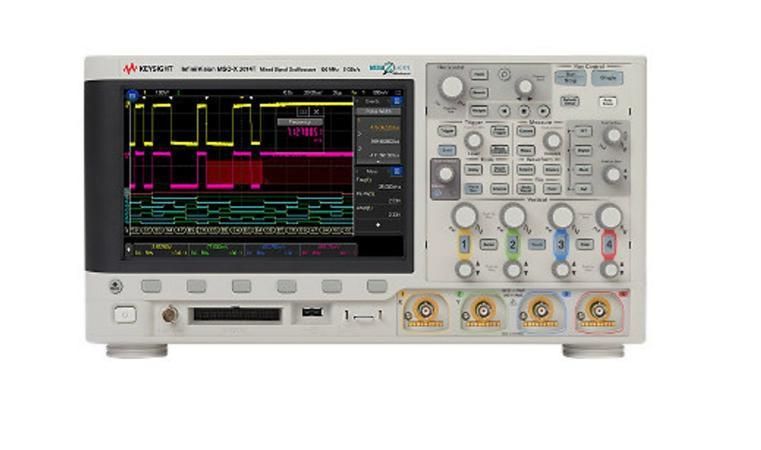

Keysight Technologies MSOX3014T
100 MHz, 4 Analog Channels, 16 Digital Channels
100 MHz Ancho de banda
4 Número de canales analógicos
16 Canales digitales
5 GSa/s Frecuencia de muestreo máxima
4 Mpuntos Profundidad de memoria
| Atributo | Valor |
|---|---|
| Ancho de banda | 100 MHz |
| Número de canales analógicos | 4 |
| Canales digitales | 16 |
| Frecuencia de muestreo máxima | 5 GSa/s |
| Profundidad de memoria | 4 Mpuntos |
| Tamaño de pantalla | 8,5 pulgadas WVGA (800 x 480) |
| Tasa de actualización de forma de onda | 1.000.000 formas de onda por segundo |
| Interfaz de conectividad | USB, LAN (LXI), GPIB (opcional) |
| Ancho de banda del sistema de lógica mixta (MSO) | 100 MHz |
| Tensión de entrada máxima | 300 V CAT II |
Keysight (Agilent) MSOX3014T Options:
- MSOX3014T - DSOXT3MSO - MSO upgrade: add 16 digital timing channels
- MSOX3014T - DSOX3EMBD - Embedded serial triggering and analysis (I²C, SPI)
- MSOX3014T - DSOX3COMP - Computer serial triggering and analysis (RS232/UART)
- MSOX3014T - DSOXT3SENSOR - Sensor triggering and analysis (SENT)
- MSOX3014T - DSOXT3AUTO - Automotive serial triggering and analysis (CAN/CAN-FD/CAN-dbc/LIN/LIN symbolic)
- MSOX3014T - DSOX3FLEX - FlexRay serial triggering and analysis
- MSOX3014T - DSOX3AUDIO - Audio serial triggering and analysis (I²S)
- MSOX3014T - DSOX3AERO - MIL-STD 1553 and ARINC 429 serial triggering and analysis
- MSOX3014T - DSOX3WAVEGEN - WaveGen 20 MHz arbitrary/function generator
- MSOX3014T - DSOXT3DVMCTR - Integrated digital voltmeter and 8-digit counter
- MSOX3014T - DSOX3PWR - Power analysis application
- MSOX3014T - DSOX3MASK - Mask limit testing
- MSOX3014T - DSOX3VID - Enhanced video/TV application package
- MSOX3014T - DSOXEDK - Education and training kit
- MSOX3014T - DSOXT3APPBNDL - SW application bundle license for 3000T X-Series (includes DSOX3AERO, DSOX3AUDIO, DSOXT3AUTO, DSOX3COMP, DSOX3EMBD, DSOX3FLEX, DSOX3MASK, DSOX3PWR, DSOXT3SENSOR, DSOX3VID, DSOX3WAVEGEN, DSOXT3DVMCTR, DSOXEDK)
- MSOX3014T - DSOXLAN - LAN/VGA connection module
- MSOX3014T - DSOXGPIB - GPIB connection module
- MSOX3014T - DSOXT3B1T22 - License only 100MHz to 200MHz upgrade, 2ch
- MSOX3014T - DSOXT3B1T24 - License only 100MHz to 200MHz upgrade, 4ch
- MSOX3014T - DSOXT3B3T52 - License only 350MHz to 500MHz upgrade, 2ch
- MSOX3014T - DSOXT3B3T54 - License only 350MHz to 500MHz upgrade, 4ch
- MSOX3014T - DSOXT3B1T32U - Service center 100MHz to 350MHz upgrade, 2ch
- MSOX3014T - DSOXT3B1T52U - Service center 100MHz to 500MHz upgrade, 2ch
- MSOX3014T - DSOXT3B1T102U - Service center 100MHz to 1GHz upgrade, 2ch
- MSOX3014T - DSOXT3B1T34U - Service center 100MHz to 350MHz upgrade, 4ch
- MSOX3014T - DSOXT3B1T54U - Service center 100MHz to 500MHz upgrade, 4ch
- MSOX3014T - DSOXT3B1T104U - Service center 100MHz to 1GHz upgrade, 4ch
- MSOX3014T - DSOXT3B2T32U - Service center 200MHz to 350MHz upgrade, 2ch
- MSOX3014T - DSOXT3B2T52U - Service center 200MHz to 500MHz upgrade, 2ch
- MSOX3014T - DSOXT3B2T102U - Service center 200MHz to 1GHz upgrade, 2ch
- MSOX3014T - DSOXT3B2T34U - Service center 200MHz to 350MHz upgrade, 4ch
- MSOX3014T - DSOXT3B2T54U - Service center 200MHz to 500MHz upgrade, 4ch
- MSOX3014T - DSOXT3B2T104U - Service center 200MHz to 1GHz upgrade, 4ch
- MSOX3014T - DSOXT3B3T102U - Service center 350MHz to 1GHz upgrade, 2ch
- MSOX3014T - DSOXT3B3T104U - Service center 350MHz to 1GHz upgrade, 4ch
- MSOX3014T - DSOXT3B5T102U - Service center 500MHz to 1GHz upgrade, 2ch
- MSOX3014T - DSOXT3B5T104U - Service center 500MHz to 1GHz upgrade, 4ch
| Model | MSOX3014T |
|---|
El Keysight (Agilent) MSOX3014T es un osciloscopio de señal mixta de 100 MHz con 4 canales analógicos y 16 digitales, que ofrece 5 millones de formas de onda por segundo. Cuenta con pantalla táctil capacitiva de 8,5 pulgadas, analizador lógico integrado y generador de funciones WaveGen opcional con capacidad de diagrama de Bode.
Diseñado para desarrollo embebido, permite depuración rápida, decodificación de bus serie y generación flexible de señales.
Testwall puede suministrar el Keysight (Agilent) MSOX3014T usado, completamente probado. Con soporte experto y entrega global, Testwall garantiza instrumentos de alto rendimiento con fiabilidad y calidad de servicio inigualables. Contáctenos para calibración o reparación del Keysight (Agilent) MSOX3014T.
