Keysight (Agilent)

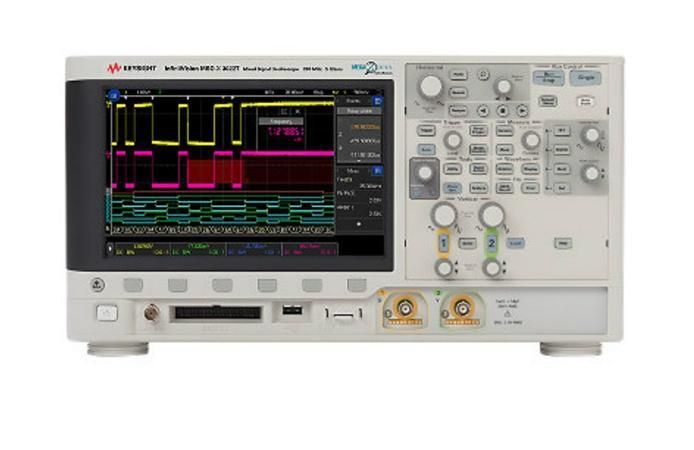

Keysight Technologies MSOX3022T
200 MHz, 2 Analog Channels, 16 Digital Channels
200 MHz Ancho de banda
2 Número de canales analógicos
16 Canales digitales
4 GSa/s Frecuencia de muestreo máxima
4 Mpuntos Profundidad de memoria
| Atributo | Valor |
|---|---|
| Ancho de banda | 200 MHz |
| Número de canales analógicos | 2 |
| Canales digitales | 16 |
| Frecuencia de muestreo máxima | 4 GSa/s |
| Profundidad de memoria | 4 Mpuntos |
| Pantalla | 8,5 pulgadas WVGA (800 x 480) |
| Tasa de actualización de forma de onda | 1.000.000 formas de onda por segundo |
| Resolución vertical | 8 bits |
| Sensibilidad vertical | 1 mV/div a 10 V/div |
| Rango de base de tiempos | 2 ns/div a 50 s/div |
Keysight (Agilent) MSOX3022T Options:
- MSOX3022T - DSOXT3MSO - MSO upgrade: add 16 digital timing channels
- MSOX3022T - DSOX3EMBD - Embedded serial triggering and analysis (I²C, SPI)
- MSOX3022T - DSOX3COMP - Computer serial triggering and analysis (RS232/UART)
- MSOX3022T - DSOXT3SENSOR - Sensor triggering and analysis (SENT)
- MSOX3022T - DSOXT3AUTO - Automotive serial triggering and analysis (CAN/CAN-FD/CAN-dbc/LIN/LIN symbolic)
- MSOX3022T - DSOX3FLEX - FlexRay serial triggering and analysis
- MSOX3022T - DSOX3AUDIO - Audio serial triggering and analysis (I²S)
- MSOX3022T - DSOX3AERO - MIL-STD 1553 and ARINC 429 serial triggering and analysis
- MSOX3022T - DSOX3WAVEGEN - WaveGen 20 MHz arbitrary/function generator
- MSOX3022T - DSOXT3DVMCTR - Integrated digital voltmeter and 8-digit counter
- MSOX3022T - DSOX3PWR - Power analysis application
- MSOX3022T - DSOX3MASK - Mask limit testing
- MSOX3022T - DSOX3VID - Enhanced video/TV application package
- MSOX3022T - DSOXEDK - Education and training kit
- MSOX3022T - DSOXT3APPBNDL - SW application bundle license (includes DSOX3AERO, DSOX3AUDIO, DSOXT3AUTO, DSOX3COMP, DSOX3EMBD, DSOX3FLEX, DSOX3MASK, DSOX3PWR, DSOXT3SENSOR, DSOX3VID, DSOX3WAVEGEN, DSOXT3DVMCTR, DSOXEDK)
- MSOX3022T - DSOXT3B1T22 - License only 100MHz to 200MHz upgrade, 2ch
- MSOX3022T - DSOXT3B3T52 - License only 350MHz to 500MHz upgrade, 2ch
- MSOX3022T - DSOXT3B1T32U - Service center 100MHz to 350MHz upgrade, 2ch
- MSOX3022T - DSOXT3B1T52U - Service center 100MHz to 500MHz upgrade, 2ch
- MSOX3022T - DSOXT3B1T102U - Service center 100MHz to 1GHz upgrade, 2ch
- MSOX3022T - DSOXT3B2T32U - Service center 200MHz to 350MHz upgrade, 2ch
- MSOX3022T - DSOXT3B2T52U - Service center 200MHz to 500MHz upgrade, 2ch
- MSOX3022T - DSOXT3B2T102U - Service center 200MHz to 1GHz upgrade, 2ch
- MSOX3022T - DSOXT3B3T102U - Service center 350MHz to 1GHz upgrade, 2ch
- MSOX3022T - DSOXT3B5T102U - Service center 500MHz to 1GHz upgrade, 2ch
- MSOX3022T - DSOXLAN - LAN/VGA connection module
- MSOX3022T - DSOXGPIB - GPIB connection module
| Model | MSOX3022T |
|---|
El osciloscopio de señal mixta Keysight (Agilent) MSOX3022T ofrece 200 MHz de ancho de banda en 2 canales analógicos y 16 digitales, con interfaz táctil de alta resolución. Incluye disparo por zonas, alta velocidad de actualización y decodificación de protocolos en serie integrados (I2C, SPI, UART). Actualizable con generador de formas de onda opcional.
Ideal para depuración de sistemas embebidos, permite capturas rápidas e interacción intuitiva.
Testwall suministra el Keysight (Agilent) MSOX3022T usado, completamente probado. Con soporte experto y envío global, Testwall garantiza instrumentos confiables y de alto rendimiento. Contáctenos para calibración o reparación del MSOX3022T.
