Keysight (Agilent)

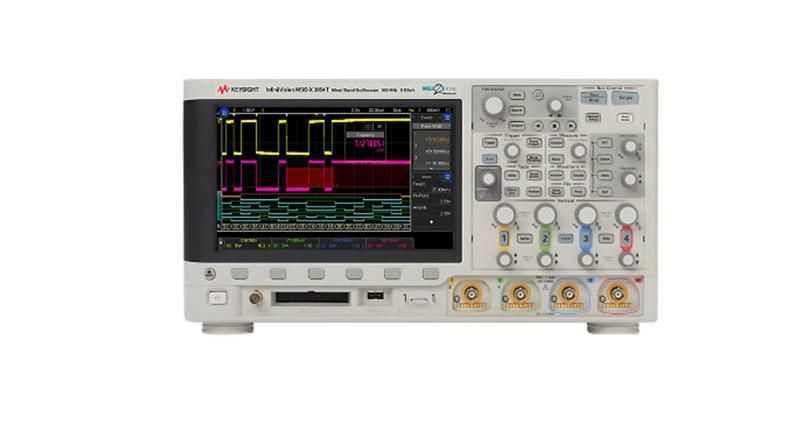

Keysight Technologies MSOX3054T
500 MHz, 4 Analog Channels, 16 Digital Channels
500 MHz Ancho de banda
4 canales Número de canales analógicos
16 canales digitales (MSO) Canales digitales
5 GSa/s Tasa de muestreo máxima
4 Mpuntos Profundidad de memoria
| Atributo | Valor |
|---|---|
| Ancho de banda | 500 MHz |
| Número de canales analógicos | 4 canales |
| Canales digitales | 16 canales digitales (MSO) |
| Tasa de muestreo máxima | 5 GSa/s |
| Profundidad de memoria | 4 Mpuntos |
| Tamaño de pantalla | 8,5 pulgadas WVGA (800 x 480 píxeles) |
| Tasa de actualización de forma de onda | 1.000.000 formas de onda por segundo |
| Interfaz de conectividad | USB, LAN (LXI), GPIB (opcional) |
| Generador de funciones integrado | Sí, generador de formas de onda arbitrarias (WaveGen) integrado |
| Opciones de análisis de protocolos serie | I2C, SPI, UART/RS232, CAN, LIN (con licencia) |
Keysight (Agilent) MSOX3054T Options:
- MSOX3054T - DSOXT3MSO - MSO upgrade: add 16 digital timing channels
- MSOX3054T - DSOX3EMBD - Embedded serial triggering and analysis (I²C, SPI)
- MSOX3054T - DSOX3COMP - Computer serial triggering and analysis (RS232/UART)
- MSOX3054T - DSOXT3SENSOR - Sensor triggering and analysis (SENT)
- MSOX3054T - DSOXT3AUTO - Automotive serial triggering and analysis (CAN/CAN-FD/CAN-dbc/LIN/LIN symbolic)
- MSOX3054T - DSOX3FLEX - FlexRay serial triggering and analysis
- MSOX3054T - DSOX3AUDIO - Audio serial triggering and analysis (I²S)
- MSOX3054T - DSOX3AERO - MIL-STD 1553 and ARINC 429 serial triggering and analysis
- MSOX3054T - DSOX3WAVEGEN - WaveGen 20 MHz arbitrary/function generator
- MSOX3054T - DSOXT3DVMCTR - Integrated digital voltmeter and 8-digit counter
- MSOX3054T - DSOX3PWR - Power analysis application
- MSOX3054T - DSOX3MASK - Mask limit testing
- MSOX3054T - DSOX3VID - Enhanced video/TV application package
- MSOX3054T - DSOXEDK - Education and training kit
- MSOX3054T - DSOXT3APPBNDL - SW application bundle license (includes DSOX3AERO, DSOX3AUDIO, DSOXT3AUTO, DSOX3COMP, DSOX3EMBD, DSOX3FLEX, DSOX3MASK, DSOX3PWR, DSOXT3SENSOR, DSOX3VID, DSOX3WAVEGEN, DSOXT3DVMCTR, DSOXEDK)
- MSOX3054T - DSOXT3B3T52 - License only 350MHz to 500MHz upgrade, 2ch
- MSOX3054T - DSOXT3B3T54 - License only 350MHz to 500MHz upgrade, 4ch
- MSOX3054T - DSOXT3B5T102U - Service center 500MHz to 1 GHz upgrade, 2ch
- MSOX3054T - DSOXT3B5T104U - Service center 500MHz to 1 GHz upgrade, 4ch
- MSOX3054T - DSOXLAN - LAN/VGA connection module
- MSOX3054T - DSOXGPIB - GPIB connection module
| Model | MSOX3054T |
|---|
El osciloscopio de señal mixta Keysight (Agilent) MSOX3054T ofrece una velocidad de actualización de 1 millón de formas de onda/seg y pantalla táctil capacitiva. Con disparo táctil por zona, señal de 1 mV/div y resolución de hasta 12 bits, asegura análisis claros. Cuenta con 37 mediciones automáticas, conectividad USB y opciones de compuerta versátiles.
Ideal para ingenieros y técnicos, el MSOX3054T admite 8 mediciones simultáneas y control mediante software BV0004B.
Testwall puede suministrar el Keysight (Agilent) MSOX3054T usado, completamente probado. Con soporte experto y entrega global, Testwall garantiza fiabilidad y calidad de servicio. Contáctenos para calibración o reparación del Keysight (Agilent) MSOX3054T.
