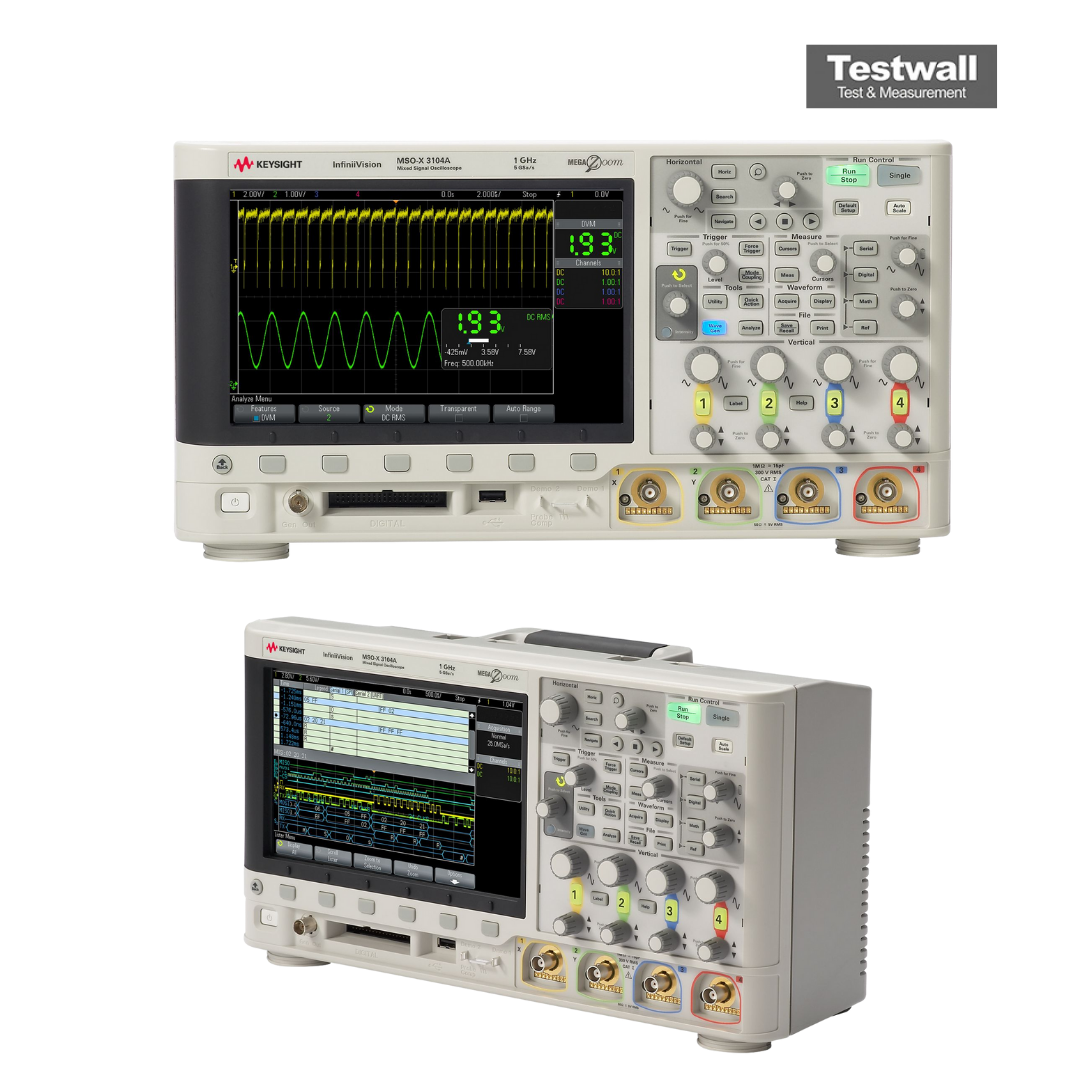

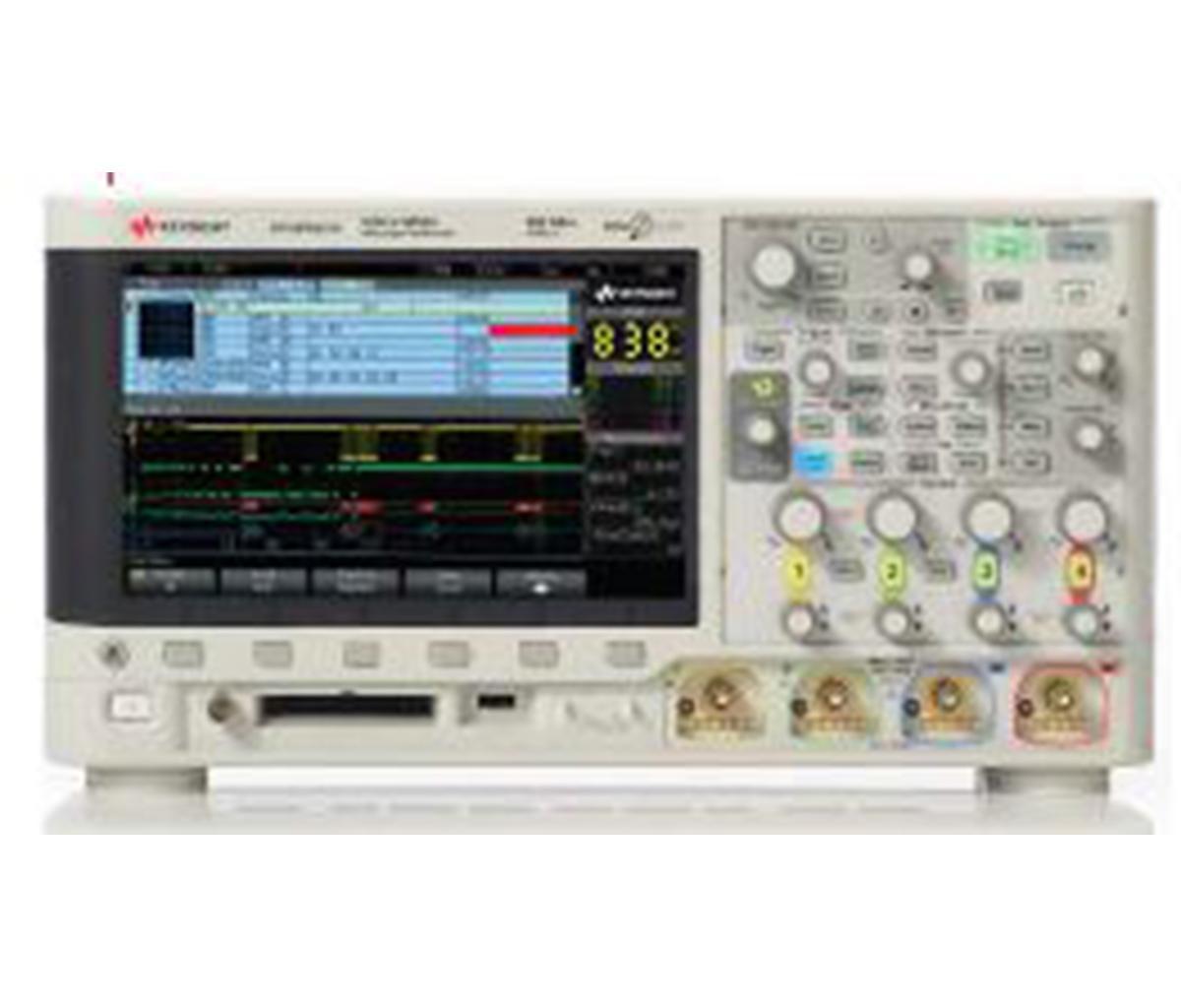

Keysight Technologies MSOX3104A
| Atributo | Valor |
|---|---|
| Ancho de banda | 1 GHz |
| Número de canales analógicos | 4 |
| Canales digitales | 16 |
| Frecuencia de muestreo máxima | 5 GSa/s |
| Profundidad de memoria | 4 Mpuntos |
| Tamaño de pantalla | 8,5 pulgadas WVGA (800 x 480 píxeles) |
| Tasa de actualización de forma de onda | 1.000.000 formas de onda por segundo |
| Sensibilidad vertical | 1 mV/div a 10 V/div |
| Rango de base de tiempos | 1 ns/div a 50 s/div |
| Interfaz de conectividad | USB, LAN (LXI), GPIB (opcional) |
Keysight Technologies MSOX3104A Options:
- MSOX3104A - DSOX3MEMUP (-040) - Memory upgrade (standard 2 Mpts to optional 4 Mpts)
- MSOX3104A - DSOX3SGM (-SGM) - Segmented memory
- MSOX3104A - DSOX3MSO - MSO upgrade: add 16 digital timing channels (for 500 MHz and below models)
- MSOX3104A - DSOXPERFMSO - MSO upgrade: add 16 digital timing channels (for 1 GHz models)
- MSOX3104A - DSOX3WAVEGEN (-001) - WaveGen 20 MHz arbitrary/function generator
- MSOX3104A - DSOXDVM (-DVM) - Integrated 3-digit digital voltmeter (DVM)
- MSOX3104A - DSOX3EMBD (LSS) - Embedded serial triggering and analysis (I²C, SPI)
- MSOX3104A - DSOX3COMP (-232) - Computer serial triggering and analysis (RS232/422/485/UART)
- MSOX3104A - DSOX3AUTO (-AMS) - Automotive serial triggering and analysis (CAN/LIN)
- MSOX3104A - DSOX3FLEX (-FLX) - FlexRay serial triggering and analysis
- MSOX3104A - DSOX3AUDIO (-SND) - Audio serial triggering and analysis (I²S)
- MSOX3104A - DSOX3AERO (-AER) - MIL-STD 1553 and ARINC 429 serial triggering and analysis
- MSOX3104A - DSOX3PWR (-PWR) - Power analysis application
- MSOX3104A - DSOX3MASK (-LMT) - Mask limit testing
- MSOX3104A - DSOX3VID (-VID) - Enhanced video/TV application package (HDTV triggering and analysis)
- MSOX3104A - DSOX3ADVMATH (-MAT) - Advanced waveform math
- MSOX3104A - DSOXEDK (-EDK) - Education and training kit
- MSOX3104A - DSOX3BW12 - 500 MHz to 1 GHz bandwidth upgrade, 2 ch, Service center
- MSOX3104A - DSOX3BW14 - 500 MHz to 1 GHz bandwidth upgrade, 4 ch, Service center
- MSOX3104A - DSOX3BW52 - 350 MHz to 500 MHz bandwidth upgrade, 2 ch, License only
- MSOX3104A - DSOX3BW54 - 350 MHz to 500 MHz bandwidth upgrade, 4 ch, License only
- MSOX3104A - DSOXLAN - LAN/VGA connection module
- MSOX3104A - DSOXGPIB - GPIB connection module
- MSOX3104A - N8900A - Infiniium Offline oscilloscope analysis software
- MSOX3104A - 64997A - Keysight spectrum visualizer software
- MSOX3104A - 89601B - Vector signal analyzer software (version 15 and higher)
- MSOX3104A - 33503A - Benchlink waveform builder pro and basic
| Model | MSOX3104A |
|---|
El Keysight (Agilent) MSOX3104A ofrece un valor inigualable con ancho de banda de 1 GHz, 4 canales analógicos y 16 digitales, voltímetro integrado de 3 dígitos y frecuencímetro de 5 dígitos. Pantalla WVGA de 8.5", memoria de hasta 4 Mpts y tasa de actualización de 1,000,000 wfms/s.
Con opciones ampliables como generador de forma de onda arbitraria de 20 MHz, análisis de disparo en serie y prueba de máscaras, ofrece versatilidad a largo plazo.
Testwall puede suministrar el Keysight (Agilent) MSOX3104A usado, completamente probado. Con soporte experto y entrega global, Testwall garantiza instrumentos de alto rendimiento con fiabilidad y calidad de servicio incomparables. Contáctenos para calibración o reparación del Keysight (Agilent) MSOX3104A.
