Keysight (Agilent)

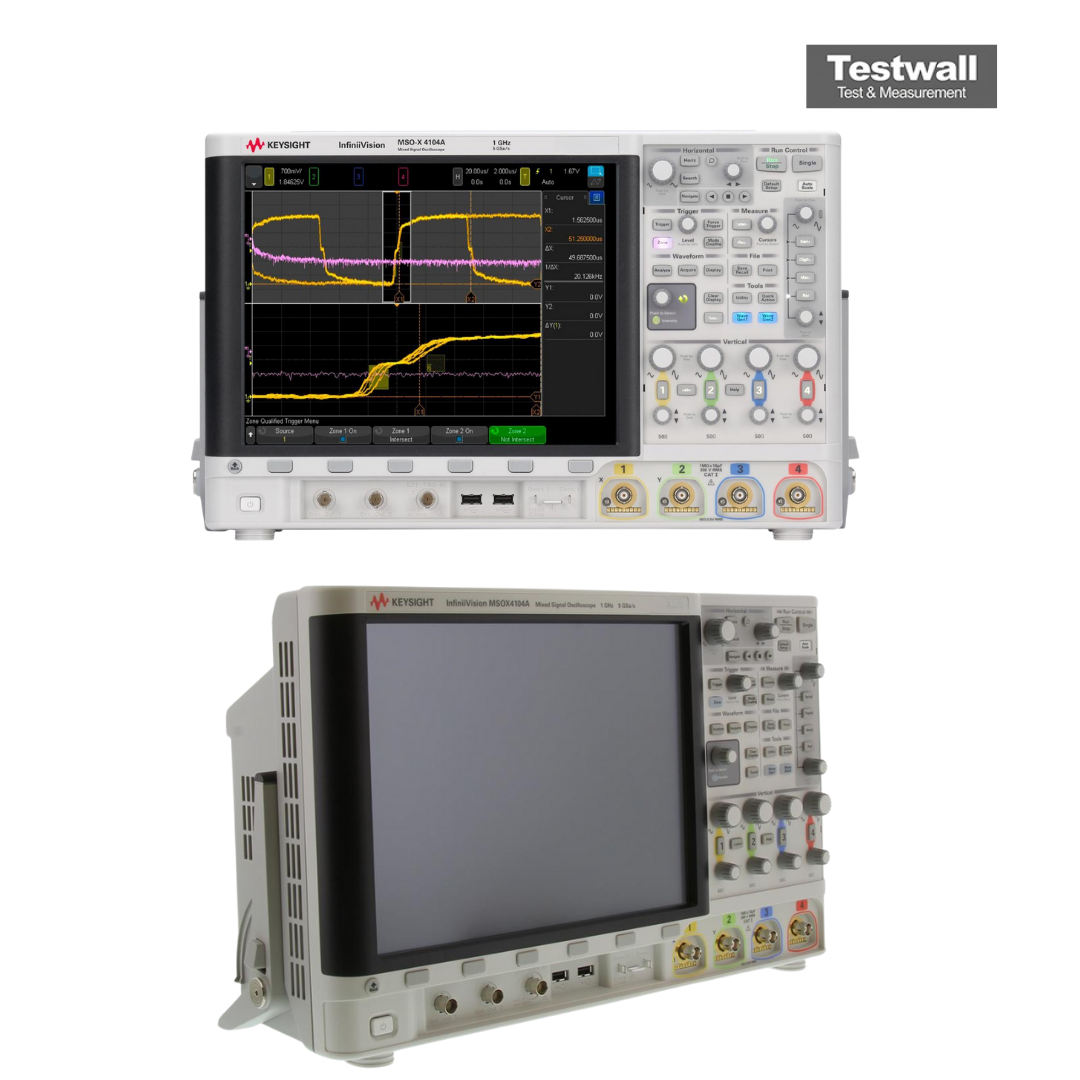

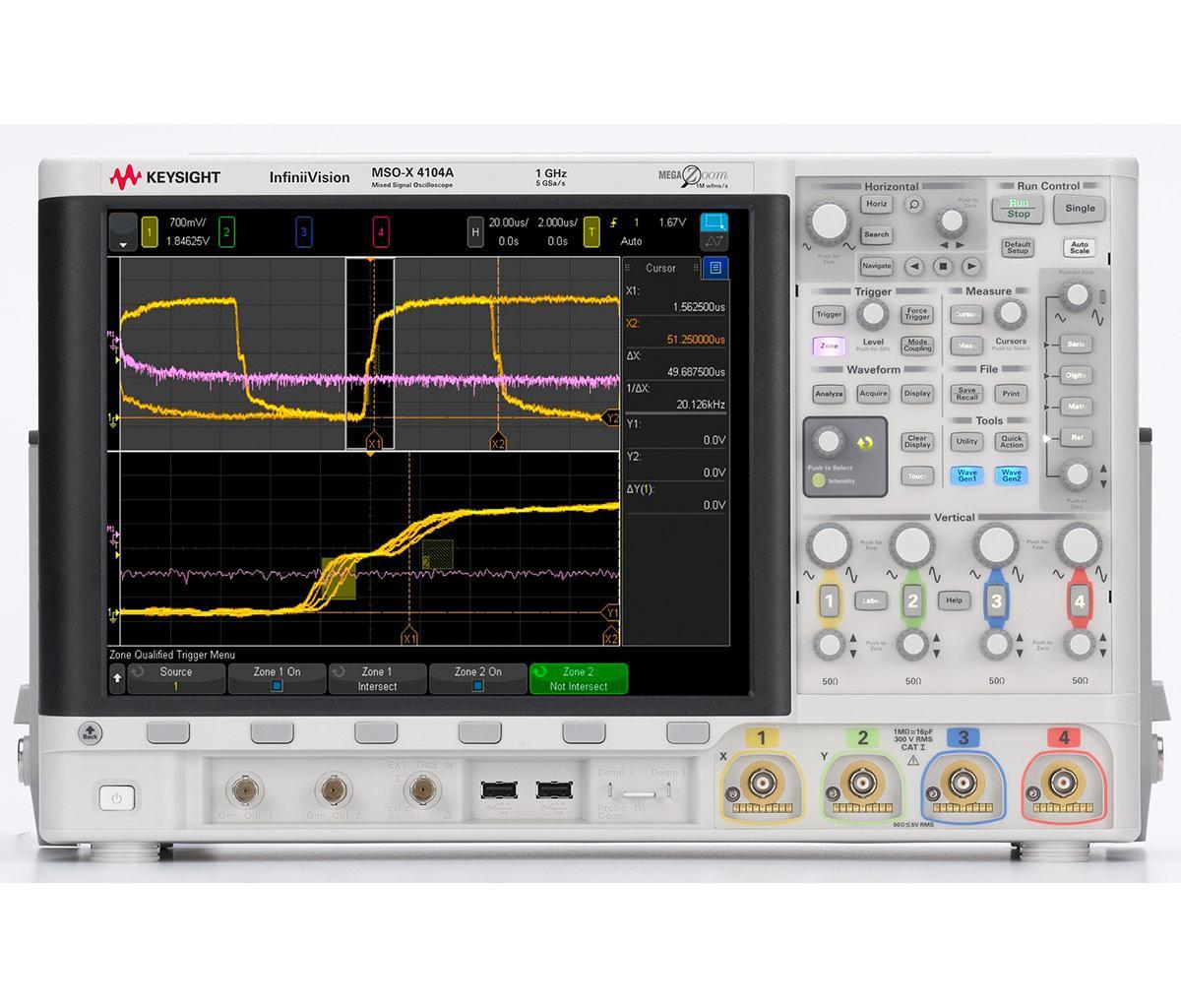

Keysight Technologies MSOX4104A
1GHz, 4+16channel Mixed Signal Oscilloscope
1 GHz Ancho de banda
4 Número de canales analógicos
16 Canales digitales
5 GSa/s Frecuencia de muestreo máxima
4 Mpuntos Profundidad de memoria
| Atributo | Valor |
|---|---|
| Ancho de banda | 1 GHz |
| Número de canales analógicos | 4 |
| Canales digitales | 16 |
| Frecuencia de muestreo máxima | 5 GSa/s |
| Profundidad de memoria | 4 Mpuntos |
| Tamaño de pantalla | 12,1 pulgadas (WXGA) |
| Tasa de actualización de forma de onda | 1.000.000 formas de onda por segundo |
| Resolución vertical | 8 bits (hasta 12 bits en modo de alta resolución) |
| Rango de escala vertical | 1 mV/div a 5 V/div |
| Interfaz y conectividad | USB, LAN (LXI), GPIB (opcional) |
Keysight Technologies MSOX4104A Options:
- MSOX4104A - DSOX4EMBD - Embedded serial triggering and analysis (I²C, SPI)
- MSOX4104A - DSOX4COMP - Computer serial triggering and analysis (RS232/UART)
- MSOX4104A - DSOX4USBFL - USB 2.0 Full/Low Speed serial triggering and decode
- MSOX4104A - DSOX4USBH - USB 2.0 Hi-Speed serial triggering and decode
- MSOX4104A - DSOX4AUTO - Automotive serial triggering and analysis (CAN/LIN)
- MSOX4104A - DSOX4FLEX - FlexRay serial triggering and analysis
- MSOX4104A - DSOX4AUDIO - Audio serial triggering and analysis (I²S)
- MSOX4104A - DSOX4AERO - Aerospace and defence serial triggering and decode (MIL-STD 1553 and ARINC 429)
- MSOX4104A - DSOX4WAVEGEN2 - Dual-channel WaveGen 20 MHz arbitrary/function generator
- MSOX4104A - DSOXDVM - 3-digit voltmeter (DVM)
- MSOX4104A - DSOX4PWR - Power analysis application
- MSOX4104A - DSOX4MASK - Mask limit testing
- MSOX4104A - DSOX4VID - Enhanced video/TV application package
- MSOX4104A - DSOX4FPGAX - FPGA dynamic probe option for Xilinx
- MSOX4104A - DSOXEDK - Education and training kit
- MSOX4104A - DSOX4B1T154U - Bandwidth upgrade 1 GHz to 1.5 GHz, 4 ch (Service Center)
- MSOX4104A - N8900A - InfiniiView oscilloscope analysis software
- MSOX4104A - 64997A - Agilent spectrum visualizer (ASV) software
- MSOX4104A - 89601B - Vector signal analyzer software (version 16 and higher)
- MSOX4104A - 33503A - BenchLink waveform builder pro and basic
| Model | MSOX4104A |
|---|
Osciloscopio Keysight (Agilent) MSOX4104A con ancho de banda de 1 GHz, 4 canales analógicos + 16 digitales, pantalla táctil de 12,1”, triggering por zonas.
Ideal para detectar anomalías con MegaZoom IV y memoria segmentada. Incluye: software localizado, sondas N2894A, cable MSO.
Testwall suministra el Keysight (Agilent) MSOX4104A usado, completamente probado, con soporte experto y entrega global.
