Keysight (Agilent) N5106A
| Atributo | Valor |
|---|---|
| Frecuencia de muestreo | 1 kSa/s a 150 MSa/s |
| Resolución | 14 bit |
| Interfaces | GPIB, LAN, USB |
| Dimensiones (An × Al × P) | 426 × 222 × 584 mm |
| Peso | 33 kg (máx.) |
| Canales | hasta 6 banda base generators, hasta 8 faders |
| Ancho de banda | 160 MHz RF (I+Q), analógico I/Q |
| Memoria | 512 MSa per banda base generator |
| Desvanecimiento | 2x2, 2x4, 4x2, 4x4 MIMO; hasta 24 paths per fader |
| Salidas | analógico I/Q 1 Vpp simple-ended, 2 Vpp diferencial; digital I/Q via N5102A |
Keysight Technologies N5106A Options:
- N5106A - 611 - One DSP block on one baseband generator card
- N5106A - 612 - Two DSP blocks on one baseband generator card
- N5106A - 613 - Three DSP blocks on two baseband generator cards
- N5106A - 614 - Four DSP blocks on two baseband generator cards
- N5106A - 615 - Five DSP blocks on three baseband generator cards
- N5106A - 616 - Six DSP blocks on three baseband generator cards
- N5106A - 617 - Seven DSP blocks on four baseband generator cards
- N5106A - 618 - Eight DSP blocks on four baseband generator cards
- N5106A - 619 - Nine DSP blocks on five baseband generator cards
- N5106A - 620 - Ten DSP blocks on five baseband generator cards
- N5106A - 621 - Eleven DSP blocks on six baseband generator cards
- N5106A - 622 - Twelve DSP blocks on six baseband generator cards
- N5106A - 632 - One IO card that provides two IO ports. Each IO port has both digital IO and analog I/Q
- N5106A - 634 - Two IO cards that provide four IO ports. Each IO port has both digital IO and analog I/Q
- N5106A - EFP - Baseband generation
- N5106A - JFP - Calibrated AWGN
- N5106A - QFP - Fading with SISO channel models
- N5106A - RFP - Mobile WiMAX MIMO channel models
- N5106A - TFP - LTE MIMO channel models
- N5106A - 2B2 - 2x2 MIMO baseband generation and channel emulation bundle (includes options 616, 634, EFP, JFP, and QFP)
- N5106A - LTE - LTE MIMO software application bundle (adds N5106A-TFP LTE MIMO channel models and Signal Studio model N7624B 3GP LTE with options 6FP, GFP, and RFP)
- N5106A - WMX - Mobile WiMAX MIMO software application bundle (adds N5106A-RFP WiMAX MIMO channel models and Signal Studio model N7615B 802.16 WiMAX with options 6FP, EFP, QFP, and RFP)
- N5106A - 181 - USB Accessory Kit (keyboard, optical mouse, disk drive DVD-ROM/CD-RW)
- N5106A - 1CP - Rack Mount Flange and Front Handle Kit
- N5106A - 1CR - Rack Mount Slide Kit
- N5106A - 720 - Cable, SMB (female) to BNC (male), 50Ω 1.0m (external reference/trigger cable)
- N5106A - CD1 - Documentation DVD
- N5106AK - 031 - Enables one DSP block on one baseband generator card (upgrade)
- N5106AK - 032 - Adds one baseband generator card (upgrade)
- N5106AK - 034 - Adds one IO card that provides two IO ports with both digital IO and analog I/Q (upgrade)

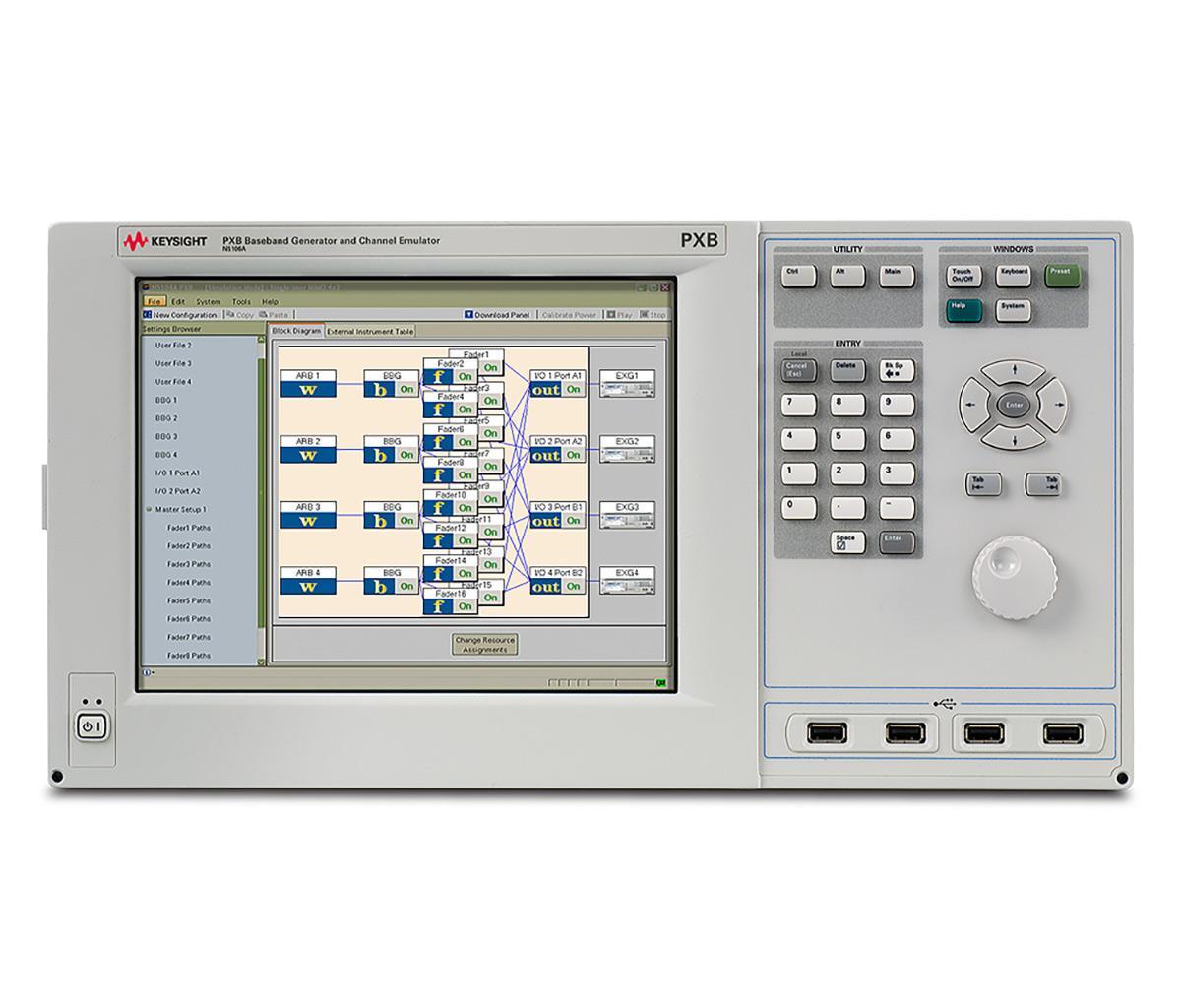

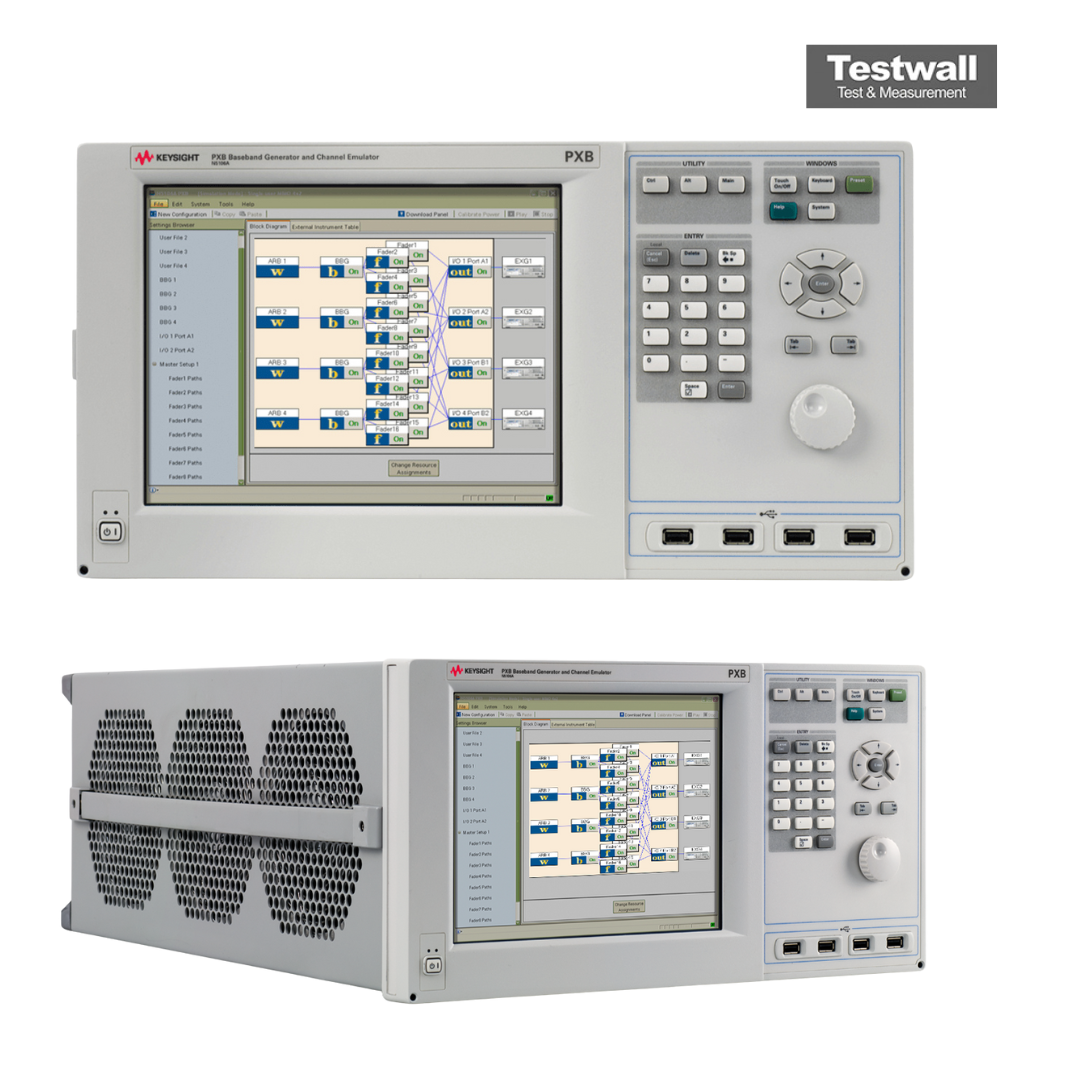

El Keysight (Agilent) N5106A PXB ofrece una flexibilidad de prueba inigualable con emulación de canal en tiempo real y generación de banda base multi‑formato. Con un ancho de banda de modulación de hasta 120 MHz, memoria de 512 Msa por canal y soporte para seis BBG y ocho faders, permite escenarios de prueba complejos, incluidos MIMO e interferencias. La integración con Signal Studio y MATLAB® soporta estándares como LTE, HSPA y GPS.
Este sistema simplifica la configuración con enrutado, suma, sincronización y calibración integrados, eliminando la necesidad de múltiples instrumentos. Su arquitectura reconfigurable admite más de 20 configuraciones a través de una interfaz fácil de usar.
Testwall puede suministrar el Keysight (Agilent) N5106A usado, completamente probado. Con soporte experto y entrega global, Testwall garantiza instrumentación de alto rendimiento con fiabilidad y calidad de servicio inigualables. Por favor, contáctenos directamente si necesita calibración o reparación del Keysight (Agilent) N5106A.
