Keysight (Agilent)
Keysight (Agilent) N5241B-222

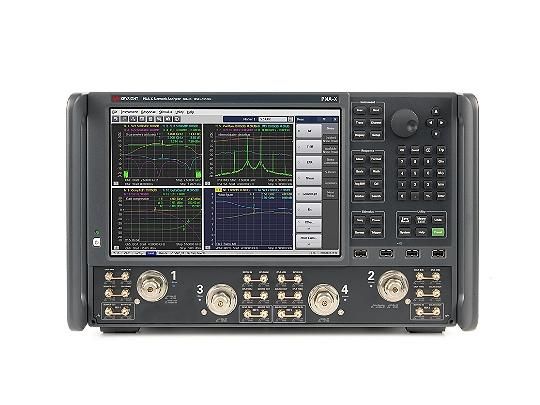

Analizador de redes PNA-X de 2 puertos, 10 MHz – 13,5 GHz, opción 222 (imagen orientativa)
de 10 MHz a 13,5 GHz Rango de frecuencia
2 puertos Número de puertos
138 dB (espec.), 145 dB (típ.) Rango dinámico
max. +13 dBm Rango de potencia de salida
Opción 222: configuración de alta potencia, segunda fuente interna, combinador y conmutadores internos Configuración
| Atributo | Valor |
|---|---|
| Rango de frecuencia | de 10 MHz a 13,5 GHz |
| Número de puertos | 2 puertos |
| Rango dinámico | 138 dB (espec.), 145 dB (típ.) |
| Rango de potencia de salida | max. +13 dBm |
| Configuración | Opción 222: configuración de alta potencia, segunda fuente interna, combinador y conmutadores internos |
| Fuentes internas | 2 |
| Impedancia | 50 Ω |
| Tipo de conector | 3,5 mm macho |
| Ancho de banda de FI | 1 Hz … 15 MHz |
| Número de puntos | max. 100.003 |
| Parámetros de medida | parámetros S, figura de ruido (opc.), compresión de ganancia, IMD, ruido de fase (opc.), RF pulsada |
| Pantalla | 12,1" LCD, 1280×800, táctil |
| Interfaces | LAN, 2× GPIB, USB, HiSLIP |
| Serie | PNA-X |
Keysight (Agilent) N5241B-222 Options:
- N5241B - 029 - Adds hardware and firmware for high-accuracy noise figure measurements (requires option 219, 222, 224, 419, 422, or 423)
- N5241B - 080 - Recommended internal second source for 4-port configurations
- N5241B - 201 - 2-port standard test set (includes six front-panel access loops) and power range
- N5241B - 217 - 2-port standard test set (includes six front-panel access loops), power range, and source and receiver attenuators (extended power range)
- N5241B - 219 - 2-port standard test set (includes six front-panel access loops), power range, source and receiver attenuators (extended power range), and bias-tees
- N5241B - 222 - 2-port standard test set (includes six front-panel access loops), power range, source and receiver attenuators (extended power range), internal second source, a combiner, and mechanical switches
- N5241B - 224 - 2-port standard test set (includes six front-panel access loops), power range, source and receiver attenuators (extended power range), internal second source, a combiner, mechanical switches, and bias tees
- N5241B - 401 - 4-port standard test set (includes twelve front-panel access loops), power range, and an internal second source
- N5241B - 417 - 4-port standard test set (includes twelve front-panel access loops), power range, internal second source, and source and receiver attenuators (extended power range)
- N5241B - 419 - 4-port standard test set (includes twelve front-panel access loops), power range, internal second source, source and receiver attenuators (extended power range), and bias-tees
- N5241B - 422 - 4-port standard test set (includes six front-panel access loops), power range, source and receiver attenuators (extended power range), internal second source, a combiner, and mechanical switches
- N5241B - 423 - 4-port standard test set (includes six front-panel access loops), power range, source and receiver attenuators (extended power range), internal second source, a combiner, mechanical switches, and bias tees
El Keysight (Agilent) N5241B-222 es un analizador de redes vectorial de la serie PNA-X de 2 puertos que cubre de 10 MHz a 13,5 GHz. Configuración de la opción 222: configuración de alta potencia, segunda fuente interna, combinador y conmutadores internos.
Testwall puede suministrar el Keysight (Agilent) N5241B-222 usado, totalmente probado. Con soporte experto y entrega global, Testwall garantiza instrumentación de alto rendimiento con una fiabilidad y calidad de servicio inigualables. Póngase en contacto con nosotros si necesita la calibración o reparación del Keysight (Agilent) N5241B-222.
