Keysight (Agilent)

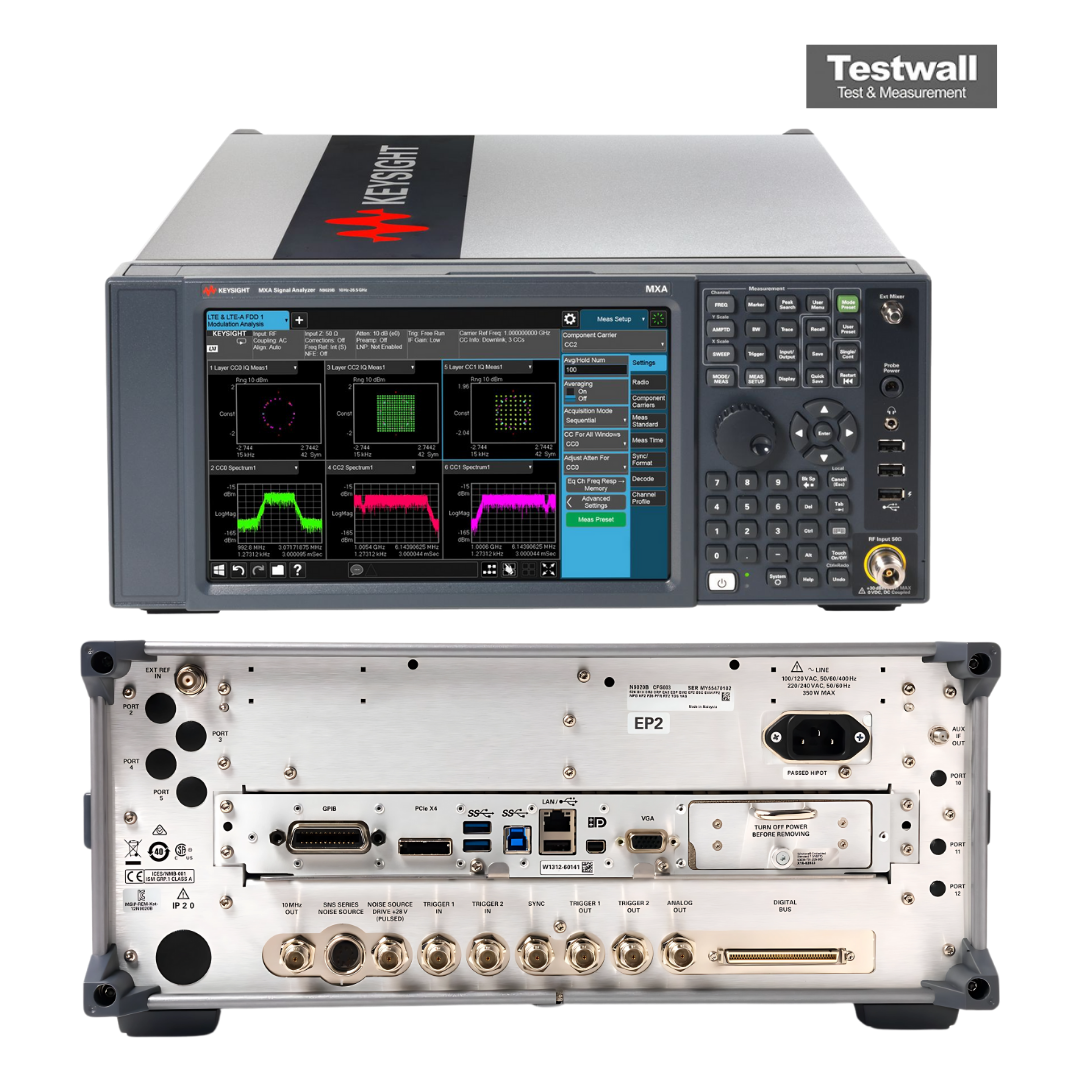

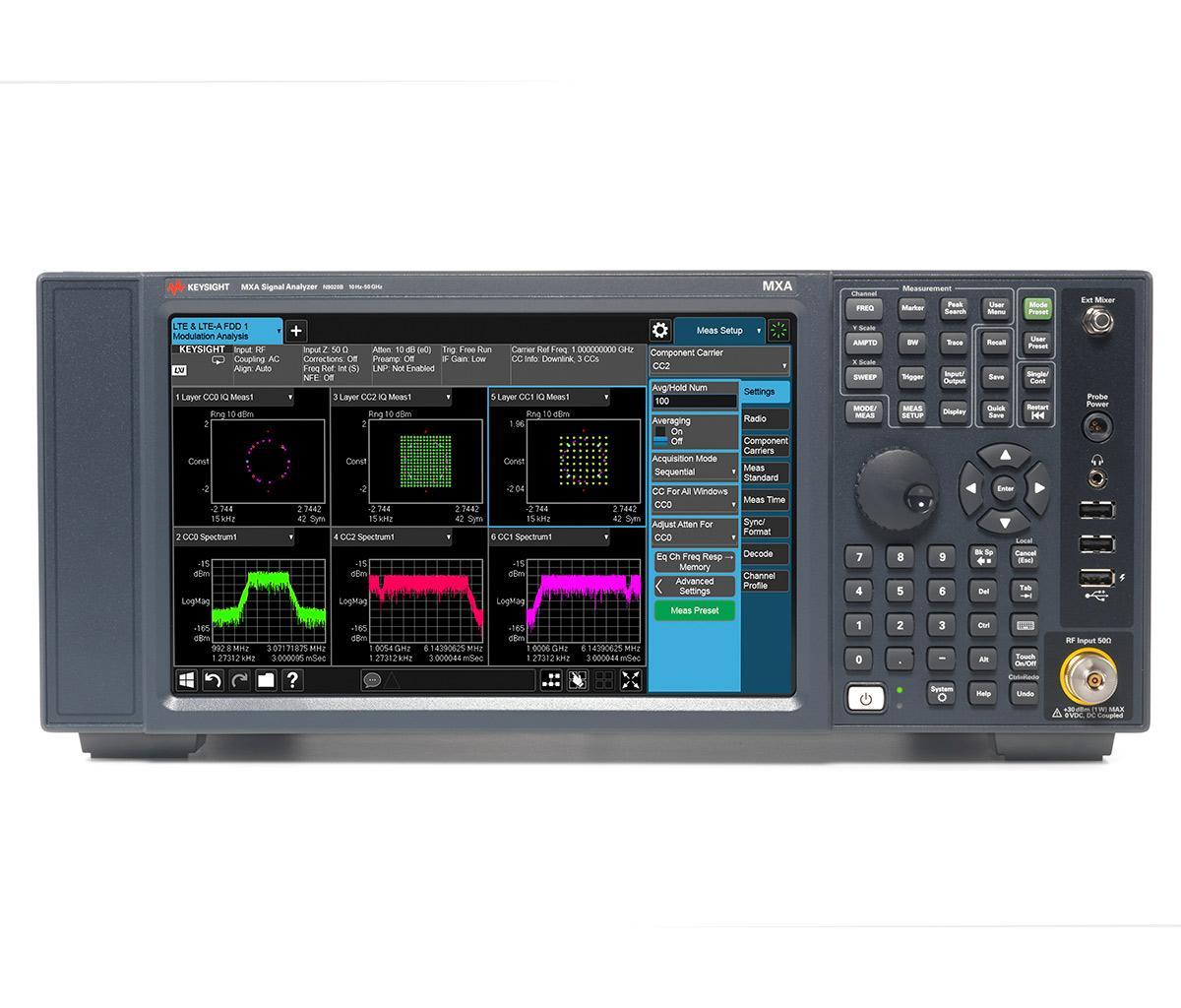

Keysight Technologies N9020B-508
8.4 GHz MXA Multi-touch Signal Analyzer, Type N (f)
10 Hz – 8,4 GHz Rango de Frecuencia
510 MHz Ancho de Banda de Análisis
-173 dBm/Hz (con preamplificador activado) Nivel de Ruido Promedio Mostrado (DANL)
hasta 78 dB Rango Dinámico
-130 dBc/Hz a 10 kHz de separación (a 1 GHz) Fase de Ruido
| Atributo | Valor |
|---|---|
| Rango de Frecuencia | 10 Hz – 8,4 GHz |
| Ancho de Banda de Análisis | 510 MHz |
| Nivel de Ruido Promedio Mostrado (DANL) | -173 dBm/Hz (con preamplificador activado) |
| Rango Dinámico | hasta 78 dB |
| Fase de Ruido | -130 dBc/Hz a 10 kHz de separación (a 1 GHz) |
| Incertidumbre de Amplitud | ±0,19 dB (típico) |
| Rango de Entrada (Nivel Máximo) | +30 dBm (1 W) |
| Impedancia de Entrada | 50 Ω |
| Opción de Ancho de Banda | Opción 508 – Ancho de banda de análisis de 510 MHz |
| Compatibilidad de Medición | LTE, LTE-A, 5G NR, WLAN, señales de banda ancha y análisis vectorial de señales (VSA) |
Keysight Technologies N9020B-508 Options:
- N9020B-508 - 503 - Frequency range, 10 Hz to 3.6 GHz
- N9020B-508 - 508 - Frequency range, 10 Hz to 8.4 GHz
- N9020B-508 - 513 - Frequency range, 10 Hz to 13.6 GHz
- N9020B-508 - 526 - Frequency range, 10 Hz to 26.5 GHz
- N9020B-508 - P03 - Preamplifier, 100 kHz to 3.6 GHz
- N9020B-508 - P08 - Preamplifier, 100 kHz to 8.4 GHz
- N9020B-508 - P13 - Preamplifier, 100 kHz to 13.6 GHz
- N9020B-508 - P26 - Preamplifier, 100 kHz to 26.5 GHz
- N9020B-508 - PFR - Precision frequency reference; reduces frequency drift, aging rate ±1x10⁻⁷/year
- N9020B-508 - EA3 - Electronic attenuator up to 3.6 GHz; 1 dB steps, 0 to 24 dB (in addition to mechanical attenuator)
- N9020B-508 - B40 - 40 MHz analysis bandwidth
- N9020B-508 - B85 - 85 MHz analysis bandwidth
- N9020B-508 - B1A - 125 MHz analysis bandwidth
- N9020B-508 - B1X - 160 MHz analysis bandwidth
- N9020B-508 - MPB - Microwave preselector bypass; required for wide analysis bandwidth measurements at frequency >3.6 GHz
- N9020B-508 - DP2 - Digital processor with 2 GB capture memory
- N9020B-508 - BBA - I/Q baseband inputs, analog; single-ended/differential, 50 Ω/1 MΩ impedance
- N9020B-508 - EXM - External mixing; extends frequency coverage up to 1.1 THz
- N9020B-508 - FP2 - Fast power; accelerates power measurements such as ACPR
- N9020B-508 - NF2 - Noise floor extension; improves analyzer's DANL performance
- N9020B-508 - RT1 - Real-time analysis up to 160 MHz BW, basic detection; includes FMT and TQT, minimum 17.3 μs POI
- N9020B-508 - RT2 - Real-time analysis up to 160 MHz BW, optimum detection; includes FMT and TQT, minimum 3.6 μs POI
- N9020B-508 - RTR - Real-time spectrum recorder and analyzer application
- N9020B-508 - FT1 - Frequency mask trigger, basic detection; detects signals as short as 17.3 μs
- N9020B-508 - FT2 - Frequency mask trigger, optimum detection; detects signals as short as 3.6 μs
- N9020B-508 - EDP - Enhanced display package; includes spectrogram, trace zoom, and zone span
- N9020B-508 - EMC - Basic EMI precompliance; CISPR 16-1-1 detectors and bandwidths
- N9020B-508 - ESC - External source control for Keysight EXG, MXG, and PSG signal generators
- N9020B-508 - SSD - Additional removable solid-state drive
- N9020B-508 - SF1 - Exclude launch program; prevents launching of Windows programs from instrument application
- N9020B-508 - SF2 - Prohibit saving results; prevents saving/recall of measurement results or user configurations
- N9020B-508 - CR3 - Second IF output; wideband IF out on Aux IF connector at rear panel
- N9020B-508 - CRP - Arbitrary IF output; IF out 10 to 75 MHz in 500 kHz steps
- N9020B-508 - YAS - Y-axis screen video output; screen video (0-1 volt open circuit) on rear panel analog out
- N9020B-508 - PRC - Portable configuration; pivoting carrying handle, rubber protective corners and end guards
- N9020B-508 - CVR - Front panel cover
| Model | N9020B-508 |
|---|
El Keysight (Agilent) N9020B-508 es un analizador de señales de alto rendimiento con un rango de frecuencia de hasta 8,4 GHz, ideal para aplicaciones avanzadas en 5G, radar y guerra electrónica. Ofrece hasta 160 MHz de ancho de banda en tiempo real.
Con análisis de modulación avanzada, control remoto SCPI/LXI y software actualizable, el N9020B-508 se adapta a los estándares cambiantes. Preamplificador y medición del factor de ruido opcionales.
Testwall puede suministrar el Keysight (Agilent) N9020B-508 usado, completamente probado. Con soporte experto y entrega global, Testwall garantiza instrumentos de alto rendimiento con fiabilidad y calidad de servicio inigualables. Contáctenos para calibración o reparación del Keysight (Agilent) N9020B-508.
