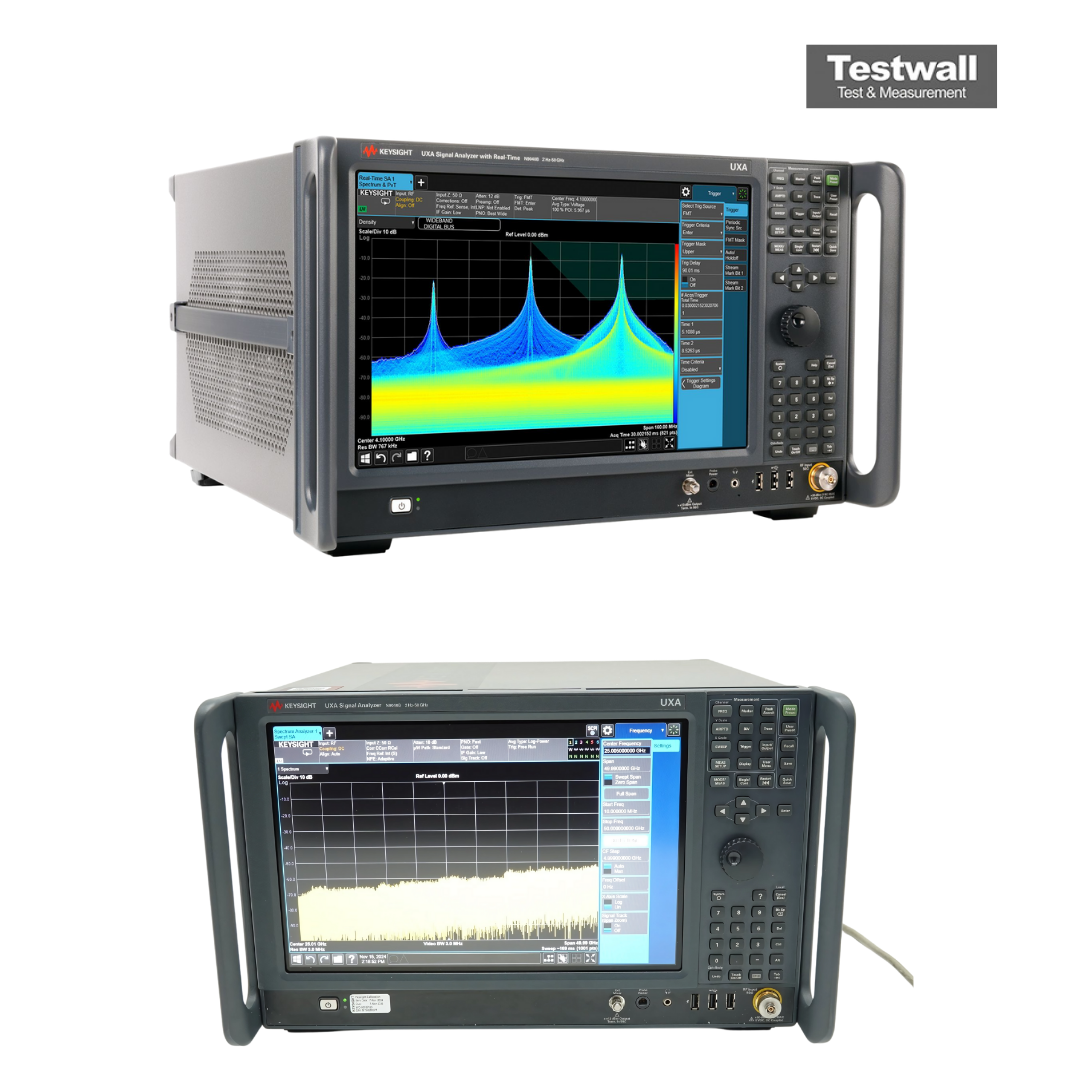

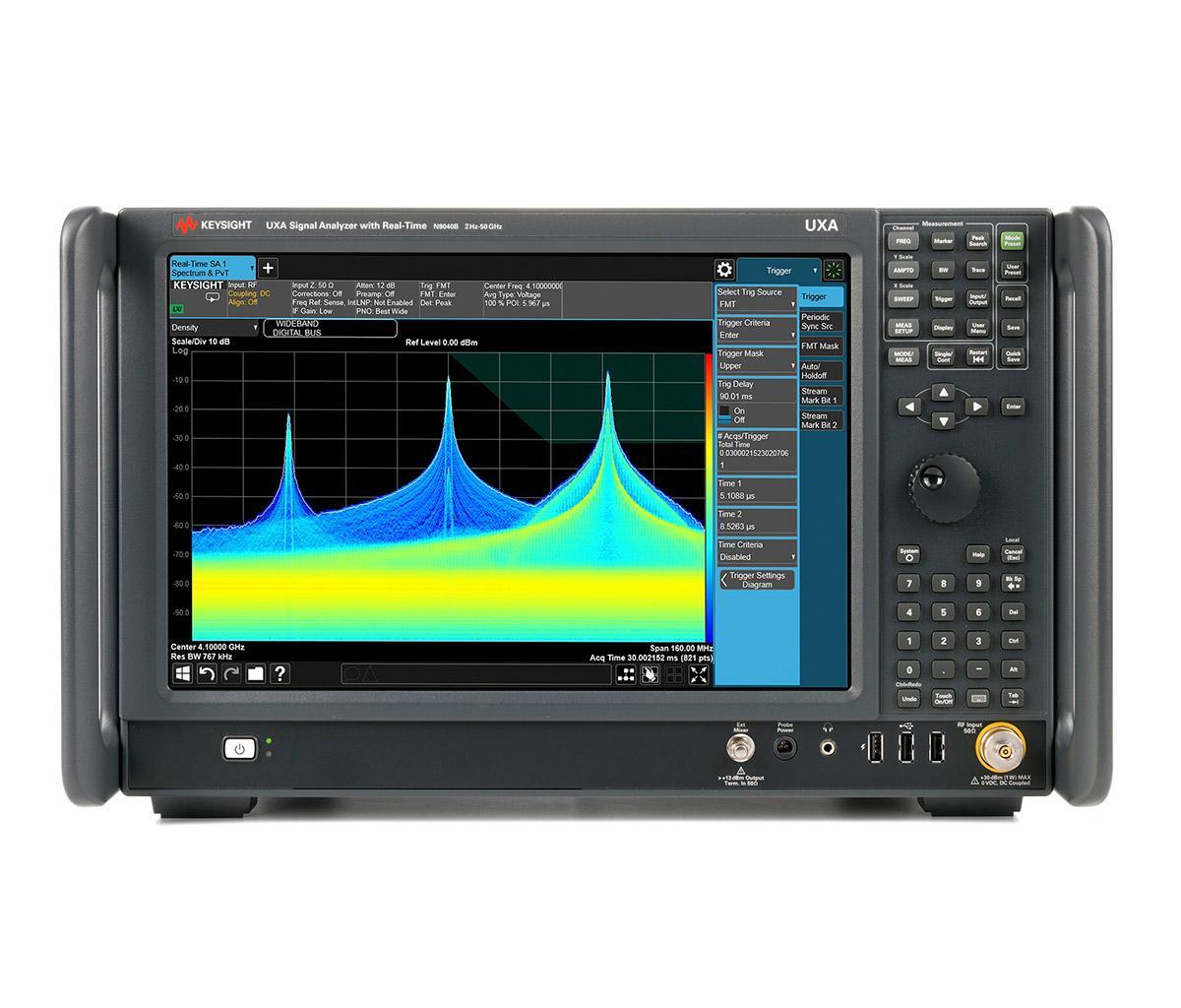

Keysight Technologies N9040B-550
50 GHz UXA Signal Analyzer, 2.4 mm (m)
3 Hz – 50 GHz Rango de frecuencia
-163 dBm/Hz (con preamplificador activado) Nivel de ruido mostrado promedio (DANL)
+30 dBm a -170 dBm Rango de amplitud
510 MHz Ancho de banda de análisis en tiempo real
-114 dBc/Hz a 1 kHz de separación (portadora de 1 GHz) Fase de ruido
| Atributo | Valor |
|---|---|
| Rango de frecuencia | 3 Hz – 50 GHz |
| Nivel de ruido mostrado promedio (DANL) | -163 dBm/Hz (con preamplificador activado) |
| Rango de amplitud | +30 dBm a -170 dBm |
| Ancho de banda de análisis en tiempo real | 510 MHz |
| Fase de ruido | -114 dBc/Hz a 1 kHz de separación (portadora de 1 GHz) |
| Exactitud de nivel | ±0,19 dB (típico) |
| Resolución de ancho de banda (RBW) | 1 Hz – 50 MHz |
| Interfaz de entrada RF | Conector tipo N de 50 Ω (hembra) |
| Pantalla | Pantalla táctil LCD a color de 15,4 pulgadas |
| Interfaces de conectividad | LAN (1000Base-T), USB 3.0, GPIB (opcional) |
Keysight Technologies N9040B-550 Options:
- N9040B-550 - P50 - Preamplifier, 100 kHz to 50 GHz
- N9040B-550 - EA3 - Electronic attenuator up to 3.6 GHz; 1 dB steps, 0 to 24 dB (add in addition to mechanical attenuator)
- N9040B-550 - B40 - Extends the analysis bandwidth to 40 MHz
- N9040B-550 - B2X - Extends the analysis bandwidth to 255 MHz
- N9040B-550 - B5X - Extends the analysis bandwidth to 510 MHz
- N9040B-550 - FP2 - Fast power; accelerates power measurements such as ACPR; requires Option B40 or wider BW
- N9040B-550 - RT1 - Real-time analysis up to maximum available BW, basic detection; includes FMT, TQT; minimum 17.3 μs signal duration for 100% POI; requires N9040B-B2X or N9040B-B5X
- N9040B-550 - RT2 - Real-time analysis up to maximum available BW, optimum detection; includes FMT, TQT; minimum 3.517 μs signal duration for 100% POI; requires N9040B-B2X or N9040B-B5X
- N9040B-550 - RTS - Real-time I/Q data streaming; stream gap-free 16 bit I/Q data up to 255 MHz bandwidth; requires N9040B-RT1 or N9040B-RT2
- N9040B-550 - FT1 - Frequency mask trigger, basic detection; requires N9040B-B2X or N9040B-B5X; included in N9040B-RT1
- N9040B-550 - FT2 - Frequency mask trigger, optimum detection; requires N9040B-B2X or N9040B-B5X; included in N9040B-RT2
- N9040B-550 - EMC - Basic EMI precompliance; perform EMI precompliance measurements with CISPR 16-1-1 detectors and bandwidths
- N9040B-550 - SSD - Additional removable solid-state drive (SSD); provides a fully-imaged, removable SSD in addition to the one installed
- N9040B-550 - SF1 - Security features, exclude launch programs; prevents the launching of Windows programs from the instrument application
- N9040B-550 - SF2 - Security features, prohibit saving results; prevents instrument application from saving/recall of measurement results or user configurations
- N9040B-550 - CRP - Arbitrary IF out; IF out 10 to 75 MHz (in 500 kHz steps); output on Aux IF connector at rear panel
- N9040B-550 - ALV - Aux log video out; fast rise time video out; output on Aux IF connector
- N9040B-550 - YAV - Y-axis video out; screen video (0-1 volt open circuit); log video and linear video
- N9040B-550 - N9063C-1FP - Analog demodulation, fixed perpetual license
- N9040B-550 - N9063C-1TP - Analog demodulation, transportable perpetual license
- N9040B-550 - N9069C-3FP - Noise figure, fixed perpetual license (requires preamplifier)
- N9040B-550 - N9069C-3TP - Noise figure, transportable perpetual license (requires preamplifier)
- N9040B-550 - N9068C-2FP - Phase noise, fixed perpetual license
- N9040B-550 - N9068C-2TP - Phase noise, transportable perpetual license
- N9040B-550 - N9067C-1FP - Pulse measurement application, fixed perpetual license
- N9040B-550 - N9067C-1TP - Pulse measurement application, transportable perpetual license
- N9040B-550 - N9080C-1FP - LTE/LTE-Advanced FDD, standard-based one-button LTE-FDD measurements, fixed perpetual license
- N9040B-550 - N9080C-1TP - LTE/LTE-Advanced FDD, standard-based one-button LTE-FDD measurements, transportable perpetual license
- N9040B-550 - N9080C-2FP - LTE-Advanced FDD measurements, fixed perpetual license; requires N9080C-1FP
- N9040B-550 - N9080C-2TP - LTE-Advanced FDD measurements, transportable perpetual license; requires N9080C-1TP
- N9040B-550 - N9082C-1FP - LTE/LTE-Advanced TDD, standard-based one-button LTE-TDD measurements, fixed perpetual license
- N9040B-550 - N9082C-1TP - LTE/LTE-Advanced TDD, standard-based one-button LTE-TDD measurements, transportable perpetual license
- N9040B-550 - N9082C-2FP - LTE-Advanced TDD measurements, fixed perpetual license; requires N9082C-1FP
- N9040B-550 - N9082C-2TP - LTE-Advanced TDD measurements, transportable perpetual license; requires N9082C-1TP
- N9040B-550 - N9073C-1FP - W-CDMA/HSPA+, standard-based one-button W-CDMA measurements, fixed perpetual license
- N9040B-550 - N9073C-1TP - W-CDMA/HSPA+, standard-based one-button W-CDMA measurements, transportable perpetual license
- N9040B-550 - N9073C-2FP - Adds HSPA measurements, fixed perpetual license; requires N9073C-1FP
- N9040B-550 - N9073C-2TP - Adds HSPA measurements, transportable perpetual license; requires N9073C-1TP
- N9040B-550 - N9073C-3FP - Adds HSPA+ measurements, fixed perpetual license; requires N9073C-1FP and N9073C-2FP
- N9040B-550 - N9073C-3TP - Adds HSPA+ measurements, transportable perpetual license; requires N9073C-1TP and N9073C-2TP
- N9040B-550 - 89601B - 89600 vector signal analysis (VSA) software, transportable license standard
- N9040B-550 - MSE - Mouse, USB interface
- N9040B-550 - KB2 - Compact keyboard, USB interface; US 65 keys
- N9040B-550 - DVR - USB DVD-ROM/CD-R/RW drive
- N9040B-550 - 1CM - Rack mount kit (light gray)
- N9040B-550 - 2CM - Rack mount kit (dark gray)
- N9040B-550 - 1CP - Rack mount kit with handles (light gray)
- N9040B-550 - 2CP - Rack mount kit with handles (dark gray)
- N9040B-550 - MLP - Minimum loss pad, 50 to 75 Ω (type-N to BNC); frequency range 9 MHz to 2 GHz
- N9040B-550 - UK6 - Commercial calibration certificate with test data
- N9040B-550 - AMG - Keysight Calibration + Uncertainties + Guardbanding (accredited cal); ISO 17025A accredited calibration
- N9040B-550 - A6J - ANSI Z540-1-1994 Calibration; ANSI Z540 compliant calibration from factory
- N9040B-550 - R-51B-001-5Z - Warranty Assurance Plan, Return-to-Keysight, 5 years
- N9040B-550 - R-51B-001-7Z - Warranty Assurance Plan, Return-to-Keysight, 7 years
- N9040B-550 - R-51B-001-10Z - Warranty Assurance Plan, Return-to-Keysight, 10 years
- N9040B-550 - R-50C-011-3 - Calibration Assurance Plan, Return-to-Keysight, 3 years
- N9040B-550 - R-50C-011-5 - Calibration Assurance Plan, Return-to-Keysight, 5 years
- N9040B-550 - R-50C-011-7 - Calibration Assurance Plan, Return-to-Keysight, 7 years
- N9040B-550 - R-50C-011-10 - Calibration Assurance Plan, Return-to-Keysight, 10 years
| Model | N9040B-550 |
|---|
El analizador de señales Keysight (Agilent) N9040B-550 cubre desde 2 Hz hasta 50 GHz, con hasta 1 GHz de ancho de banda en tiempo real y ruido de fase de -136 dBc/Hz (desplazamiento de 10 kHz).
Ideal para comunicaciones inalámbricas, radar y sistemas satelitales; compatible con PathWave y con hardware/licencias actualizables.
Testwall puede suministrar el Keysight (Agilent) N9040B-550 usado, completamente probado. Con soporte experto y entrega global, Testwall asegura instrumentos de alto rendimiento con gran fiabilidad. Contáctenos para calibración o reparación del Keysight (Agilent) N9040B-550.
