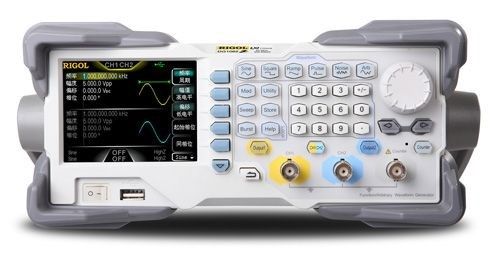

Rigol DG1062Z
Arbitrary Waveform Function Generator
2 canales Número de canales
60 MHz Frecuencia máxima
300 MSa/s Frecuencia de muestreo
14 bits Resolución vertical (DAC)
8 Mpts Longitud de memoria de forma de onda
| Atributo | Valor |
|---|---|
| Número de canales | 2 canales |
| Frecuencia máxima | 60 MHz |
| Frecuencia de muestreo | 300 MSa/s |
| Resolución vertical (DAC) | 14 bits |
| Longitud de memoria de forma de onda | 8 Mpts |
| Formas de onda integradas | 160 formas de onda integradas |
| Impedancia de salida | 50 Ω |
| Amplitud de salida | 1 mVpp a 20 Vpp (en carga de alta impedancia) |
| Pantalla | Pantalla TFT LCD a color de 4,3 pulgadas |
| Interfaces de comunicación | USB Host, USB Device, LAN (LXI) |
| Model | DG1062Z |
|---|
Rigol Technologies, Inc. introduces the DG1000Z series Waveform Generators, adding to its extensive portfolio of feature rich test and measurement equipment. Powered by Rigol's innovative SiFi technology, the DG1000Z is ideal for low frequency testing applications requiring high signal fidelity, low noise floor and long arbitrary waveform length. The 2 channel DG1000Z series features Best-In-Class memory depth of 8Mpts (16 Mpts. optional) to facilitate deeper, more intricate arbitrary waveforms and includes up to 160 built-in waveforms for quick and easy access to more predefined signals. These generators provide +/-1ppm frequency stability and -125dBc/Hz phase noise for high signal fidelity and low noise, predictable signal generation. The DG1000Z series delivers up to 200 MSa/s sample rate and 14 bits vertical resolution allowing users to achieve fine resolution and signal detail while emulating small voltage changes on a large output range. Available in two models, DG1032Z (30MHz) and DG1062Z (60MHz), these generators offer a wide range of modulations including AM, FM, PM, ASK, FSK, PSK and PWM.
