Rigol

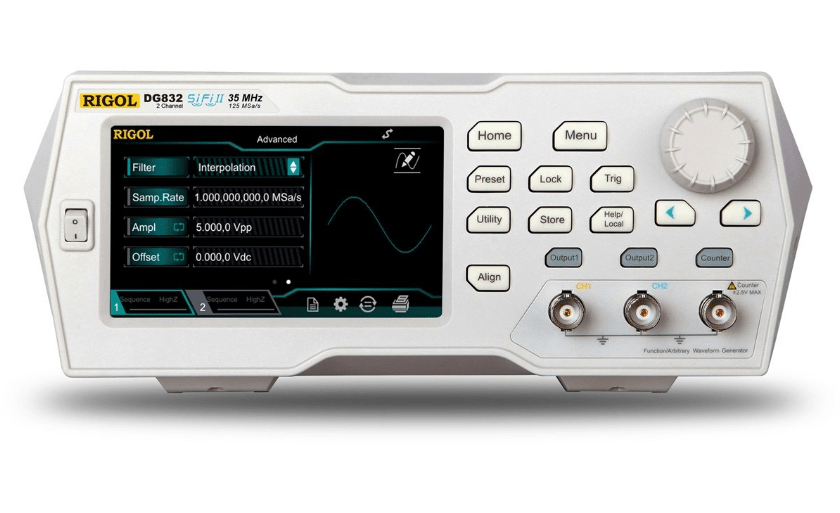

Rigol DG832
High quality two channel function / arbitrary waveform generator with 35 MHz bandwidth, 125 MSa/s and 2 Mpts memory (up to 8Mpts as option).
2 Número de canales
35 MHz Frecuencia máxima
16 bits Resolución vertical (DAC)
266 MSa/s Frecuencia de muestreo
16 kpts Longitud de memoria de forma de onda
| Atributo | Valor |
|---|---|
| Número de canales | 2 |
| Frecuencia máxima | 35 MHz |
| Resolución vertical (DAC) | 16 bits |
| Frecuencia de muestreo | 266 MSa/s |
| Longitud de memoria de forma de onda | 16 kpts |
| Formas de onda integradas | 160 formas de onda predefinidas |
| Impedancia de salida | 50 Ω |
| Amplitud de salida máxima | 20 Vpp (en carga de alta impedancia) |
| Modulaciones soportadas | AM, FM, PM, ASK, FSK, PSK, PWM |
| Interfaz de comunicación | USB Host, USB Device, LAN (LXI) |
| Model | DG832 |
|---|
The DG800 redefines the entry level waveform generator by bringing advanced capabilities like 16 bit high resolution, intuitive touch screen control, and a quiet fanless design to our most affordable line of generators. Add SiFi II point-to-point sampling technology and 2 MPts of standard arb memory and the DG800 Series delivers a powerful low cost generator for students and engineers alike.
