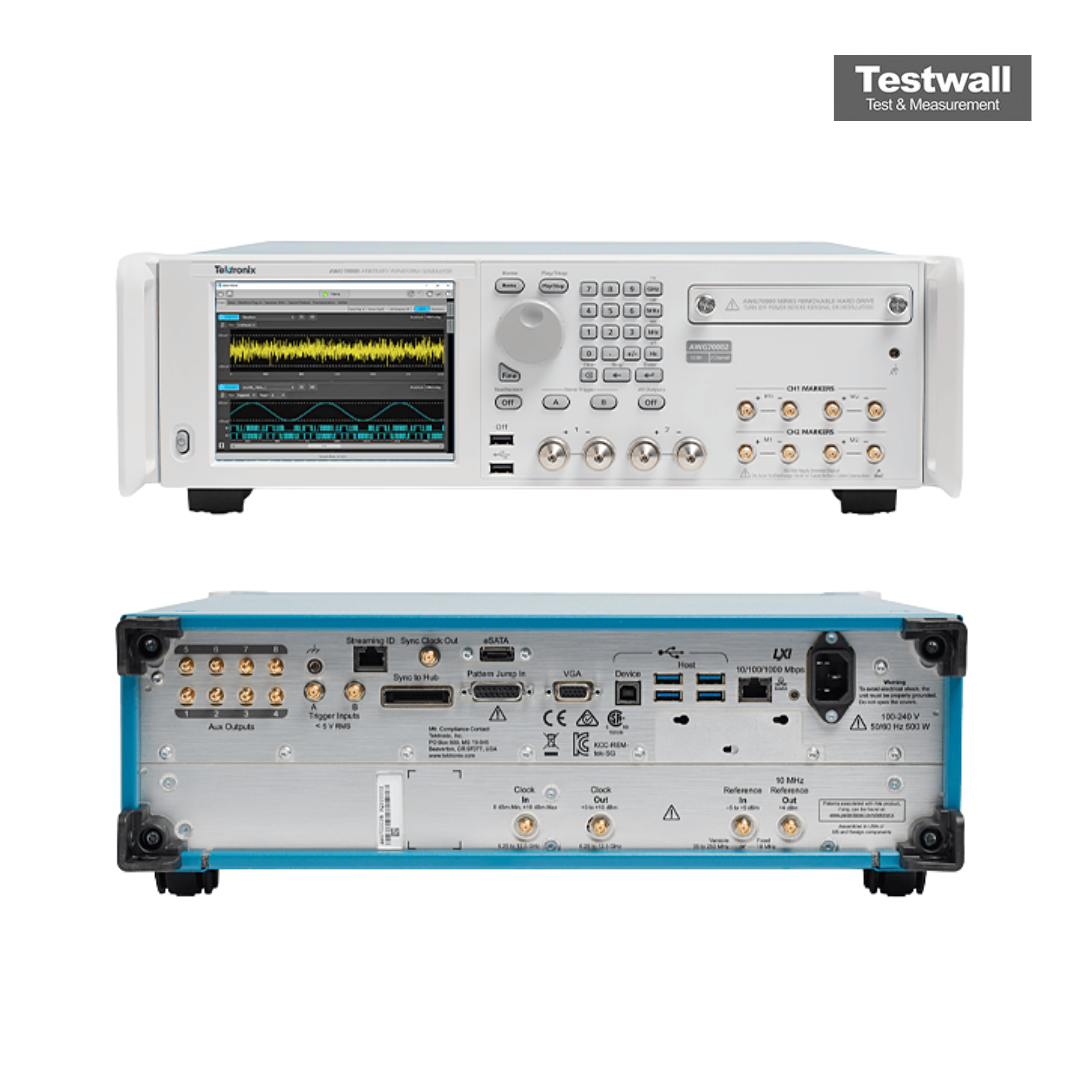

Tektronix AWG70002B
| Atributo | Valor |
|---|---|
| Frecuencia de muestreo máxima | 25 GS/s |
| Ancho de banda analógico | 10 GHz |
| Número de canales | 2 canales |
| Resolución vertical (DAC) | 10 bits |
| Longitud de memoria por canal | 2 GSa (ampliable a 32 GSa) |
| Amplitud de salida máxima | 0,5 Vpp (en modo de alta velocidad) / 1 Vpp (en modo de baja amplitud) |
| Tiempo de subida de la señal | 35 ps (típico) |
| Resolución de frecuencia | 1 µHz |
| Interfaz y conectividad | USB, LAN (LXI), PCIe |
| Sistema operativo | Windows 10 de 64 bits |
Tektronix AWG70002B Options:
- AWG70002B - AWG70000-208 - 8 GS/s Sample Rate
- AWG70002B - AWG70000-216 - 16 GS/s Sample Rate
- AWG70002B - AWG70000-225 - 25 GS/s Sample Rate
- AWG70002B - AWG70000-MEM - Waveform record length expansion to 16 G per channel
- AWG70002B - AWG70002B SEQ - Adds Sequencing
- AWG70002B - AWG70002B STRID - Adds Streaming ID (requires AWG70002B SEQ)
- AWG70002B - Opt. A0 - North America power plug (115 V, 60 Hz)
- AWG70002B - Opt. A1 - Universal Euro power plug (220 V, 50 Hz)
- AWG70002B - Opt. A2 - United Kingdom power plug (240 V, 50 Hz)
- AWG70002B - Opt. A3 - Australia power plug (240 V, 50 Hz)
- AWG70002B - Opt. A4 - North America power plug (240 V, 50 Hz)
- AWG70002B - Opt. A5 - Switzerland power plug (220 V, 50 Hz)
- AWG70002B - Opt. A6 - Japan power plug (100 V, 50/60 Hz)
- AWG70002B - Opt. A10 - China power plug (50 Hz)
- AWG70002B - Opt. A11 - India power plug (50 Hz)
- AWG70002B - Opt. A12 - Brazil power plug (60 Hz)
- AWG70002B - Opt. A99 - No power cord
- AWG70002B - Opt. L0 - English manual
- AWG70002B - Opt. L5 - Japanese manual
- AWG70002B - Opt. L7 - Simplified Chinese manual
- AWG70002B - Opt. L8 - Traditional Chinese manual
- AWG70002B - Opt. L10 - Russian manual
- AWG70002B - Opt. L99 - No manual
- AWG70002B - Opt. C3 - Calibration Service 3 Years
- AWG70002B - Opt. C5 - Calibration Service 5 Years
- AWG70002B - Opt. D1 - Calibration Data Report
- AWG70002B - Opt. D3 - Calibration Data Report 3 Years (with Opt. C3)
- AWG70002B - Opt. D5 - Calibration Data Report 5 Years (with Opt. C5)
- AWG70002B - Opt. G3 - Complete Care 3 Years (includes loaner, scheduled calibration, and more)
- AWG70002B - Opt. G5 - Complete Care 5 Years (includes loaner, scheduled calibration, and more)
- AWG70002B - Opt. R3 - Repair Service 3 Years (including warranty)
- AWG70002B - Opt. R5 - Repair Service 5 Years (including warranty)
- AWG70002B - AWG702BUP SSD - Replacement / additional Solid State Disc Drive
- AWG70002B - AWG702BUP MEM - Increases waveform record length to 16 G per channel
- AWG70002B - AWG702BUP 0816 - Increases sampling rate from 8 GS/s to 16 GS/s
- AWG70002B - AWG702BUP 0825 - Increases sampling rate from 8 GS/s to 25 GS/s
- AWG70002B - AWG702BUP 1625 - Increases sampling rate from 16 GS/s to 25 GS/s
- AWG70002B - AWG702BU SEQ - Adds Sequencing
- AWG70002B - AWG702BU STRID - Adds Streaming ID
| Model | AWG70002B |
|---|

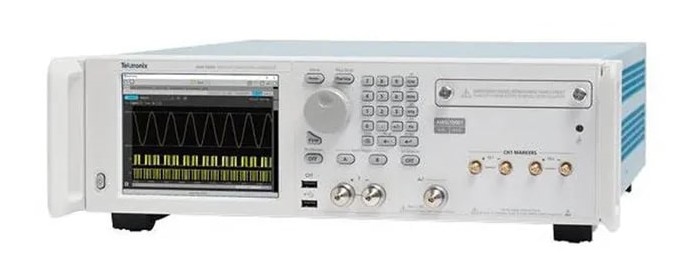

TEKTRONIX AWG70002B Arbitrary Waveform Generator
The Tektronix AWG70002B arbitrary waveform generators represent the cutting edge for sample rate, signal fidelity, and waveform memory, making them ideal for design, testing, and operations of complex components, systems and experiments. Applications include wideband RF/MW for communications and defense electronics, validation and compliance testing of high speed silicon and communications devices, as well as leading edge research in electronics, physics & chemistry. Using the LXI Web Interface, you can connect to the Tektronix AWG70002B arbitrary waveform generator through a standard web browser by simply entering the AWG's IP address in the address bar of the browser.
If a waveform can be defined or captured, then the Tektronix AWG70002B can generate the signal. With up to 25 GS/s and 10-bit vertical resolution, it delivers the industry's best signal stimulus solution for easy generation of ideal, distorted, and "real-life" signals. Create high speed baseband signals for optical transmission with the vertical resolution to handle higher order complex modulation. Create long waveforms scenarios without building complex sequences, generate high precision RF signals and Simulate real-world analog effects on high speed digital data streams. Waveform creation plug-ins, which are optimized to work specifically the Tektronix AWG70002B, provide specific waveform creation capabilities, while 3rd party solutions like MATLAB, Excel, or others, have the flexibility to create any waveform you desire.
Specifications for the TEKTRONIX AWG70002B Arbitrary Waveform Generator Include:
| Frequency Output | 10 GHz |
| Sample rate | 1.5 kS/s - 25 GS/s |
| Waveform memory | 2 GSamples (up to 16 GSamples) |
| DAC Resolution | 8-bit, 9-bit, or 10-bit |
