Rigol

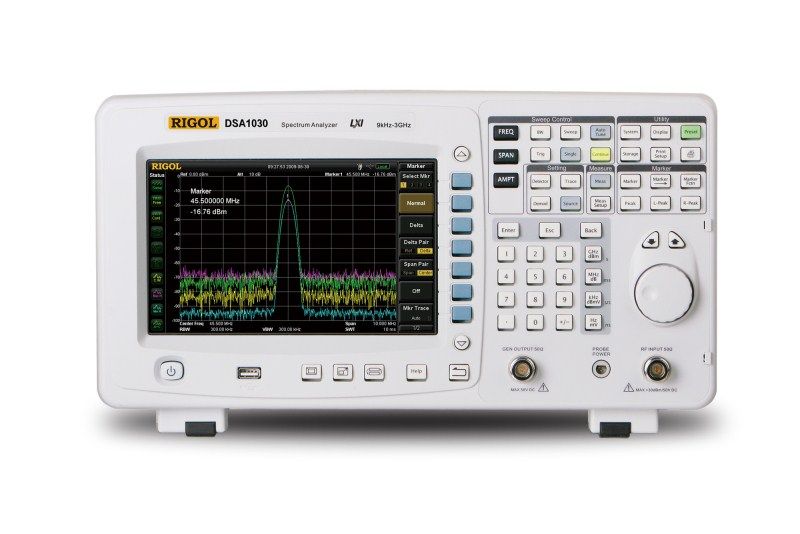

Rigol DSA1030
3 GHz Spectrum Analyzer
9 kHz – 3 GHz Rango de frecuencia
-135 dBm a +20 dBm Rango de amplitud
100 Hz – 1 MHz Ancho de banda de resolución (RBW)
1 Hz – 1 MHz Ancho de banda de vídeo (VBW)
-135 dBm/Hz (típico) Nivel de ruido promedio mostrado (DANL)
| Atributo | Valor |
|---|---|
| Rango de frecuencia | 9 kHz – 3 GHz |
| Rango de amplitud | -135 dBm a +20 dBm |
| Ancho de banda de resolución (RBW) | 100 Hz – 1 MHz |
| Ancho de banda de vídeo (VBW) | 1 Hz – 1 MHz |
| Nivel de ruido promedio mostrado (DANL) | -135 dBm/Hz (típico) |
| Precisión de amplitud | ±1,5 dB (típico) |
| Pantalla | LCD TFT de 8 pulgadas, resolución 800 × 600 |
| Interfaz de comunicación | USB, LAN (Ethernet), VGA |
| Dimensiones | 399 mm × 197 mm × 159 mm |
| Peso | Aproximadamente 9,9 kg |
| Model | DSA1030 |
|---|
The DSA1030 series is an economic spectrum analyzer, ideal for general purpose benchtop and field applications where signals and concepts can be investigated at or below 3 GHz. Our use of digital IF technology guarantees the reliability and performance required to meet these RF applications. With its exceptional value and surprising price for a complete spectrum analyzer it is widely used in electronic manufacture, maintenance, RF education, and R&D.
