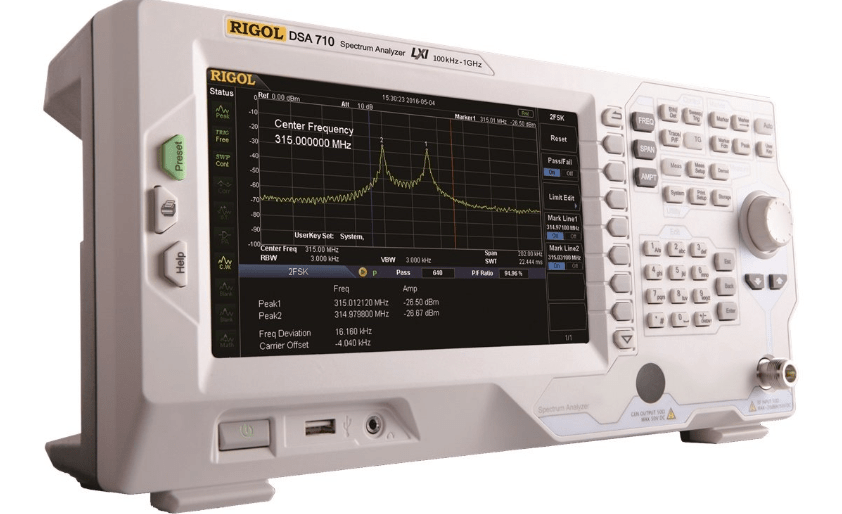

Rigol DSA710
High quality spectrum analyzer from 100 kHz to 1 GHz.
100 kHz – 1 GHz Rango de frecuencia
-135 dBm a +20 dBm Rango de amplitud
100 Hz – 1 MHz Ancho de banda de resolución (RBW)
-135 dBm (típico, con preamp desactivado) Nivel de ruido promedio mostrado (DANL)
LCD TFT de 8 pulgadas, resolución 800 × 600 Pantalla
| Atributo | Valor |
|---|---|
| Rango de frecuencia | 100 kHz – 1 GHz |
| Rango de amplitud | -135 dBm a +20 dBm |
| Ancho de banda de resolución (RBW) | 100 Hz – 1 MHz |
| Nivel de ruido promedio mostrado (DANL) | -135 dBm (típico, con preamp desactivado) |
| Pantalla | LCD TFT de 8 pulgadas, resolución 800 × 600 |
| Puertos de entrada/salida | USB Host, USB Device, LAN (LXI), VGA |
| Impedancia de entrada | 50 Ω |
| Ancho de banda de vídeo (VBW) | 1 Hz – 3 MHz |
| Rango dinámico | ≥ 95 dB |
| Alimentación | 100–240 V CA, 50/60 Hz |
| Model | DSA710 |
|---|
The Rigol DSA710 is a compact and light weight Spectrum Analyzer with premium performance for portable applications. The use of digital IF (intermediate frequency) technology guarantees reliability and performance to meet the most demanding RF applications. The very large display (20.3 cm / 8") of the Rigol DSA710 Spectrum Analyzer provides a resolution of 800x480 pixels allowing a very good overview of all its comfortable functions like Auto Tune, Auto Range, Auto Scale and Auto Couple. These functions enable the analyzer to acquire signals and match parameters automatically, compared to the manual process necessary with a traditional analyzer. The Rigol Spectrum Analyzers have a sophisticated and easy to use user interface offering multiple functions for all tasks. The menu navigation is very intuitive and all functions and parameters are easy to locate thanks to the graphical interface.
| Model-Overview | DSA705 | DSA710 |
|---|---|---|
| Max. Bandwidth | 500 MHz | 1 GHz |
| EMI/QuasiPeak | optional | optional |
| Adv. Meas. Kit | optional | optional |
| Preamplifier | integrated | integrated |
| Tracking Gen. | not available | not available |
