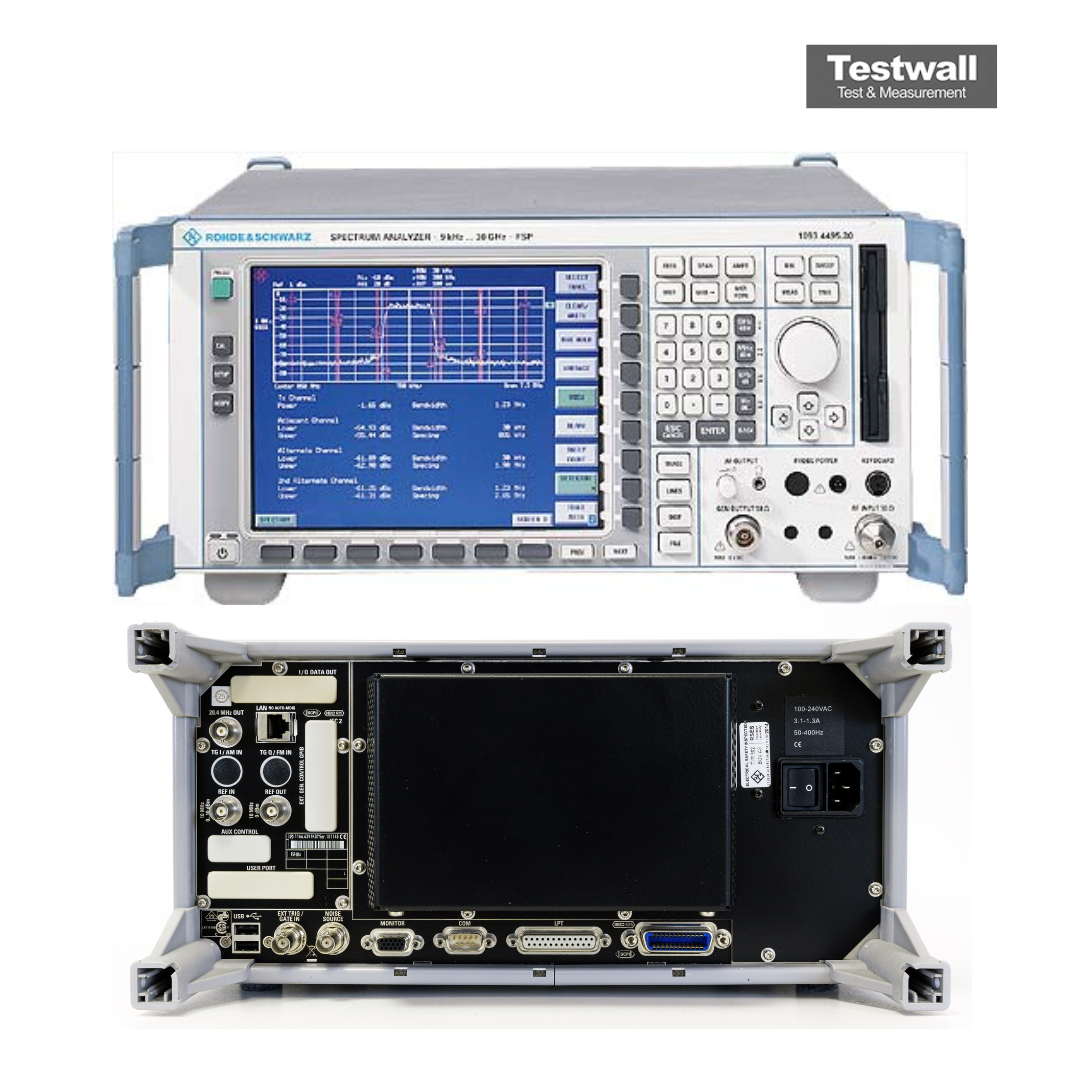

Rohde & Schwarz FSP7
| Atributo | Valor |
|---|---|
| Rango de frecuencia | 9 kHz – 7 GHz |
| Nivel de ruido mostrado promedio (DANL) | -155 dBm (típico) con preamplificador activado |
| Ancho de banda de resolución (RBW) | 10 Hz – 10 MHz |
| Ancho de banda de vídeo (VBW) | 1 Hz – 10 MHz |
| Rango dinámico | Hasta 110 dB |
| Punto de intercepción de tercer orden (TOI) | +15 dBm (típico) |
| Incertidumbre de nivel | < 0,5 dB (típico) |
| Impedancia de entrada | 50 Ω |
| Pantalla | Pantalla LCD en color de 8,4 pulgadas |
| Interfaces y conectividad | GPIB, RS-232, puerto de impresora paralelo, USB |
Rohde & Schwarz FSP7 Options:
- FSP7 - B1 - Cabinet for portable use
- FSP7 - B3 - AM/FM audio demodulator
- FSP7 - B4 - OCXO reference frequency
- FSP7 - B6 - TV trigger/RF power trigger
- FSP7 - B9 - Tracking generator
- FSP7 - B10 - External generator control
- FSP7 - B15 - Pulse calibrator
- FSP7 - B16 - LAN interface
- FSP7 - B20 - Extended environmental specification
- FSP7 - B21 - LO/IF ports for external mixers
- FSP7 - B25 - Electronic attenuator
- FSP7 - B28 - Trigger port
- FSP7 - B29 - Frequency range extension 20 Hz
- FSP7 - B30 - DC power supply
- FSP7 - B31 - Battery pack
- FSP7 - B32 - Spare battery pack
- FSP7 - B70 - Demodulation hardware memory extension
- FSP7 - FS-K4 - Phase noise measurements (Windows software)
- FSP7 - FS-K5 - Modulation and spectrum measurements on GSM/EDGE base station and mobile signals
- FSP7 - FS-K7 - AM/FM/φM measurement demodulator for general applications
- FSP7 - FS-K8 - Bluetooth transmitter measurements
- FSP7 - FS-K9 - Power sensor measurements
- FSP7 - FS-K72 - Modulation and code domain power measurements in accordance with 3GPP TS 24.141 on base station signals (Node B)
- FSP7 - FS-K73 - Modulation and code domain power measurements in accordance with 3GPP TS 25.121 on mobile station signals (UE)
- FSP7 - FS-K74 - HSDPA extension for R&S FS-K72
- FSP7 - FS-K76 - Modulation and code domain power measurements on TD-SCDMA base station signals
- FSP7 - FS-K77 - Modulation and code domain power measurements on TD-SCDMA mobile station signals (UE)
- FSP7 - FS-K82 - Modulation and code domain power measurements in accordance with CDMA2000/1xEV-DV on base station signals
- FSP7 - FS-K83 - Modulation and code domain power measurements on CDMA2000/1xEV-DV mobile station signals (UE)
- FSP7 - FS-K84 - Modulation and code domain power measurements on 1xEV-DO base station signals
- FSP7 - FS-K85 - Modulation and code domain power measurements on 1xEV-DO mobile station signals (UE)
- FSP7 - FSP-K90 - WLAN 802.11a Application Firmware
- FSP7 - FS-K30 - Noise figure measurements (application firmware), remote-controllable
| Model | FSP7 |
|---|
El Rohde & Schwarz FSP7 abarca un rango de frecuencia de 9kHz a 7GHz con un nivel de ruido de -140dBm, RBW de 10Hz a 10MHz incluyendo EMI y una incertidumbre total de medida de 0,5dB. Cuenta con una pantalla TFT a color de 21cm, la mayor en su clase, filtros digitales selectivos, FFT y detectores de cuasi-pico.
Diseñado para análisis RF avanzados, el FSP7 admite mediciones ACP, ACP multicanal, TOI, OBW y barrido con compuerta para señales TDMA, con interfaces USB, GPIB, RS-232-C y LAN opcional.
Testwall puede suministrar el Rohde & Schwarz FSP7 usado, completamente probado. Con soporte experto y entrega global, Testwall garantiza instrumentación de alto rendimiento con una fiabilidad y calidad de servicio inigualables. Contáctenos para calibración o reparación del Rohde & Schwarz FSP7.
