Siglent SVA1032X
| Fabricante | Siglent |
| Modelo | SVA1032X |
| Producto | Network Analyzer, 9 kHz to 3.2 GHz |
| Tipo | Usado |

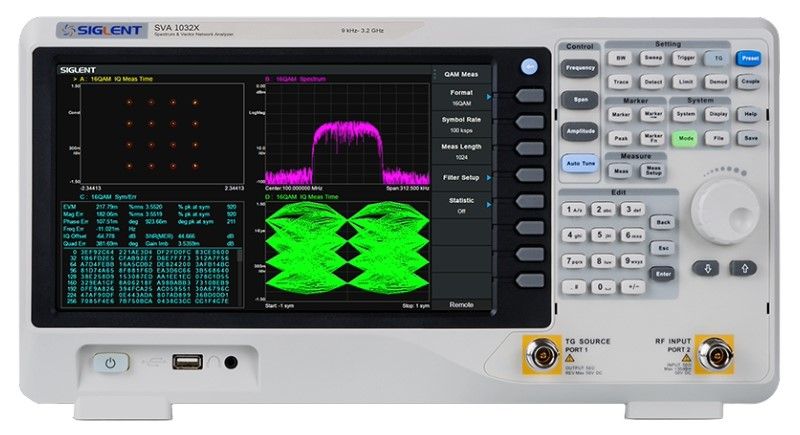

Siglent SVA1032X Network Analyzer
The Siglent SVA1032X Network Analyzer is a powerful and flexible tool for broadcast and RF device / system testing. With a wide frequency range covering 9 kHz to 3.2 GHz, the analyzer delivers reliable automatic measurements and plenty of features including a tracking generator and multiple modes of operation. Siglent SVA1032X Network Analyzer offers low background noise, and a standard built-in preamplifier. SVA1032X easily measures the scattering parameters S11 and S21.
The Siglent SVA1032X Network Analyzer is a swept super-heterodyne spectrum analyzer and a vector network analyzer both. Optional functions include, a Frequency Domain Reflectometer based distance-to-fault locator, and a modulation analyzer. Applications include broadcast monitoring/ evaluation, site surveying, EMI pre-compliance, research and development, education, production and maintenance. The Siglent SVA1032X Network Analyzer has a sophisticated and easy to use user interface offering multiple functions for all tasks. The menu navigation is very intuitive and all functions and parameters are easy to locate thanks to the graphical interface.
Specifications for the Siglent SVA1032X Network Analyzer Include:
| Frequency Range | 9 kHz to 3.2 GHz |
| Resolution Bandwidth (RBW) | 1 Hz to 1 MHz, in 1-3-10 sequence |
| Phase Noise | < -98 dBc/Hz @ 1 GHz, 10 kHz offset |
| Total Amplitude Accuracy | < 0.7 dB |
