Sorensen IB-4-800-100-200
High Performance Regenerative DC Power System, 800V, 200A, 100kW
800 V Voltaje de salida
100 A Corriente de salida
200 W Potencia de salida
4 Número de canales
Fuente de alimentación programable de CC Tipo de fuente de alimentación
| Atributo | Valor |
|---|---|
| Voltaje de salida | 800 V |
| Corriente de salida | 100 A |
| Potencia de salida | 200 W |
| Número de canales | 4 |
| Tipo de fuente de alimentación | Fuente de alimentación programable de CC |
| Interfaz de control | Analógica / Programable |
| Regulación de línea | ≤ 0,01% + 2 mV |
| Regulación de carga | ≤ 0,01% + 2 mV |
| Temperatura de operación | 0 °C a 50 °C |
| Cumplimiento normativo | CE, RoHS |
Sorensen IB-4-800-100-200 Options:
- IB-4-800-100-200 - IB-S-800-100 - 800V DC Rectifier Source, 100 kW (Min. 80kW Source Required for IB-4-800-100-200)
- IB-4-800-100-200 - IB-S-800-160 - 800V DC Rectifier Source, 160 kW
- IB-4-800-100-200 - IB-S-800-250 - 800V DC Rectifier Source, 250 kW
- IB-4-800-100-200 - IB-S-800-320 - 800V DC Rectifier Source, 320 kW
- IB-4-800-100-200 - IB-S-800-400 - 800V DC Rectifier Source, 400 kW
- IB-4-800-100-200 - IB-S-800-500 - 800V DC Rectifier Source, 500 kW
- IB-4-800-100-200 - IB-CAB-USA-100 - UL-489 Compliant Cabinet, 100kW Version USA / Canada
- IB-4-800-100-200 - IB-CAB-USA-160 - UL-489 Compliant Cabinet, 160kW Version USA / Canada
- IB-4-800-100-200 - IB-CAB-USA-250 - UL-489 Compliant Cabinet, 250kW Version USA / Canada
- IB-4-800-100-200 - IB-CAB-USA-320 - UL-489 Compliant Cabinet, 320kW Version USA / Canada
- IB-4-800-100-200 - IB-CAB-USA-400 - UL-489 Compliant Cabinet, 400kW Version USA / Canada
- IB-4-800-100-200 - IB-CAB-USA-500 - UL-489 Compliant Cabinet, 500kW Version USA / Canada
- IB-4-800-100-200 - IB-CAB-USA-650 - UL-489 Compliant Cabinet, 650kW Version USA / Canada
- IB-4-800-100-200 - IB-PDSB-CAB-USA - UL-489 Compliant Power Distribution Switch Box USA / Canada
- IB-4-800-100-200 - IB-M-AC-IN-480 - 480VAC ±10%, 3-Phase Input; 480VAC ± 10% standard mains voltage of 3/PE, for 2-Channel and 4-Channel Units
- IB-4-800-100-200 - IB-IF-ETHERCAT - EtherCAT Interface (2 each RJ45 Connectors); 100 Mbit/s Transmission Rate
- IB-4-800-100-200 - IB-IF-PROFIBUS - Profibus Interface (9-pin DSUB Connector); 12 Mbit/s Transmission Rate
- IB-4-800-100-200 - IB-IF-PROFINET - Profinet Interface (2 each RJ45 Connectors); 12 Mbit/s Transmission Rate
- IB-4-800-100-200 - IB-IF-HSCAN - High-Speed CAN Bus Interface (1 kHz Rate)
- IB-4-800-100-200 - IB-IF-ANALOG-IN - Analog Input Signal (Voltage = 0-10V Full Scale; Current = ±10V Full Scale)
- IB-4-800-100-200 - IB-IF-ANALOG-OUT - Analog Output Signal (Voltage = 0-10V Full Scale; Current = ±10V Full Scale)
- IB-4-800-100-200 - IB-RC-100MB-VPN - Remote Control VPN for AMETEK Maintenance
- IB-4-800-100-200 - IB-RC-100-RENT - Rental fee for remote service module (Tosi-Box); provision of the remote service module to install a software update on the B&R controller
- IB-4-800-100-200 - IB-REMOTEUPDATE - Software Adjustment via Remote Control (Lead time approx. 2 weeks)
- IB-4-800-100-200 - IB-TEAM-VIEW - Software adjustment via Teamviewer; communication PC with Internet access required on site (Lead time approx. 2 weeks)
- IB-4-800-100-200 - IB-IF-LABVIEW - LabVIEW (NI) Interface with USB to CAN Converter
- IB-4-800-100-200 - IB-IF-MATLAB - MATLAB/Simulink Interface, includes PC and B&R Automation Studio Software
- IB-4-800-100-200 - IB-IMD-4CH - Insulation Monitoring Device with Selective Shutdown for 4-Channel Unit Only; Monitors DUT and Shuts Down Output when Leakage Resistance falls below 100k ohms. Special software and PDSB required
- IB-4-800-100-200 - IB-4-ISO-5M - Increase insulation resistance of 4-Channel to >5 MΩ; adjustment of series resistors of measuring transducer rectifier and 4x adjustment of series resistances of measuring transducer DC converter
- IB-4-800-100-200 - IB-BAT-S-800 - Battery Simulator for 800V Systems; one each required per channel; output filter optimized for battery simulation by additional electrolytic capacitors
- IB-4-800-100-200 - IB-BAT-TS-800 - Battery Tester/Simulator for 800V Systems; one each required per channel; output filter optimized by switching in capacitors for tester or simulator modes
- IB-4-800-100-200 - IB-DC-1000 - Output Contactors with Increased Short-time Withstand Current; one each required per channel; Vnom 1500V, thermal continuous current 1000A, short-time withstand current ICW 8kA
- IB-4-800-100-200 - IB-MEAS-05-CERT - 0.05% Measurement Accuracy, Test Certificate Included; required for each channel
- IB-4-800-100-200 - IB-FC-DINT-1000 - Protection Diode Mounted in Cabinet; only for 2-Channel or 4-Channel systems; Maximum Rating 1000V / 1000A, for Fuel Cell Testing; cabinet width increases by 200mm
- IB-4-800-100-200 - IB-ESTOP-PL-D - Change of safe shutdown time (Emergency Stop); standard setting 5 sec, range 0.5 to 100sec; includes verification of safety controller software to confirm Performance Level d per DIN EN 13849
- IB-4-800-100-200 - IB-ESTOP-2CON - Emergency Stop (E-STOP) Switch (yellow/red) with Protective Collar installed in control cabinet door; includes two potential-free normally open contact connections
- IB-4-800-100-200 - IB-ESTOP-DOORCON - Door Closed Contacts; E-STOP activated when cabinet doors open; only available on 2-Channel and 4-Channel systems; one required for each cabinet
- IB-4-800-100-200 - IB-MAG-SAFEDOOR - Magnetic Door Safety Interlocks; doors cannot be opened while AC Mains switch is on; only available on 2-Channel and 4-Channel systems; one required for each cabinet
- IB-4-800-100-200 - IB-DOOR-LOCK - Keyed Door Locks per Cabinet
- IB-4-800-100-200 - IB-CAB-LAMP - Cabinet Lamp; cabinet lighting with motion sensor mounted on the cabinet ceiling in the front area; one per cabinet
- IB-4-800-100-200 - IB-CAB-BASE-200 - Cabinet Base Frame; raises the cabinet base 200mm to accommodate large cross-section cable entry; one per cabinet
- IB-4-800-100-200 - IB-CAB-WHEELS - Cabinet Wheels; four wheeled castors per cabinet, two with stop latches; adds 182mm to cabinet height
- IB-4-800-100-200 - IB-LIFT-LUGS - Add 4 Lifting Lugs per Cabinet per DIN 580/582; not available for cabinets >1000 kg
- IB-4-800-100-200 - IB-CBOX-800-19800 - External Capacitor Box, 800V, 19,800 uF, plastic enclosure, includes discharge resistors and 5m cables with M10 ring lugs for connection to DUT
- IB-4-800-100-200 - IB-CBOX-800-20360 - External Capacitor Box, 800V, 20,360 µF, metal enclosure, includes discharge resistors and 5m cables with M10 ring lugs for connection to DUT
- IB-4-800-100-200 - IB-CBOX-1000-8100 - External Capacitor Box, 1000V, 8100 uF, plastic enclosure, includes discharge resistors and 5m cables with M10 ring lugs for connection to DUT
- IB-4-800-100-200 - IB-CBOX-P-1000-20000 - External Capacitor Box, 1000V, 20,000 µF, plastic enclosure, includes discharge resistors and 5m cables with M10 ring lugs for connection to DUT
- IB-4-800-100-200 - IB-CBOX-1000-9660 - External Capacitor Box, 1000V, 9,660 uF, metal enclosure, includes discharge resistors and 5m cables with M10 ring lugs for connection to DUT
- IB-4-800-100-200 - IB-CBOX-1100-2500 - External Capacitor Box, 1100V, 2500 uF, metal enclosure, includes discharge resistors and 5m cables with M10 ring lugs for connection to DUT
- IB-4-800-100-200 - IB-CBOX-M-1100-5800 - External Capacitor Box, 1100V, 5800 uF, metal enclosure, includes discharge resistors and 5m cables with M10 ring lugs for connection to DUT
| Model | IB-4-800-100-200 |
|---|

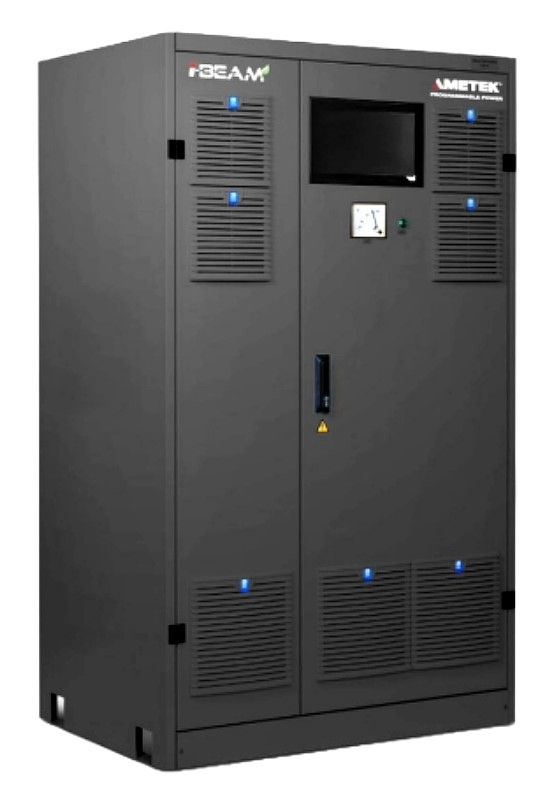

SORENSEN IB-4-800-100-200 High Performance Regenerative DC Power System
The Sorensen i-BEAM IB-4-800-100-200 High Performance Regenerative DC Power System features full DC source and sink capabilities with the power level of 100 kW. It's designed for testing today's complex, high power electronics for the automotive, energy storage, industrial, and aerospace markets in a variety of applications. The IB-4-800-100-200 features a color TFT touchscreen with a menu-driven interface for seamless control of system settings. It allows users to set and measure voltage, current, power, and internal resistance values directly through the touchscreen. Programmable voltage and cur ramps, along with the ability to store them for repeated use, enhance flexibility. The system enables setting under voltage limits to prevent deep discharge, safeguarding battery packs. Additionally, event logs provide a comprehensive history of system actions, warnings, and faults.
The Sorensen i-BEAM IB-4-800-100-200 High Performance Regenerative DC Power System platform covers test needs through the product life cycle from battery simulation, battery testing (charge/discharge), DC motor testing, electric powertrain testing, fuel cell load testing, solar panel testing, testing high power fuses, contactors, circuit breakers. The IB-4-800-100-200 Single-Channel configuration power can flow in either direction, it also features a PDU which provides a remote connection between the i-BEAM and a Device Under Test (DUT) in a test cell. The PDU is configured in a free-standing cabinet and includes shutdown and reset controls, voltmeter, status light tower and a door contact that shuts the system down if the cabinet door is opened.
Specifications for the SORENSEN IB-4-800-100-200 High Performance Regenerative DC Power System Include:
| Voltage Range | 5-800 V |
| Cur Range | ± 200 A |
| Total Power | 100 kW |
