Sorensen SGA160-188
| Atributo | Valor |
|---|---|
| Tensión de salida | 160 V |
| Corriente de salida | 188 A |
| Potencia de salida | 30.000 W (30 kW) |
| Tensión de entrada | 208/220 V CA trifásico |
| Regulación de tensión | 0,05% de la tensión máxima |
| Regulación de corriente | 0,1% de la corriente máxima |
| Rizado y ruido | 0,1% RMS / 0,5% pico a pico |
| Interfaz de programación | Analógica e interfaz GPIB/RS-232 opcional |
| Temperatura de operación | 0 °C a 50 °C |
| Factor de forma | Montaje en rack 19 pulgadas |
Sorensen SGA160-188 Options:
- SGA160-188 - C - Input Voltage 187 / 242VAC, 3 Phase
- SGA160-188 - D - Input Voltage 342 / 440VAC, 3 Phase
- SGA160-188 - E - Input Voltage 396 / 528VAC, 3 Phase
- SGA160-188 - 0A - No Remote Control Option
- SGA160-188 - 1A - IEEE-488.2 + RS-232C
- SGA160-188 - 1C - Ethernet + RS-232C
- SGA160-188 - 1D - Isolated Analog Control
- SGA160-188 - 1E - Shaft Locks (SGA series only)
- SGA160-188 - 2A - Combined Options 1A+1D
- SGA160-188 - 2C - Combined Options 1A+1E (SGA Only)
- SGA160-188 - 2G - Combined Options 1C+1D
- SGA160-188 - 2H - Combined Options 1C+1E (SGA Only)
- SGA160-188 - 2J - Combined Options 1D+1E (SGA Only)
- SGA160-188 - 3C - Combined Options 1A+1D+1E (SGA Only)
- SGA160-188 - 3G - Combined Options 1C+1D+1E (SGA Only)
- SGA160-188 - AA - No Process Option
- SGA160-188 - AB - Certificate of Calibration to ANSI / NCSL Z540-1 (includes Test Data)
- SGA160-188 - AJ - Front panel dust filter - factory installed - 3U unit only
- SGA160-188 - PF - Passive power factor correction to 0.9
- SGA160-188 - R - RoHS Compliant Version
| Model | SGA160-188 |
|---|

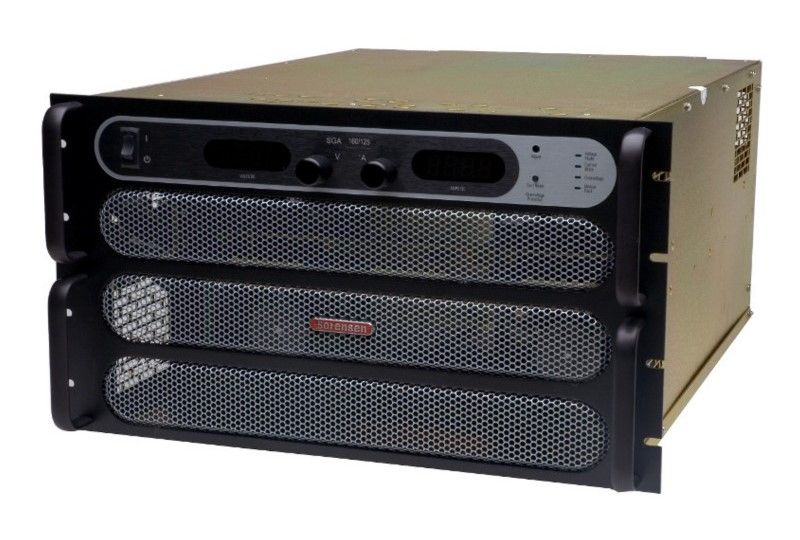

SORENSEN SGA160-188 DC Power Supply
Sorensen SGA160-188 DC Power Supply represents the next generation of high-power programmable DC power supply featuring exceptional load transient response. This power supply is designed specifically for laboratory test and systems applications requiring variable DC sources with good ripple and regulation characteristics. With a full 30 kW power, available in a 6U package the Sorensen SGA160-188 DC Power Supply leads the industry in power density. The power density is enhanced by a stylish front air intake allowing supplies to be stacked without any required clearance between units.
The Sorensen SGA160-188 DC Power Supply features a variety of user interfaces, ranging from manual front €“panel control and standard non €“isolated remote analog control, to optional GPIB, Ethernet or isolated remote analog control. This device provides essential features like 10- turn potentiometers for setting voltage and current, 3.5 digit LED readout plus front panel over-voltage protection (OVP) preview/adjustment and reset. Sorensen SGA160-188 DC Power Supply is parallelable to achieve high power levels. Paralleled units operate like one single supply providing total system current.
Specifications for the SORENSEN SGA100-100 DC Power Supply Include:
| Voltage | 160 V |
| Current | 188 A |
| Power | 24/30 kW |
| Efficiency % (Typ.) | 87% |
