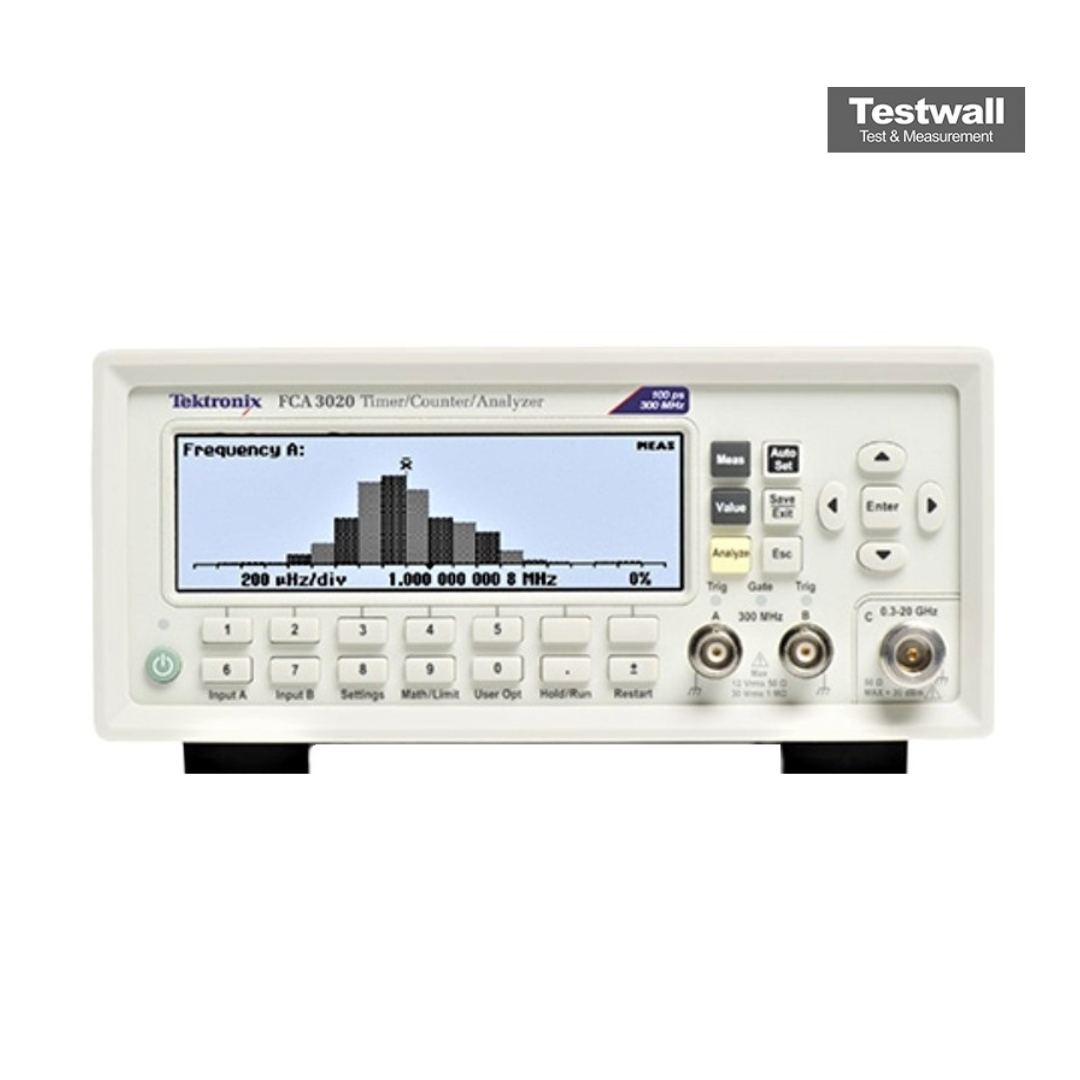

Tektronix FCA3020
| Atributo | Valor |
|---|---|
| Rango de frecuencia | DC a 20 GHz |
| Resolución de frecuencia | 12 dígitos por segundo |
| Tiempo de medición mínimo | 100 ms |
| Sensibilidad de entrada | -30 dBm (típico) a 20 GHz |
| Impedancia de entrada | 50 Ω |
| Rango de nivel de entrada máximo | +20 dBm (100 mW) |
| Canales de entrada | 3 canales (CH A, CH B y CH C) |
| Referencia de tiempo interno | Oscilador de cristal de alta estabilidad, envejecimiento ≤ 1 ppm/año |
| Interfaz de comunicación | GPIB, USB y LAN (Ethernet) |
| Pantalla | Pantalla LCD a color de 5,7 pulgadas |
Tektronix FCA3020 Options:
- FCA3020 - MS - Medium-stability Oven Time Base
- FCA3020 - HS - High-stability Oven Time Base
- FCA3020 - RP - Rear-panel Connectors
- FCA3020 - C3 - Calibration Service 3 Years
- FCA3020 - C5 - Calibration Service 5 Years
- FCA3020 - D1 - Calibration Data Report
- FCA3020 - R5 - Repair Service 5 Years
- FCA3020 - SILV400 - Standard Warranty Extended to 5 Years
- FCA3020 - A0 - Power Plug, North America
- FCA3020 - A1 - Power Plug, Universal Euro
- FCA3020 - A2 - Power Plug, United Kingdom
- FCA3020 - A3 - Power Plug, Australia
- FCA3020 - A5 - Power Plug, Switzerland
- FCA3020 - A6 - Power Plug, Japan
- FCA3020 - A10 - Power Plug, China
- FCA3020 - A11 - Power Plug, India
- FCA3020 - A12 - Power Plug, Brazil
| Model | FCA3020 |
|---|
Tektronix Frequency Counter

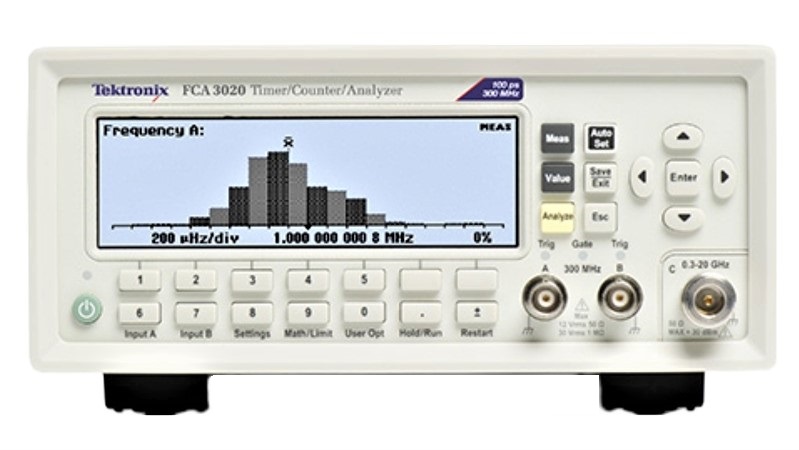

Tektronix FCA3020 Frequency Counter / Analyzer, 20 GHz, 3 Ch.
The Tektronix FCA3020 Timer/Counter/Analyzer Series pack many diffe functions into one feature-rich instrument. With industry-leading frequency and time resolution, the Tektronix FCA Series comes standard with deep internal memory and a fast data transfer rate of 250k Samples/s to internal memory. In addition, the multi-parameter display shows auxiliary measurements alongside your main measurement to provide you with the results you need at a glance. With the industry's most comprehensive analysis modes, including measurement statistics, histograms, and trend plots, you have the tools you need to quickly and accurately analyze your signal.
Timer/Counter/Analyzer 20 GHz / 100 ps
