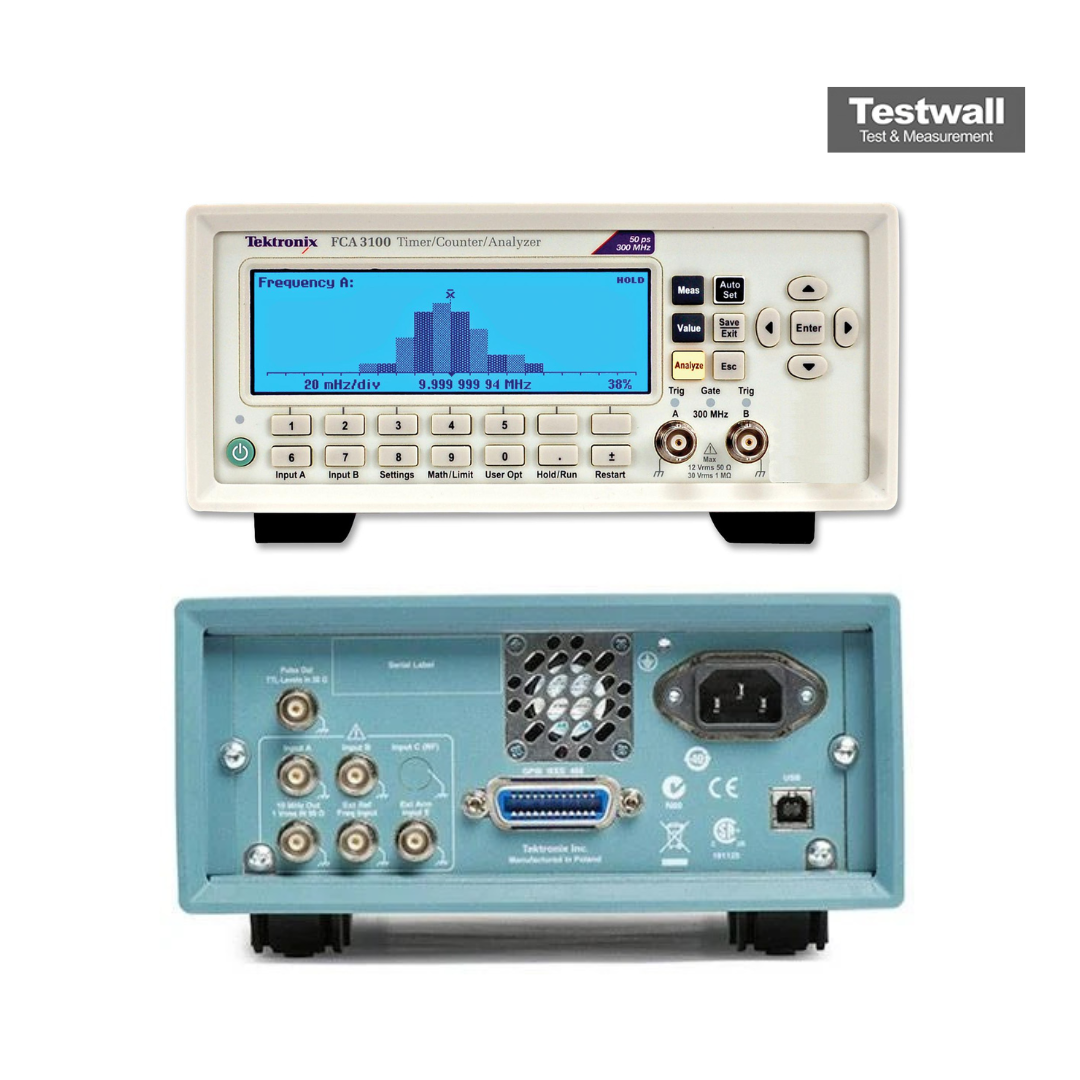

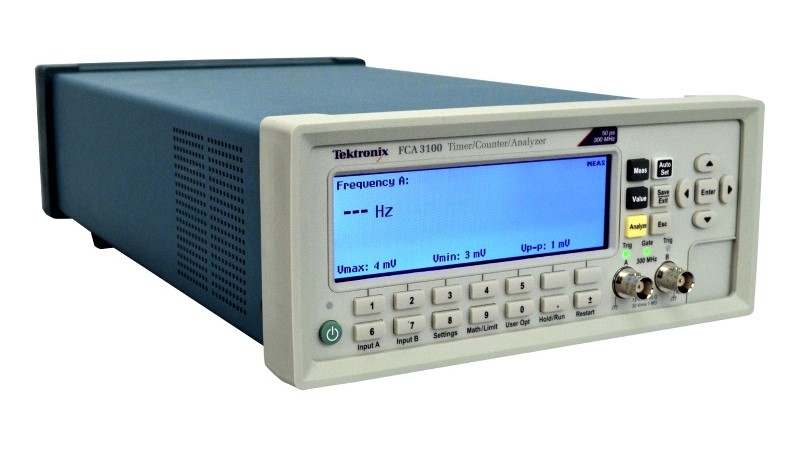

Tektronix FCA3100
| Atributo | Valor |
|---|---|
| Rango de frecuencia | DC a 3 GHz |
| Resolución de frecuencia | 12 dígitos por segundo |
| Número de canales | 3 canales (2 canales de 100 MHz + 1 canal de 3 GHz) |
| Sensibilidad de entrada (canal de microondas) | -30 dBm a 3 GHz |
| Tiempo de medición | Hasta 250.000 mediciones por segundo |
| Impedancia de entrada | 50 Ω y 1 MΩ (canales de baja frecuencia) |
| Rango de voltaje de entrada | Hasta 5 Vrms en canales de baja frecuencia |
| Referencia de tiempo interno (oscilador) | Oscilador de cristal con envejecimiento de ±1 ppm/año |
| Interfaz de comunicación | USB, GPIB y RS-232 |
| Pantalla | Pantalla LCD gráfica de alta resolución |
Tektronix FCA3100 Options:
- FCA3100 - MS - Medium-stability Oven Time Base
- FCA3100 - HS - High-stability Oven Time Base
- FCA3100 - RP - Rear-panel Connectors
- FCA3100 - C3 - Calibration Service 3 Years
- FCA3100 - C5 - Calibration Service 5 Years
- FCA3100 - D1 - Calibration Data Report
- FCA3100 - R5 - Repair Service 5 Years
- FCA3100 - SILV200 - Standard Warranty Extended to 5 Years (FCA3100)
- FCA3100 - A0 - Power Plug, North America
- FCA3100 - A1 - Power Plug, Universal Euro
- FCA3100 - A2 - Power Plug, United Kingdom
- FCA3100 - A3 - Power Plug, Australia
- FCA3100 - A5 - Power Plug, Switzerland
- FCA3100 - A6 - Power Plug, Japan
- FCA3100 - A10 - Power Plug, China
- FCA3100 - A11 - Power Plug, India
- FCA3100 - A12 - Power Plug, Brazil
- FCA3100 - E1 - Power Plug, UK and Euro
| Model | FCA3100 |
|---|
Tektronix Analyzer
Tektronix FCA3100 Frequency Counter / Analyzer, 300 MHz, 2 Ch.
The Tektronix FCA3100 Timer/Counter/Analyzer Series pack many different functions into one feature-rich instrument. With industry-leading frequency and time resolution, the FCA Series comes standard with deep internal memory and a fast data transfer rate of 250k Samples/s to internal memory. In addition, the multi-parameter display shows auxiliary measurements alongside your main measurement to provide you with the results you need at a glance. With the industry's most comprehensive analysis modes, including measurement statistics, histograms, and trend plots, you have the tools you need to quickly and accurately analyze your signal.
The Tektronix FCA3100 Series offers a zero dead-time measurement technique and continuous time stamping of trigger events. This feature is vital for mechanical and medical measurements where every single cycle must be measured. The Tektronix FCA3100 Series offers a zero dead-time counter feature to continuously stream measurement data over the GPIB/USB bus during, not after, measurement. This creates a dynamic measurement and analysis system.
Features and Specifications of the Tektronix FCA3100 includes:
- 50 ps Single-shot Time Resolution
- 12 Digit/s Frequency Resolution
- 300 MHz Timer
- 2 Input Channels
- 0.001° Phase Resolution
- 3 mV or better Voltage Resolution
- Optional 5×10–8 High-stability Oven Time Base
- 250k Sample/s Data Transfer Rate to Internal Memory(Up to 3.75M samples stored)
- Up to 15k Sample/s Data Transfer Rate over USB/GPIB Bus(Block mode)
- Up to 650 Individually Triggered Measurements/s
- Automated Measurements: Frequency, Period, Ratio, Time Interval, Time Interval Error, Pulse Width, Rise/Fall
- Time, Phase Angle, Duty Cycle, Maximum Voltage, Minimum Voltage, Peak-to-Peak Voltage
- Multi-parameter Display
- Trend Plot Mode
- Measurement Statistics Mode
- Histogram Mode
- Allan Deviation
- Zero Dead-time Frequency/Period Measurements
- Programmable Pulse Output from 0.5 Hz to 50 MHz
- Optional Rear-panel Inputs
- USB Device and GPIB Ports on Rear Panel for Quick PC Connectivity
- GPIB Interface Supports Full SCPI-compatible Programmability and offers an Emulation Mode for Plug-and-Play Replacement in Existing ATE Systems
- External Arming Input
- 10 MHz Reference Oscillator Output
- Includes National Instrument’s LabVIEW SignalExpress TE Limited Edition Software for Connecting Your Bench
- Optional TimeView Software Available for Modulation Domain Analysis
