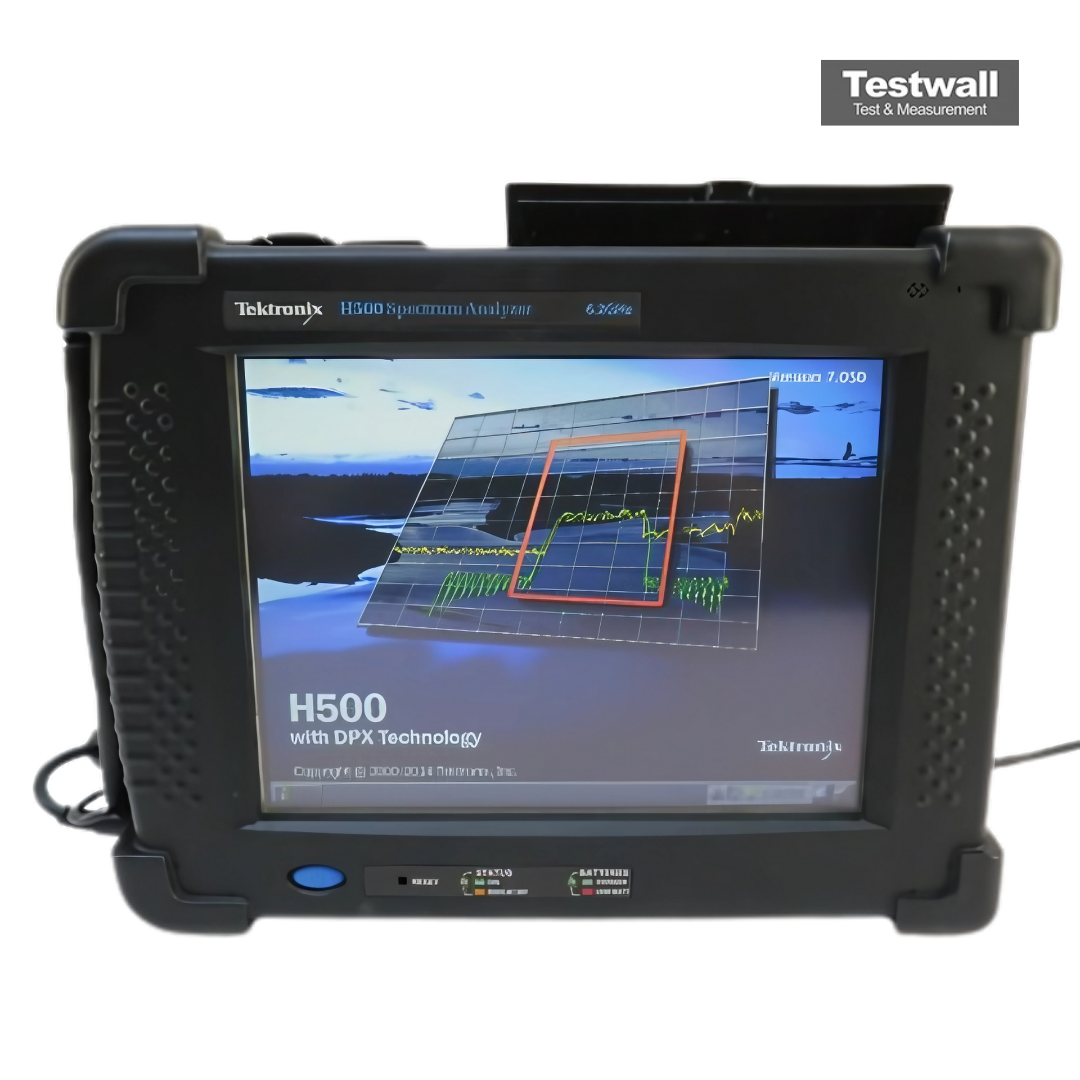

Tektronix H500

Tektronix H500 Spectrum Analyser (call for availability)

The Tektronix H500 is a real-time, spectrum Analyser with DPX™ Live RF spectrum display of 125 µs minimum signal duration for 100% Probability of Intercept (POI) and signal classification capability. The Tektronix H500 Analyser will quickly scan the RF environment, classify the known signals, and help you locate the unknown signals with its field-proven signal hunting tools. Featuring real-time DPX™ Live RF spectrum display technology, the Tektronix Analyser offers practical solutions for discovering transient events that slip past conventional spectrum Analysers. With field-ready, rugged hardware featuring outstanding displayed average noise level, spurious free dynamic range, phase noise, and easy LAN networking capability in a handheld unit, the Tektronix H500 Analyser is a great choice for general-purpose spectrum measurements and ideal signal-hunting tools.

Features and Specifications of the Tektronix H500 Spectrum Analyser include:

Scan:

Revolutionary DPX™ Live RF spectrum display technology with DPX Spectrum Mask provides intuitive understanding of live RF signals using colors based on frequency of occurrence, processing up to 10,000 spectrums/sec with a 100% Probability of Intercept (POI) to capture pulsed signals, radar emissions, hopping signals, and any other intermittent signals with a minimum duration as brief as 125 µs

Benchtop spectrum Analyser performance in a ruggedized handheld battery-operated field unit offers better than 70 dB spurious free dynamic range (SFDR), guaranteed = -95 dBc/Hz at 10 kHz offset phase noise specifications from 10 kHz to 6.2 GHz

Excellent sensitivity for detecting very low-level signals with -153 dBm DANL at 10 Hz RBW (equivalent to -163 dBm/Hz) such as RF bugs and unauthorized transmitters

Spectrum Correlation Function (SCF) finds "embedded" signals or interferers that hide under other wideband signals

LAN interface for remote control and unattended monitoring stations for spectrum awareness

Classify:

Spectral Correlation Function (SCF) measurement provides fast signal-identification capability

Built-in classification capability for WLAN, GSM, W-CDMA, CDMA, ATSC signals makes quick and simple identification of legitimate signals

Flexibility to edit, upgrade, and share signal databases and signal classification database using CSV file formats

Ability to export I/Q data into CSV, MATLAB®, and IQT format for additional post-analysis

Locate:

Rapid targeting of signals with field-proven signal hunting, mapping, and documentation tools

Hunt outdoor signals with built-in GPS receiver by plotting measurements directly into GPS geo-referenced maps such as Pitney Bowes Mapinfo, Google™ Earth, Microsoft® MapPoint®, Bitmap, and many others

Improved spectrum awareness with high-accuracy measurement synchronization and time stamping

Hunt in-building signals with a single-touch Tap-and-Walk-and-Tap interface

Backlit display, viewable in direct sunlight, and extended battery performance with hot-swappable dual batteries

Rugged design per MIL-PRF-28800F

Features:

Operating Frequency Range: 10 kHz - 6.2 GHz

Phase noise level: -95dBc/Hz @ 10kHz offsets

DANL: -145dBm in 10Hz RBW with preamp typical

Resolution bandwidth (RBW): range of 10Hz to 3MHz (Manual)

Third Order Intercept: = +7 dBm, 0 dB Input Attenuation, Preamp Off

Maximum Operating Input Level: +20dBm peak envelope power

IF Output Impedance: 50 ohm

IF Center Frequency: 140 MHz

built-in GPS receiver

Battery Life 5 hours of continuous Spectrum Mode
