Tektronix

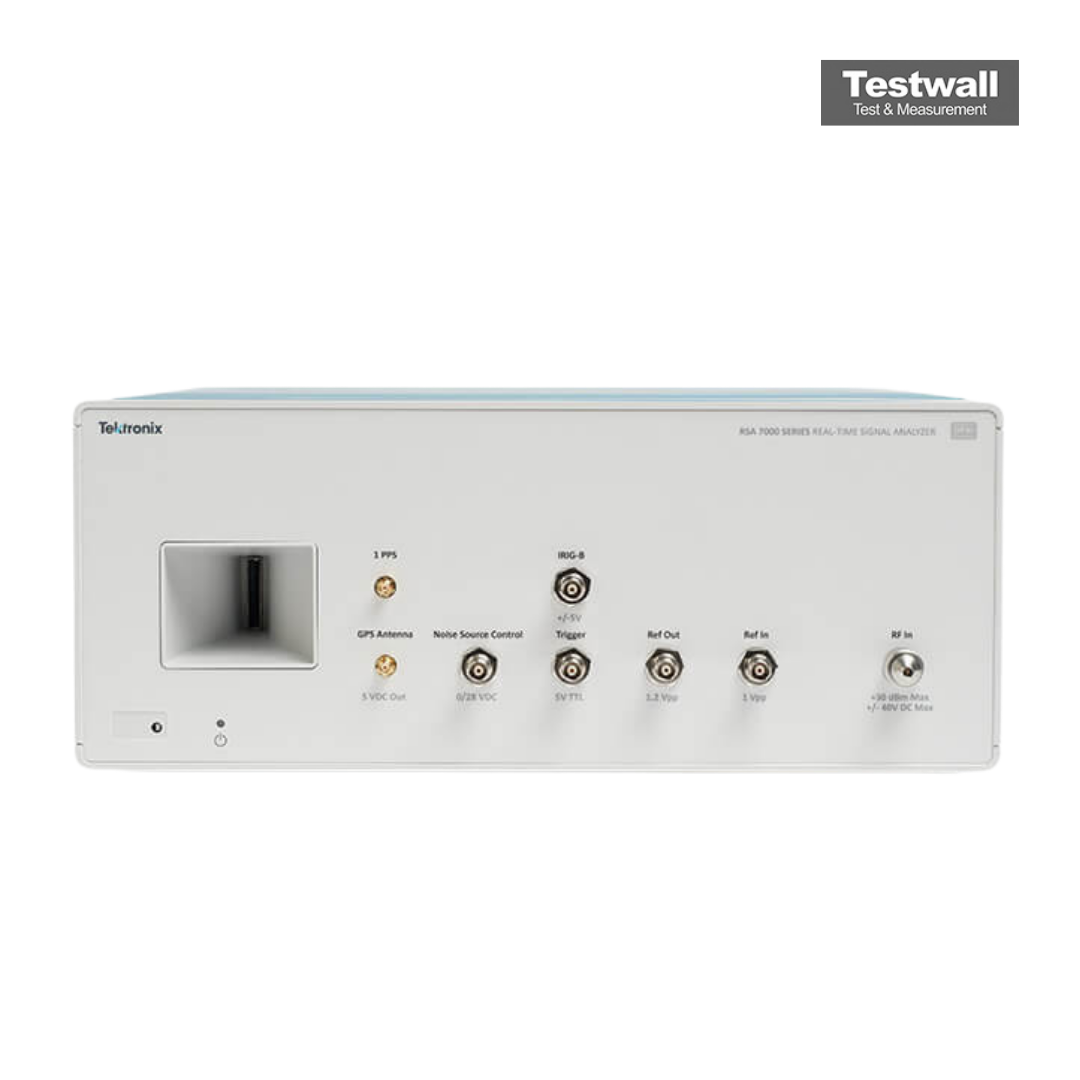

Tektronix RSA7100A

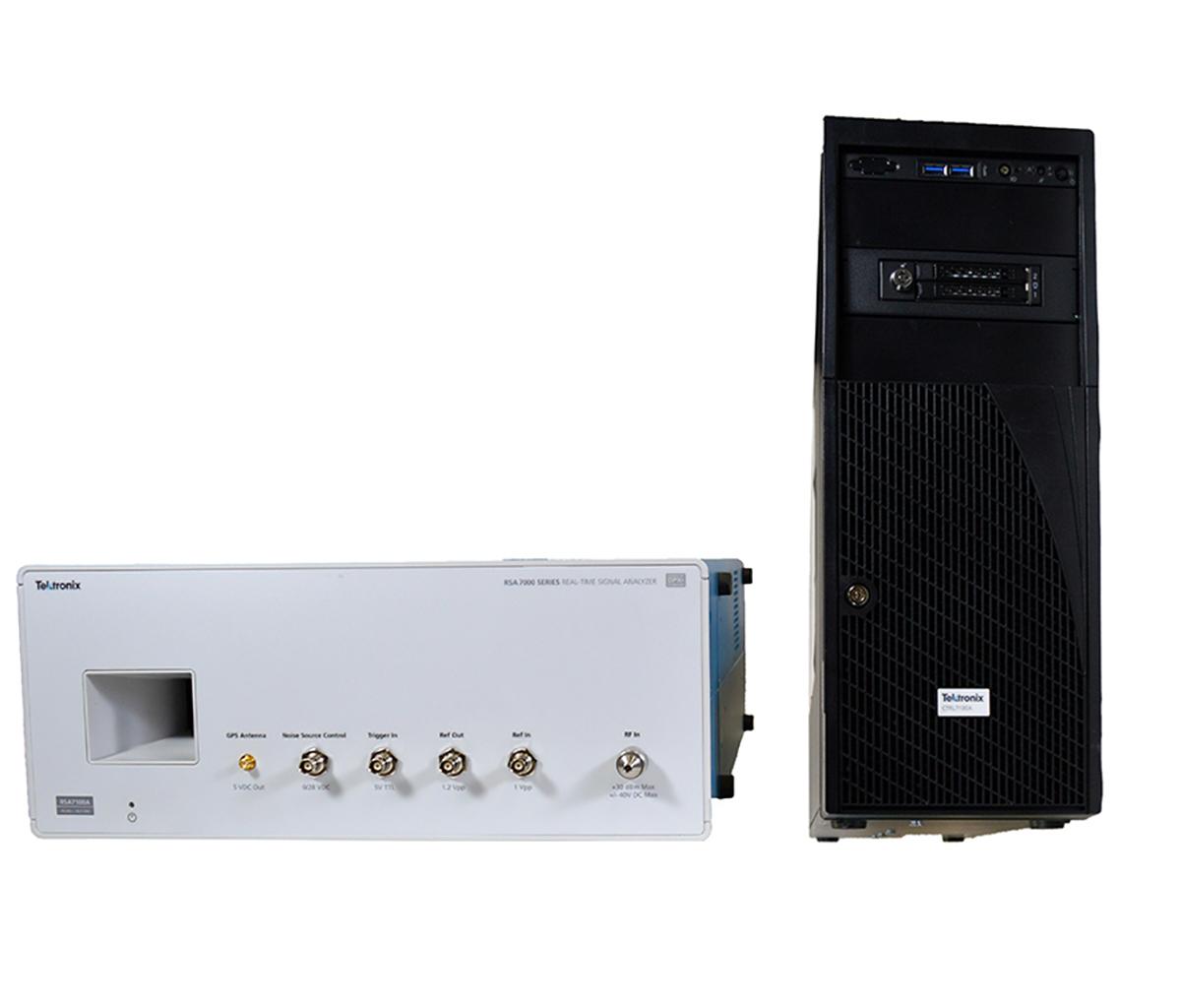

26.5 GHz Real time signal analyzer: includes CTRL7100A controller
DC a 14 GHz Rango de frecuencia
800 MHz Ancho de banda de análisis en tiempo real
-160 dBm a +30 dBm Rango de amplitud
18 dB (típico) Figura de ruido
Hasta 800 ms a 800 MHz de ancho de banda Longitud de captura
| Atributo | Valor |
|---|---|
| Rango de frecuencia | DC a 14 GHz |
| Ancho de banda de análisis en tiempo real | 800 MHz |
| Rango de amplitud | -160 dBm a +30 dBm |
| Figura de ruido | 18 dB (típico) |
| Longitud de captura | Hasta 800 ms a 800 MHz de ancho de banda |
| Resolución de frecuencia | 1 Hz |
| Velocidad de actualización de espectro | Hasta 292.000 FFT por segundo |
| Pantalla | Monitor de alta resolución de 15,6 pulgadas |
| Interfaz de entrada RF | Conector Tipo N, 50 Ω |
| Sistema operativo | Windows 10 de 64 bits |
Tektronix RSA7100A Options:
- RSA7100A - Opt. 14 - Frequency range 16 kHz-14 GHz
- RSA7100A - Opt. 26 - Frequency range 16 kHz-26.5 GHz
- RSA7100A - Opt. GPS - GPS receiver
- RSA7100A - Opt. NO GPS - No GPS receiver
- RSA7100A - Opt. CAL - Calibration report with data (ISO 17025)
- RSA7100A - Opt. GPS CAL - GPS receiver and calibration report with data (ISO17025)
- RSA7100A - Opt. C7100-A - Controller, no RAID storage
- RSA7100A - Opt. C7100-B - Controller, RAID storage, 20 minutes recording time at 800 MHz bandwidth (requires STREAMNL-SVPC)
- RSA7100A - Opt. C7100-C - Controller, RAID storage, > 120 minutes recording time at 800 MHz bandwidth (requires STREAMNL-SVPC)
- RSA7100A - Opt. SV09 - High performance real time (export class 3A002), node-locked license
- RSA7100A - Opt. B800NL-SVPC - 800 MHz acquisition bandwidth (for frequencies > 3.6 GHz), node locked
- RSA7100A - Opt. STREAMNL-SVPC - Streaming data, node locked
- RSA7100A - Opt. SVMHNL-SVPC - General Purpose Modulation Analysis to work with analyzer of any acquisition bandwidth and MDO, node locked
- RSA7100A - Opt. SVPHNL-SVPC - Pulse Analysis to work with analyzer of any acquisition bandwidth and MDO, node locked
- RSA7100A - Opt. TRIGHNL-SVPC - Advanced triggers (Frequency Mask, Density) to work with RSA7100A, node locked
- RSA7100A - Opt. MAPNL-SVPC - Mapping and signal strength, node locked
- RSA7100A - Opt. SV54NL-SVPC - Signal survey and classification, node locked
- RSA7100A - Opt. SVTNL-SVPC - Settling Time (frequency and phase) measurements, node locked
- RSA7100A - Opt. SV23NL-SVPC - WLAN 802.11a/b/g/j/p measurement, node locked
- RSA7100A - Opt. SV24NL-SVPC - WLAN 802.11n measurement (requires SV23), node locked
- RSA7100A - Opt. SV25HNL-SVPC - WLAN 802.11ac measurement to work with analyzer of acquisition bandwidth ≤40 MHz and MDO4000B/C (requires SV23 and SV24), node locked
- RSA7100A - Opt. SV26NL-SVPC - APCO P25 measurement, node locked
- RSA7100A - Opt. SV27NL-SVPC - Bluetooth measurement to work with analyzer of acquisition bandwidth ≤40 MHz and MDO4000B/C, node locked
- RSA7100A - Opt. SV28NL-SVPC - LTE Downlink RF measurement to work with analyzer of acquisition bandwidth ≤40 MHz and MDO4000B/C, node locked
- RSA7100A - Opt. SV31NL-SVPC - Bluetooth 5 measurements (requires SV27), node locked
- RSA7100A - Opt. SVANL-SVPC - AM/FM/PM/Direct Audio Analysis, node locked
- RSA7100A - Opt. SVONL-SVPC - Flexible OFDM Analysis, node locked
- RSA7100A - Opt. SVQPNL-SVPC - EMI CISPR Detectors, node locked
- RSA7100A - Opt. CONNL-SVPC - SignalVu-PC live link to the MDO4000B/C series mixed-domain oscilloscopes, node locked
- RSA7100A - Opt. L0 - English manual
- RSA7100A - Opt. L5 - Japanese manual
- RSA7100A - Opt. L7 - Simplified Chinese manual
- RSA7100A - Opt. L99 - No manual
- RSA7100A - Opt. A0 - North America power plug (115 V, 60 Hz)
- RSA7100A - Opt. A1 - Universal Euro power plug (220 V, 50 Hz)
- RSA7100A - Opt. A2 - United Kingdom power plug (240 V, 50 Hz)
- RSA7100A - Opt. A3 - Australia power plug (240 V, 50 Hz)
- RSA7100A - Opt. A4 - North America power plug (240 V, 50 Hz)
- RSA7100A - Opt. A5 - Switzerland power plug (220 V, 50 Hz)
- RSA7100A - Opt. A6 - Japan power plug (100 V, 50/60 Hz)
- RSA7100A - Opt. A10 - China power plug (50 Hz)
- RSA7100A - Opt. A11 - India power plug (50 Hz)
- RSA7100A - Opt. A12 - Brazil power plug (60 Hz)
- RSA7100A - Opt. A99 - No power cord
- RSA7100A - Opt. C3 - Calibration Service 3 Years
- RSA7100A - Opt. C5 - Calibration Service 5 Years
- RSA7100A - Opt. G3 - Complete Care 3 Years (includes loaner, scheduled calibration, and more)
- RSA7100A - Opt. G5 - Complete Care 5 Years (includes loaner, scheduled calibration, and more)
| Model | RSA7100A |
|---|
El analizador de señales de banda ancha Tektronix RSA7100A ofrece análisis de espectro en tiempo real hasta 800 MHz, transmisión continua de datos en dos interfaces durante 2 horas y separación RF/datos para procesamiento escalable con GPU.
Ideal para el desarrollo de sistemas de radar, guerra electrónica y comunicaciones de banda ancha, el RSA7100A permite un análisis avanzado con los softwares SignalVu-PC y DataVu-PC.
Testwall puede suministrar el Tektronix RSA7100A usado, totalmente probado. Con soporte experto y entrega global, Testwall asegura instrumentación de alto rendimiento con fiabilidad y calidad de servicio inigualables. Contáctenos para calibración o reparación del Tektronix RSA7100A.
