Tektronix

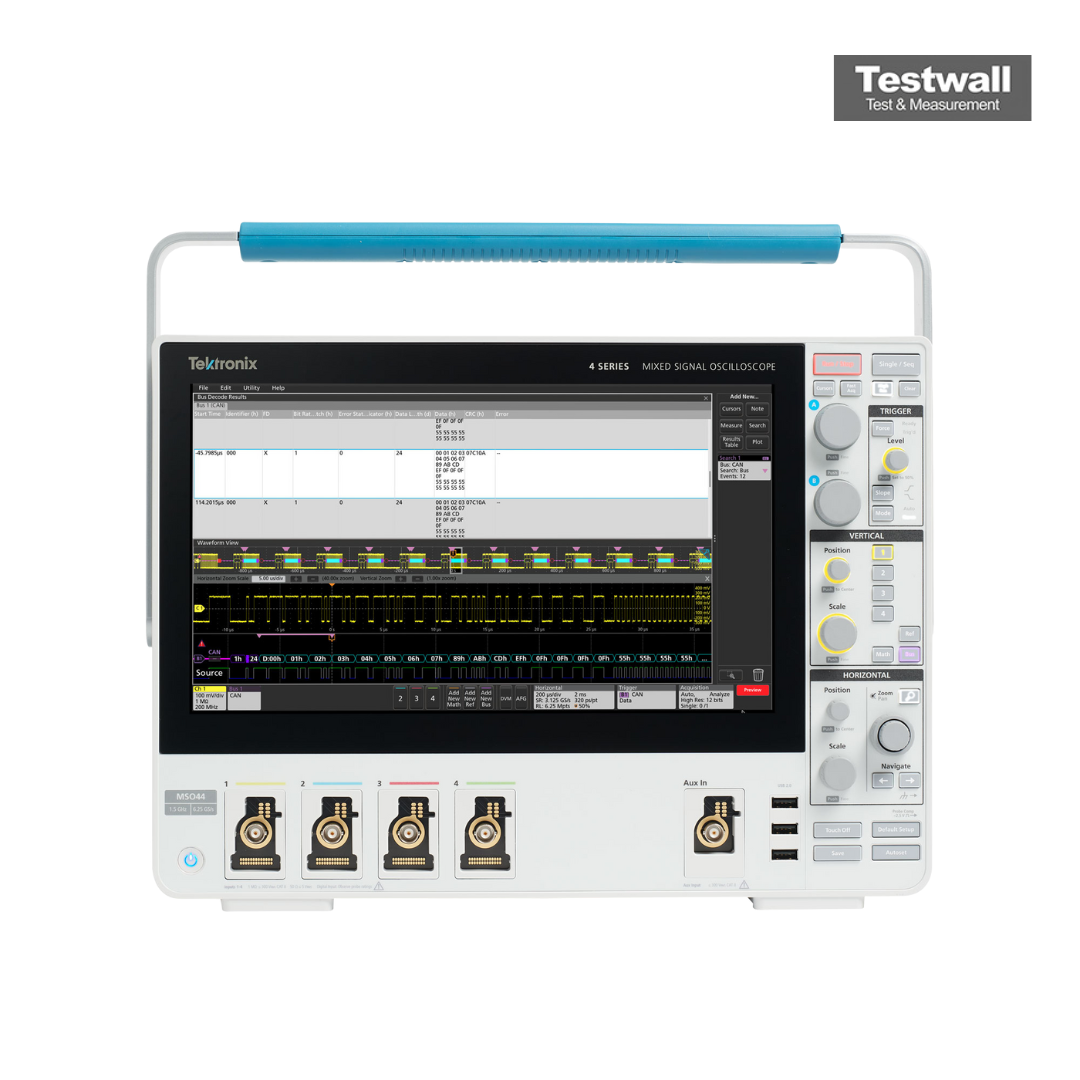

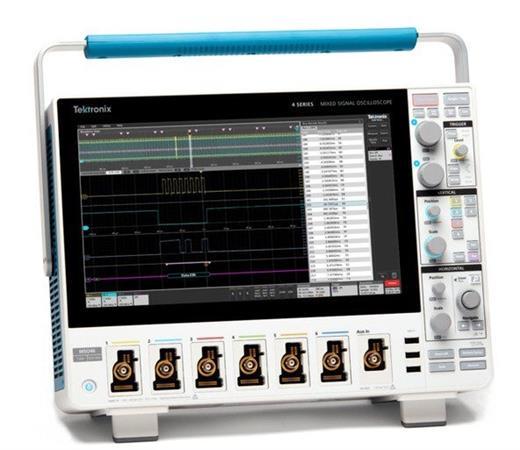

Tektronix MSO44 4-BW-350 4 Series MSO
4 Channel Mixed Domain Oscilloscope, 350 MHz
350 MHz Ancho de banda
4 Número de canales analógicos
16 canales lógicos digitales (mediante sondas opcionales TLP058) Canales digitales
6,25 GS/s Frecuencia de muestreo
31,25 M puntos Longitud de registro
| Atributo | Valor |
|---|---|
| Ancho de banda | 350 MHz |
| Número de canales analógicos | 4 |
| Canales digitales | 16 canales lógicos digitales (mediante sondas opcionales TLP058) |
| Frecuencia de muestreo | 6,25 GS/s |
| Longitud de registro | 31,25 M puntos |
| Pantalla | Pantalla táctil capacitiva a color de 13,3 pulgadas (1920 x 1080) |
| Resolución vertical | 12 bits |
| Tasa de captura de formas de onda | 500.000 formas de onda por segundo |
| Análisis de protocolos | I2C, SPI, RS-232/422/485/UART, USB 2.0, CAN, LIN, FlexRay, I2S, entre otros |
| Conectividad | USB 2.0, USB 3.0, LAN (LXI), salida de vídeo DisplayPort |
Tektronix MSO44 4-BW-350 4 Series MSO Options:
- MSO44 - 4-BW-200 - 200 MHz analog channel bandwidth
- MSO44 - 4-BW-350 - 350 MHz analog channel bandwidth
- MSO44 - 4-BW-500 - 500 MHz analog channel bandwidth
- MSO44 - 4-BW-1000 - 1 GHz analog channel bandwidth
- MSO44 - 4-BW-1500 - 1.5 GHz analog channel bandwidth
- MSO44 - 4-RL-1 - Extend record length from 31.25 Mpoints/channel to 62.5 Mpoints/channel
- MSO44 - 4-AFG - Add Arbitrary / Function Generator
- MSO44 - 4-SEC - Add enhanced security for instrument declassification and password protected enabling and disabling of all USB and Ethernet ports and firmware upgrade
- MSO44 - 4-SRAERO - Aerospace serial triggering and analysis (MIL-STD-1553, ARINC 429)
- MSO44 - 4-SRAUDIO - Audio serial triggering and analysis (I2S, LJ, RJ, TDM)
- MSO44 - 4-SRAUTO - Automotive serial triggering and analysis (CAN, CAN FD, LIN, FlexRay, and CAN symbolic decoding)
- MSO44 - 4-SRAUTOSEN - Automotive sensor serial triggering and analysis (SENT)
- MSO44 - 4-SRCOMP - Computer serial triggering and analysis (RS-232/422/485/UART)
- MSO44 - 4-SREMBD - Embedded serial triggering and analysis (I2C, SPI)
- MSO44 - 4-SRENET - Ethernet serial triggering and analysis (10BASE-T, 100BASE-TX)
- MSO44 - 4-SRI3C - MIPI I3C serial analysis (I3C decode and search only)
- MSO44 - 4-SRPM - Power Management serial triggering and analysis (SPMI)
- MSO44 - 4-SRUSB2 - USB serial triggering and analysis (USB2.0 LS, FS, HS)
- MSO44 - 4-PWR-BAS - Power Measurements and Analysis
- MSO44 - 4-SV-BAS - Spectrum View frequency domain analysis
- MSO44 - 4-PS2 - Power Solution Bundle (4-PWR-BAS, THDP0200, TCP0030A, 067-1686-xx deskew fixture)
- MSO44 - A0 - North America power plug (115 V, 60 Hz)
- MSO44 - A1 - Universal Euro power plug (220 V, 50 Hz)
- MSO44 - A2 - United Kingdom power plug (240 V, 50 Hz)
- MSO44 - A3 - Australia power plug (240 V, 50 Hz)
- MSO44 - A5 - Switzerland power plug (220 V, 50 Hz)
- MSO44 - A6 - Japan power plug (100 V, 50/60 Hz)
- MSO44 - A10 - China power plug (50 Hz)
- MSO44 - A11 - India power plug (50 Hz)
- MSO44 - A12 - Brazil power plug (60 Hz)
- MSO44 - A99 - No power cord
- MSO44 - T3 - Three Year Total Protection Plan, includes repair or replacement coverage from wear and tear, accidental damage, ESD or EOS
- MSO44 - T5 - Five Year Total Protection Plan, includes repair or replacement coverage from wear and tear, accidental damage, ESD or EOS
- MSO44 - R5 - Standard Warranty Extended to 5 Years
- MSO44 - C3 - Calibration service 3 Years
- MSO44 - C5 - Calibration service 5 Years
- MSO44 - D1 - Calibration Data Report
- MSO44 - D3 - Calibration Data Report 3 Years (with Option C3)
- MSO44 - D5 - Calibration Data Report 5 Years (with Option C5)
| Model | MSO44 |
|---|
El Tektronix MSO44 4-BW-350 ofrece 4 canales analógicos y expansión digital opcional hasta 32 canales, con ancho de banda de 500 MHz, muestreo de 6.25 GS/s y pantalla táctil de alta definición.
Ideal para sistemas embebidos y electrónica de potencia, integra vista espectral, disparadores avanzados y análisis en tiempo real en un instrumento compacto.
Testwall puede suministrar el Tektronix MSO44 4-BW-350 usado, completamente probado. Con soporte experto y entrega global, Testwall asegura instrumentación de alto rendimiento con fiabilidad y calidad de servicio insuperables. Contáctenos si necesita calibración o reparación del Tektronix MSO44 4-BW-350.
