Tektronix P5934
| Atributo | Valor |
|---|---|
| Ancho de banda | 1,5 GHz |
| Tipo de sonda | Sonda diferencial de alta tensión |
| Tensión máxima de entrada | ±1200 V (diferencial), ±1500 V (a tierra) |
| Factor de atenuación | 100X / 1000X |
| Impedancia de entrada | 8 MΩ en paralelo con 7 pF |
| Tensión de modo común máxima | ±1500 V pico |
| Rechazo de modo común (CMRR) | >80 dB a 60 Hz |
| Temperatura de funcionamiento | 0 °C a +50 °C |
| Longitud del cable | 1,2 m |
| Compatibilidad | Osciloscopios Tektronix con entrada de sonda compatible TekVPI o BNC |
Tektronix P5934 Options:
- P5934 - L0 - English manual
- P5934 - L99 - No manual
- P5934 - C3 - Calibration Service 3 Years
- P5934 - C5 - Calibration Service 5 Years
- P5934 - R3 - Repair Service 3 Years (including warranty)
- P5934 - R5 - Repair Service 5 Years (including warranty)
| Model | P5934 |
|---|
Tektronix Analyzer Probe
Tektronix P5934 Logic Analyzer Probe, 17 Ch.
No test and measurement solution is complete without probing and the consideration of its impact on your system and your measurement time. With the industry's lowest probe loading, the P5900 Series logic analyzer probes protect the integrity of your signal - minimizing the impact on your design. The Tektronix P5900 Series logic analyzer probes when used with TLA6400 Series logic analyzers make sophisticated logic analysis available at an affordable price. Select from a variety of attachment mechanisms, including the high-density D-Max ®, Mictor, and general-purpose.
Verification and debug of today's high speed digital signals requires probing solutions that can accurately acquire from a wide variety of electronic designs and protect signal fidelity. Tektronix logic analyzer probes contain a variety of connectivity options that are engineered to ensure that signal acquisition is a true reflection of your design's performance.

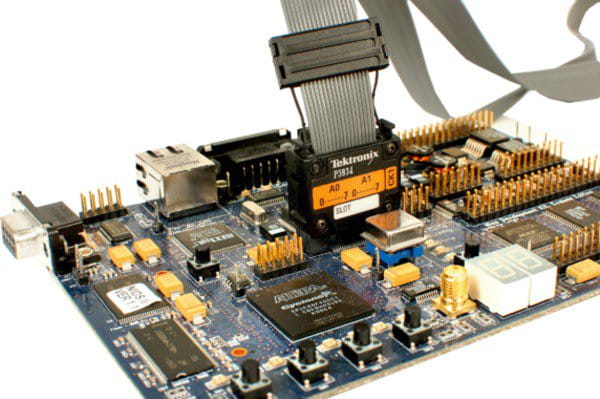

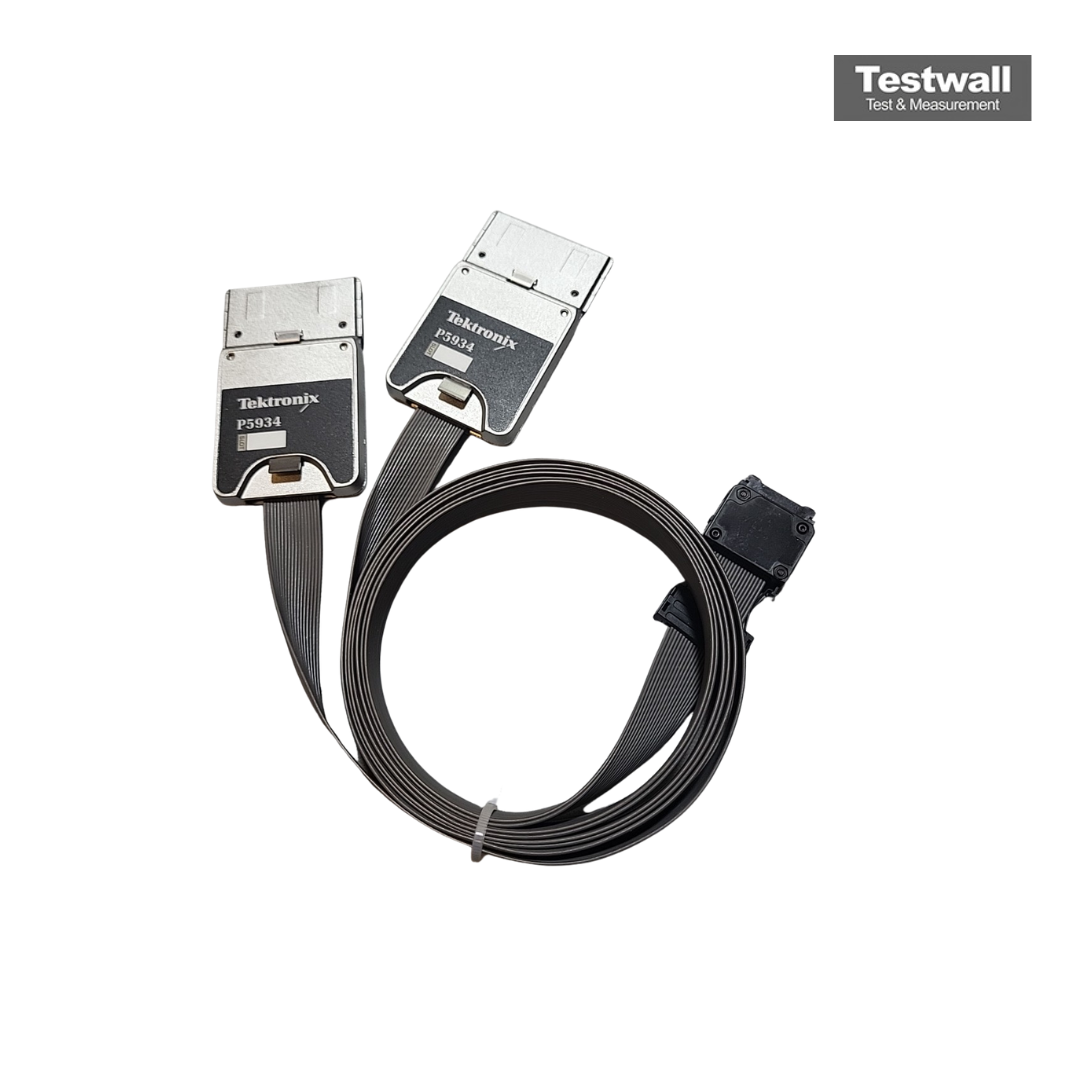

The Tektronix P5934 is 34-channel mictor probe with quick connect/disconnect and a positive-latching mechanism to ensure a secure, reliable connection.
Features and Specifications of the Tektronix P5934 includes:
- Low total capacitive loading minimizes intrusion on circuits
- 20 k? input resistance
- 7.5 Vp-p dynamic range supports a broad range of logic families
- Variety of attachment mechanisms including the high-density D-Max ®, Mictor, square pins, and flying leads.
- Digital hardware validation and debug
- Monitoring, measurement, and optimization of digital hardware performance
- Embedded software integration, debug, and verification
