Tektronix TIVM02
| Atributo | Valor |
|---|---|
| Ancho de banda | 500 MHz |
| Número de canales | 2 canales |
| Frecuencia de muestreo máxima | 2,5 GS/s |
| Longitud de registro | 10 M puntos |
| Sensibilidad vertical | 1 mV/div – 10 V/div |
| Resolución vertical | 8 bits |
| Base de tiempos | 1 ns/div – 1000 s/div |
| Tipo de sonda compatible | Sonda de tensión de modo aislado IsoVu |
| Tensión de entrada máxima | 2500 V CAT I |
| Interfaz de conectividad | USB, Ethernet |
Tektronix TIVM02 Options:
- TIVM02 - C3 - Calibration Service 3 Years
- TIVM02 - C5 - Calibration Service 5 Years
- TIVM02 - D1 - Calibration Data Report
- TIVM02 - D3 - Calibration Data Report 3 Years (with Opt. C3)
- TIVM02 - D5 - Calibration Data Report 5 Years (with Opt. C5)
- TIVM02 - G3 - Complete Care 3 Years (includes loaner, scheduled calibration, and more)
- TIVM02 - R3 - Repair Service 3 Years (including warranty)
- TIVM02 - R5 - Repair Service 5 Years (including warranty)
| Model | TIVM02 |
|---|

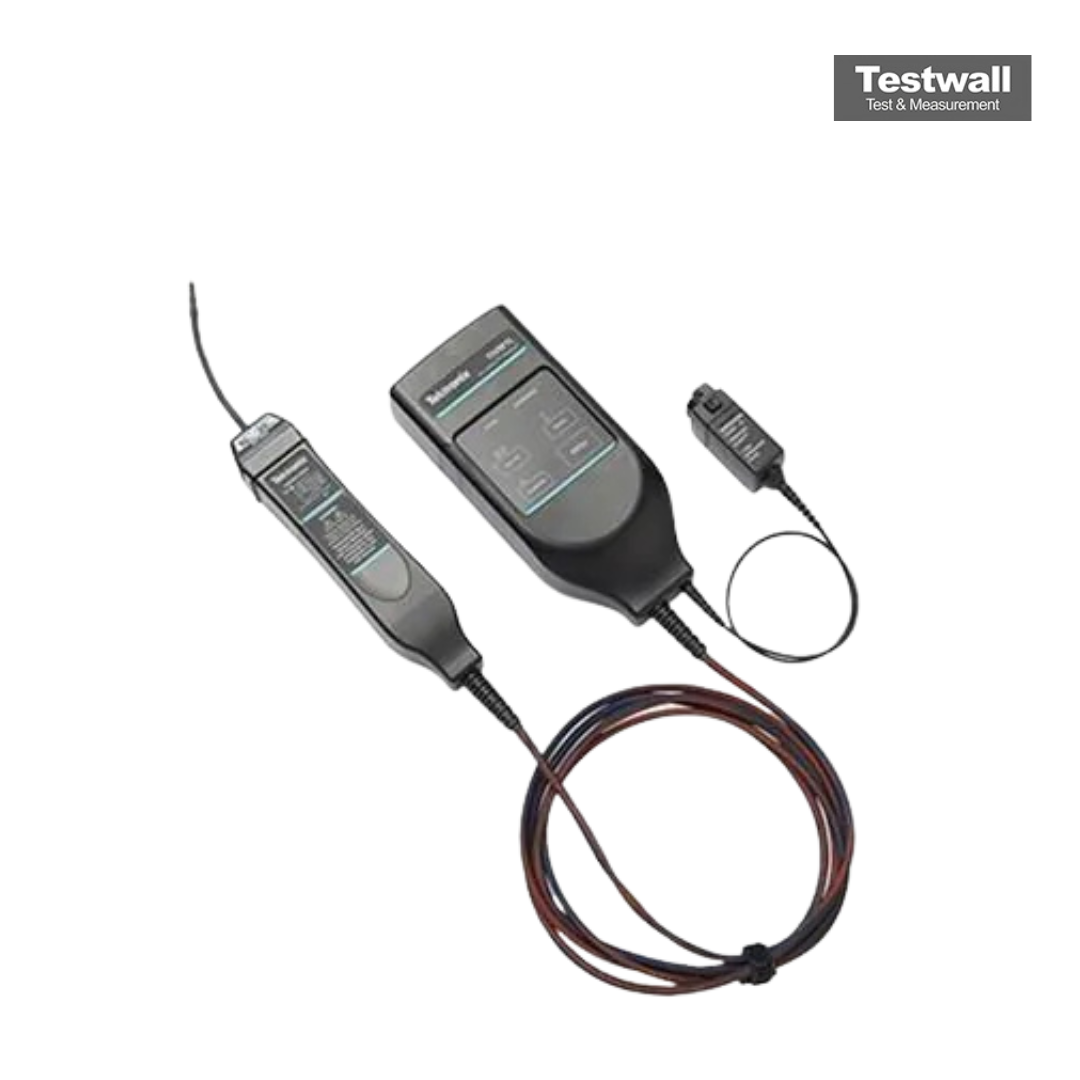

TEKTRONIX TIVM02 Differential Probe

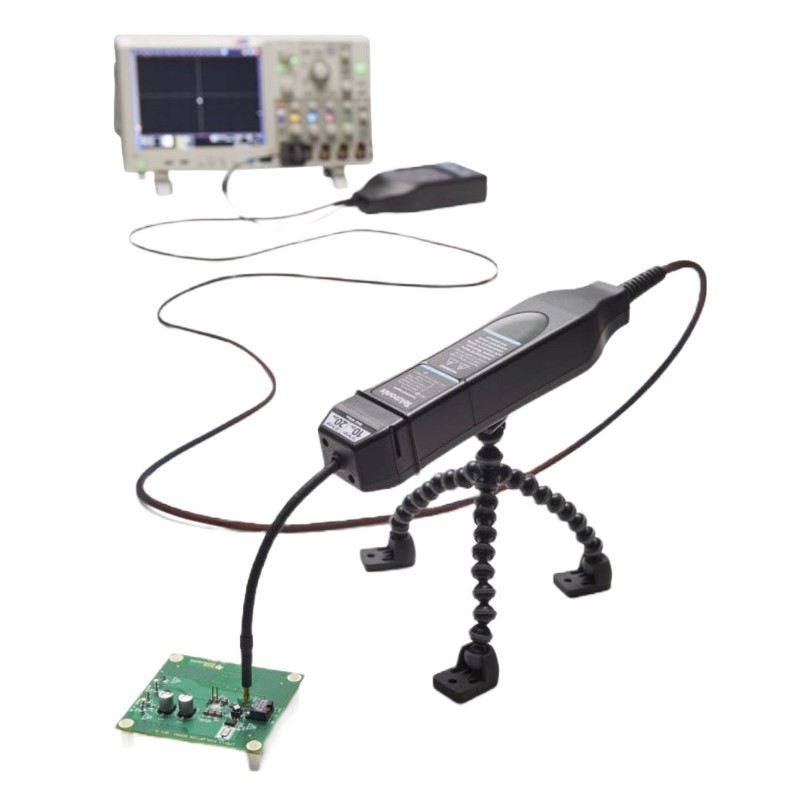

The Tektronix TIVM02 IsoVu Measurement System offers a galvanically isolated measurement solution for accurately resolving high bandwidth, differential signals up to ±50 Vpk in the presence of large common mode voltages with the best in class common mode rejection performance across its bandwidth. The Tektronix TIVM02 (IsoVu) products can be used on most Tektronix oscilloscopes with the TekVPI interface and on MSO/DPO70K series oscilloscopes with the TCA-VPI50 adapter. IsoVu utilizes an electro-optic sensor that converts the electrical signal from the sensor tip cables to an optical signal, which electrically isolates the device-under-test from the oscilloscope.
IsoVu incorporates four separate lasers, an optical sensor, five optical fibers, and sophisticated feedback and control techniques. The sensor head, which connects to the test point, has complete electrical isolation and is powered over one of the optical fibers (No batteries required). IsoVu is an ideal solution for users making the following measurements:
Differential measurements in the following conditions:
- Complete galvanic isolation is required
- High common mode voltage
- High frequency common mode interference
- High frequency measurements
- Measurements in high EMI environments
- EMI compliance testing
- ESD testing
Specifications for the TEKTRONIX TIVM02 Differential Probe Include:
| Bandwidth | 200 MHz |
| Rise Time | ‰¤ 1.8 ns (typical) |
| Attenuation | up to 50X |
| Common mode voltage | 60 kV peak |
