Tektronix

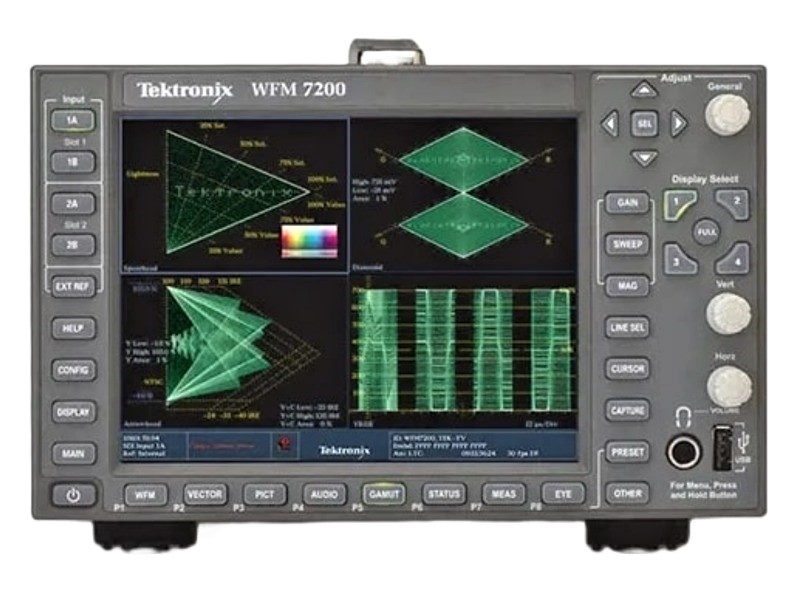

Tektronix WVR7200
Multiformat Waveform Rasterizer, HD/SDI/SD/SDI
SD, HD, 3G-SDI (hasta 3 Gb/s), incluyendo 1080p/60 Formatos de vídeo compatibles
4 entradas SDI simultáneas Número de entradas SDI
SMPTE 259M, SMPTE 292M, SMPTE 424M, ITU-R BT.601, ITU-R BT.709 Estándares de monitorización
Pantalla LCD a color de 8,4 pulgadas con resolución de 1024 x 768 píxeles Pantalla
Forma de onda, vectorscopio, parade, diagrama de diamante, audio, gamut y picture Instrumentos de medición
| Atributo | Valor |
|---|---|
| Formatos de vídeo compatibles | SD, HD, 3G-SDI (hasta 3 Gb/s), incluyendo 1080p/60 |
| Número de entradas SDI | 4 entradas SDI simultáneas |
| Estándares de monitorización | SMPTE 259M, SMPTE 292M, SMPTE 424M, ITU-R BT.601, ITU-R BT.709 |
| Pantalla | Pantalla LCD a color de 8,4 pulgadas con resolución de 1024 x 768 píxeles |
| Instrumentos de medición | Forma de onda, vectorscopio, parade, diagrama de diamante, audio, gamut y picture |
| Monitorización de audio | Soporta audio embebido AES/EBU, hasta 16 canales de audio digital |
| Opciones de referencia | Entradas de referencia analógica: Black burst y tri-level sync |
| Interfaz de red y control remoto | Puerto Ethernet 10/100Base-T para control remoto y actualizaciones de firmware |
| Factor de forma | Montaje en bastidor 2U, compatible con instalaciones en rack estándar de 19 pulgadas |
| Alimentación eléctrica | 100–240 V CA, 50/60 Hz, fuente de alimentación universal de entrada automática |
Tektronix WVR7200 Options:
- WVR7200 - 2SDI - Adds additional SDI module (in slot 2) to support up to 4 SDI inputs within multi-mode displays (3G-SDI, HD-SDI, and SD-SDI support on the same inputs – auto detect). Option 3G required for 3G-SDI support. Cannot be installed on an instrument with option CPS installed.
- WVR7200 - 3G - Adds support for 3G-SDI signal formats (Level A and Level B). Upgrades are available by a software option key.
- WVR7200 - AD - Adds analog audio monitoring (2 sets of 6-channel analog audio inputs and 8-channel analog audio outputs) plus 16 channels, embedded or AES/EBU digital audio support (8 channels at a time), including loudness monitoring.
- WVR7200 - AVD - Adds support for out-of-service A/V delay measurement. Option AD or DPE required.
- WVR7200 - CPS - Adds support for composite analog video monitoring; 2 composite analog inputs; passive loopthrough. Cannot be installed on an instrument with option 2SDI installed.
- WVR7200 - DAT - Add advanced 3G / Dual-Link / HD / SD-SDI data analyzer and ancillary data analyzer (Datalist and ANC data Inspector). Option 3G required for 3G-SDI support.
- WVR7200 - DPE - Adds option AD capabilities (analog and digital audio – embedded or external AES) plus support for decoding and monitoring Dolby E, Dolby D, and Dolby Digital Plus including loudness monitoring.
- WVR7200 - GEN - Adds 3G/HD/SD-SDI color bar and pathological signal generation capability. Option 3G required for 3G-SDI signal generation capability.
- WVR7200 - PHY3 - Physical layer measurement package (includes automated measurement of 3G/HD/SD eye pattern parameters, jitter, and cable parameters; jitter waveform display). Option 3G required for 3G-SDI physical layer measurements.
- WVR7200 - PROD - Advanced gamut monitoring package (Spearhead Gamut display and Luma Qualified Vector display).
- WVR7200 - S3D - Add monitoring support for stereoscopic 3D video (including Simultaneous Input Monitoring capability).
- WVR7200 - SIM - Add simultaneous monitoring of two 3G/HD/SD-SDI inputs or one 3G/HD/SD-SDI input and one CPS input. Option 3G required for 3G-SDI format support.
- WVR7200 - 62 - Analog audio breakout cable, 6 feet, male 62-pin connectors to 8 XLR male output connectors and 12 XLR female input connectors.
- WVR7200 - A0 - North America power plug (115 V, 60 Hz)
- WVR7200 - A1 - Universal Euro power plug (220 V, 50 Hz)
- WVR7200 - A2 - United Kingdom power plug (240 V, 50 Hz)
- WVR7200 - A3 - Australia power plug (240 V, 50 Hz)
- WVR7200 - A5 - Switzerland power plug (220 V, 50 Hz)
- WVR7200 - A6 - Japan power plug (100 V, 50/60 Hz)
- WVR7200 - A10 - China power plug (50 Hz)
- WVR7200 - A11 - India power plug (50 Hz)
- WVR7200 - A12 - Brazil power plug (60 Hz)
- WVR7200 - A99 - No power cord
- WVR7200 - C3 - Calibration Service 3 Years
- WVR7200 - C5 - Calibration Service 5 Years
- WVR7200 - D1 - Calibration Data Report
- WVR7200 - D3 - Calibration Data Report 3 Years (with Opt. C3)
- WVR7200 - D5 - Calibration Data Report 5 Years (with Opt. C5)
- WVR7200 - G3 - Complete Care 3 Years (includes loaner, scheduled calibration, and more)
- WVR7200 - G5 - Complete Care 5 Years (includes loaner, scheduled calibration, and more)
- WVR7200 - R3 - Repair Service 3 Years (including warranty)
- WVR7200 - R3DW - Repair Service Coverage 3 Years (includes product warranty period). 3-year period starts at time of instrument purchase.
- WVR7200 - R5 - Repair Service 5 Years (including warranty)
- WVR7200 - R5DW - Repair Service Coverage 5 Years (includes product warranty period). 5-year period starts at time of instrument purchase.
| Model | WVR7200 |
|---|

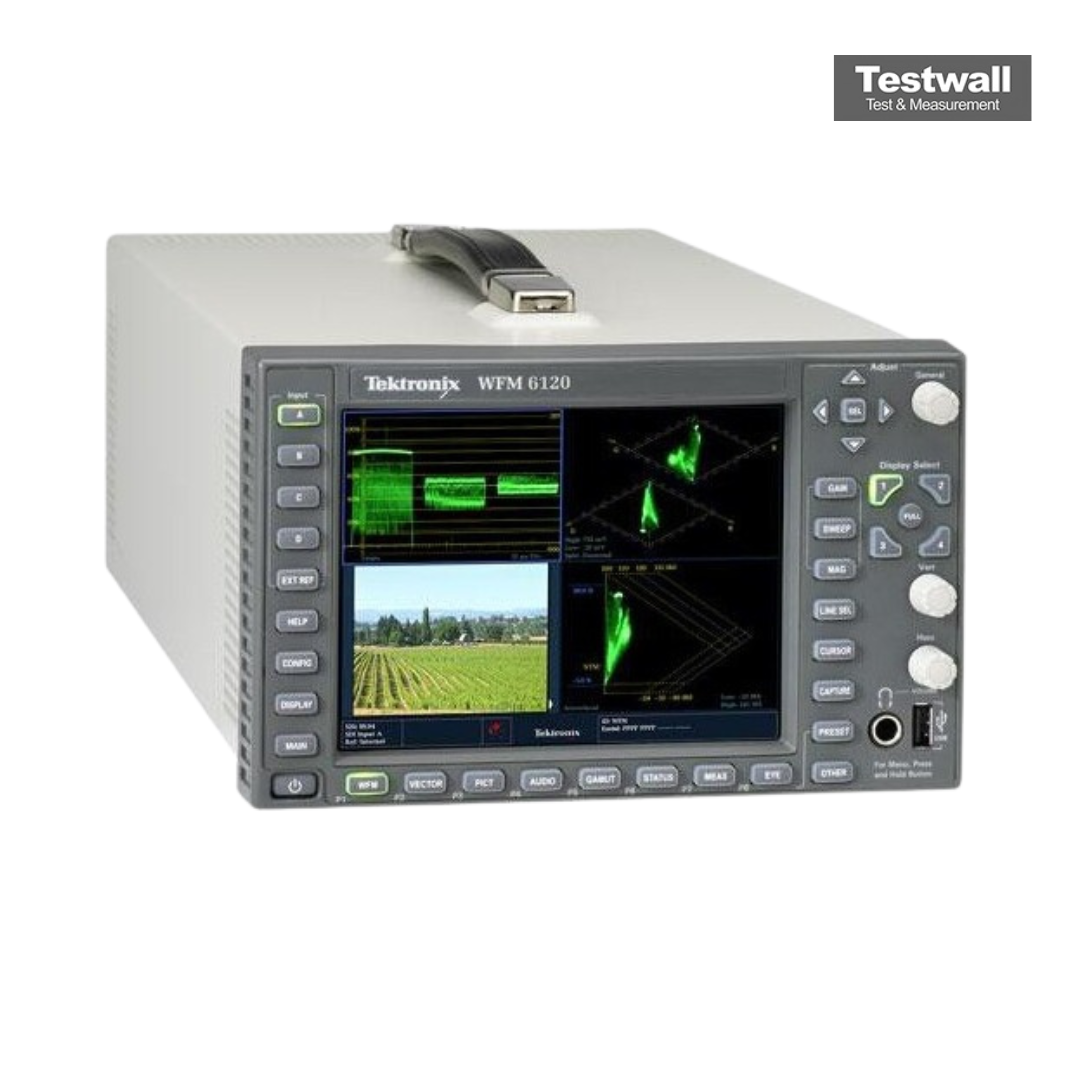

Tektronix WVR7200 Multiformat Waveform Rasterizer, HD/SDI/SD/SDI
The monitoring and measurement capabilities of the Tektronix WVR7200 instrument provides a comprehensive suite of options and configurations to suit a variety of applications. For monitoring applications Tektronix-patented gamut displays simplify color adjustments for camera balancing and color correction applications. Get information about the signal at a glance from the audio session and video session displays that assist in ensuring quality control of the image.
The Tektronix WVR7200 video/audio/data monitor and analyzer all-in-one platform provides flexible options and field installable upgrades to monitor a diverse variety of video and audio formats. Support for video formats includes 3G-SDI, Dual Link, HD-SDI and composite analog. Support for audio formats includes Dolby E, Dolby Digital Plus, Dolby Digital, AES/EBU, embedded audio and analog audio.
