Yokogawa 701250
Input Module, High-Speed 10 Ms/s 12-Bit Isolation
16 canales Número de canales
500 MHz Ancho de banda
2,5 GS/s (tiempo real) Frecuencia de muestreo
6,25 M palabras por canal Longitud de registro
8 bits Resolución vertical
| Atributo | Valor |
|---|---|
| Número de canales | 16 canales |
| Ancho de banda | 500 MHz |
| Frecuencia de muestreo | 2,5 GS/s (tiempo real) |
| Longitud de registro | 6,25 M palabras por canal |
| Resolución vertical | 8 bits |
| Rango de voltaje de entrada | 2 mV/div a 10 V/div |
| Impedancia de entrada | 1 MΩ / 50 Ω |
| Pantalla | Pantalla TFT LCD a color de 12,1 pulgadas |
| Interfaz de comunicación | Ethernet (100BASE-T), USB, GPIB (opcional) |
| Alimentación eléctrica | 100-240 V CA, 50/60 Hz |
Yokogawa 701250 Options:
- DL750 - /M1 - Memory expansion to 10 MW/CH
- DL750 - /M2 - Memory expansion to 25 MW/CH
- DL750 - /M3 - Memory expansion to 50 MW/CH
- DL750 - /C8 - Internal 30 GB hard drive (FAT32)
- DL750 - /C10 - Ethernet interface
- DL750 - /G2 - User-defined math function
- DL750 - /G3 - DSP channel function
- DL750 - /P4 - Probe power (4-output)
- DL750 - /DC - DC12 V power (DC10-18 V) (DL750 only)
- DL750 - -J1 - Floppy drive
- DL750 - -J2 - Zip drive (available for the DL750 only)
- DL750 - -J3 - PC card drive
- DL750 - -HE - English online help
- DL750 - -HJ - Japanese online help
- DL750 - -HC - Chinese online help
- DL750 - -HG - German online help
- DL750 - -HF - French online help
- DL750 - -HL - Italian online help
- DL750 - -HK - Korean online help
- DL750 - -D - UL/CSA standard power cable
- DL750 - -F - VDE standard power cable
- DL750 - -R - AS standard power cable
- DL750 - -Q - BS standard power cable
- DL750 - -H - GB standard power cable (Complied with CCC)
- 701250 - 700929 - Isolated probe, 1000 Vrms-CATII for 701250 (10:1)
- 701250 - 701901 - 1:1 BNC safety adapter lead, 1000 Vrms-CATII for 701250
- 701250 - 701959 - Safety mini clip (hook type), 1000 Vrms-CATII, 1 set each of red and black
- 701250 - 701954 - Large Alligator clip (dolphin type), 1000 Vrms-CATII, 1 set each of red and black
- 701250 - 758929 - Alligator adapter (rated volt.: 1000 V), 1000 Vrms-CATII, 1 set each of red and black
- 701250 - 758922 - Alligator adapter (rated volt.: 300 V), 300 Vrms-CATII, 1 set each of red and black
- 701250 - 758921 - Fork terminal adapter, 1000 Vrms-CATII, 1 set each of red and black
- 701250 - 701940 - Passive probe for DL750/750P, Non-isolated 600 Vpk (10:1)
- 701250 - 366926 - 1:1 BNC-alligator cable, Non-isolated 42 V or less, for 701250, 1 m
- 701250 - 366961 - 1:1 Banana-alligator cable, Non-isolated 42 V or less, for 701261, -62, -65, 1.2 m
- 701250 - 701933 - Current probe, 30 Arms, DC to 50 MHz, supports probe power
- 701250 - 701930 - Current probe, 150 Arms, DC to 10 MHz, supports probe power
- 701250 - 701931 - Current probe, 500 Arms, DC to 2 MHz, supports probe power
- 701250 - 701934 - Probe power, large current output, external probe power supply (4 outputs)
- 701250 - 700924 - Differential probe, 1400V pk, 1000 Vrms-CAT II
- 701250 - 701955 - Bridge head (NDIS, 120 Ω) with 5 m cable
- 701250 - 701956 - Bridge head (NDIS, 350 Ω) with 5 m cable
- 701250 - 701957 - Bridge head (DSUB, Shunt-cal 120 Ω) with 5 m cable
- 701250 - 701958 - Bridge head (DSUB, Shunt-cal 350 Ω) with 5 m cable
- 701250 - 366973 - GO/NO-GO cable
- 701250 - 758924 - Safety BNC-banana adapter, 500 Vrms-CATII, for 701250, -51, -55, -60
- 701250 - B9988AE - Printer roll paper, DL750, A6 size (120 mm wide x 10m), include 10 rolls
- 701250 - 701966 - Printer roll paper, DL750P, A4 size (210 mm wide x 20m), include 6 rolls
- 701250 - 700986 - High-speed logic probe, 8-bit, non-isolated, response speed: 1µs
- 701250 - 700987 - Isolated logic probe, 8-bit, each channel isolated, response speed: 20 ms (for AC)
- 701250 - 758917 - Isolated logic measurement leads (2 per set), alligator clip required separately
- 701250 - 366928 - Conversion adaptor, BNC (jack)-RCA (plug) conversion
- 701250 - 701902 - Safety BNC cable (1 meter), 1000 Vrms-CATII (BNC-BNC)
- 701250 - 701903 - Safety BNC cable (2 meters), 1000 Vrms-CATII (BNC-BNC)
- 701250 - 701963 - Soft carrying case for DL750, with 3 storage pockets
- 701250 - 701967 - Soft carrying case for DL750P, with 3 storage pockets
| Model | 701250 |
|---|
YOKOGAWA 701250

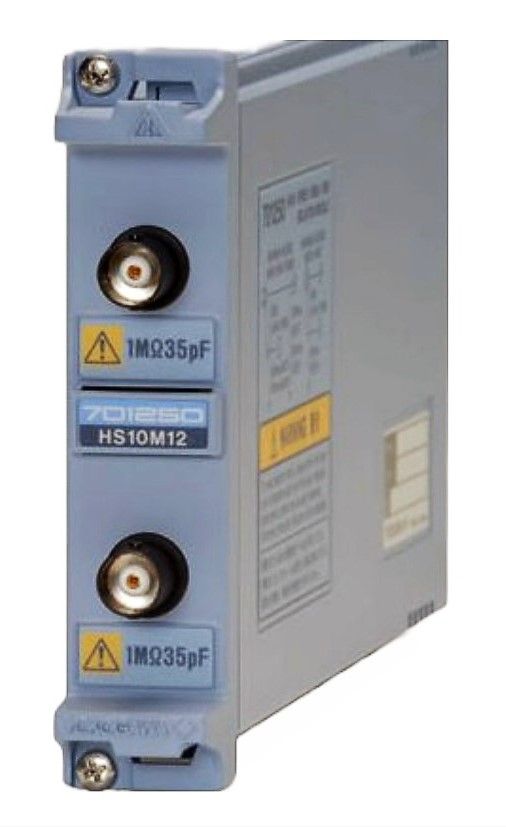

The Yokogawa 701250 Input Module, offers high speed and 12-bit isolation. Specifications of the Yokogawa 701250 module include:
- Input channels 2
- Input couplings AC, DC, GND
- Maximum sampling rate 10 MS/s
- A/D conversion resolution 12 bits (150 LSB/div)
- Input type Isolated unbalanced
- Frequency range( €“3 dB)1 DC, up to 3 MHz
- Input range
- (10:1) 50 mV/div to 200 V/div (in steps of 1, 2, or 5)
- (1:1) 5 mV/div to 20 V/div (in steps of 1, 2, or 5)
- Effective measurement range 20 div (display range: 10 div)
- DC offset ±5 div
- Maximum input voltage (1 kHz or less)
- In combination with 700929(10:1)
- 600 V (DC + ACpeak)
- Direct input (1:1)
- 250 V (DC + ACpeak)
- Maximum allowable in-phase voltage
- In combination with 700929 (10:1)
- 400 Vrms (CAT I), 300 Vrms (CAT II)
- In combination with 7019in steps of 1, 2, or 5+701954 (1:1)
- 400 Vrms (CAT I), 300 Vrms (CAT II)
- Main unit only (1:1)
- 42 V (DC + ACpeak) (CAT I and CAT II, 30 Vrms)
- DC accuracy ±(0.5% of 10 div)
- Input impedance 1 M? ± 1%, approx. 35 pF
- Connector type Isolation type BNC connector
- Input filter OFF, 500 Hz, 5 kHz, 50 kHz, 500 kHz
- Temperature coefficient
- Zero point ±(0.05% of 10 div)/ °C (typical value)
- Gain ±(0.02% of 10 div)/ °C (typical value)
