Yokogawa 701953
| Atributo | Valor |
|---|---|
| Número de canales | 16 canales |
| Ancho de banda | 500 MHz |
| Frecuencia de muestreo | 2,5 GS/s (por canal) |
| Longitud de registro | hasta 62,5 M palabras por canal |
| Resolución vertical | 12 bits |
| Sensibilidad de entrada | 2 mV/div a 10 V/div |
| Impedancia de entrada | 1 MΩ / 50 Ω |
| Pantalla | Pantalla LCD TFT a color de 12,1 pulgadas |
| Interfaz de comunicación | Ethernet (100BASE-TX), USB, GP-IB |
| Alimentación eléctrica | 100-240 V CA, 50/60 Hz |
Yokogawa 701953 Options:
- 701953 - L1 - 16 CH Scanner Box (provided with 1 m cable)
- 701953 - L3 - 16 CH Scanner Box (provided with 3 m cable)
| Model | 701953 |
|---|

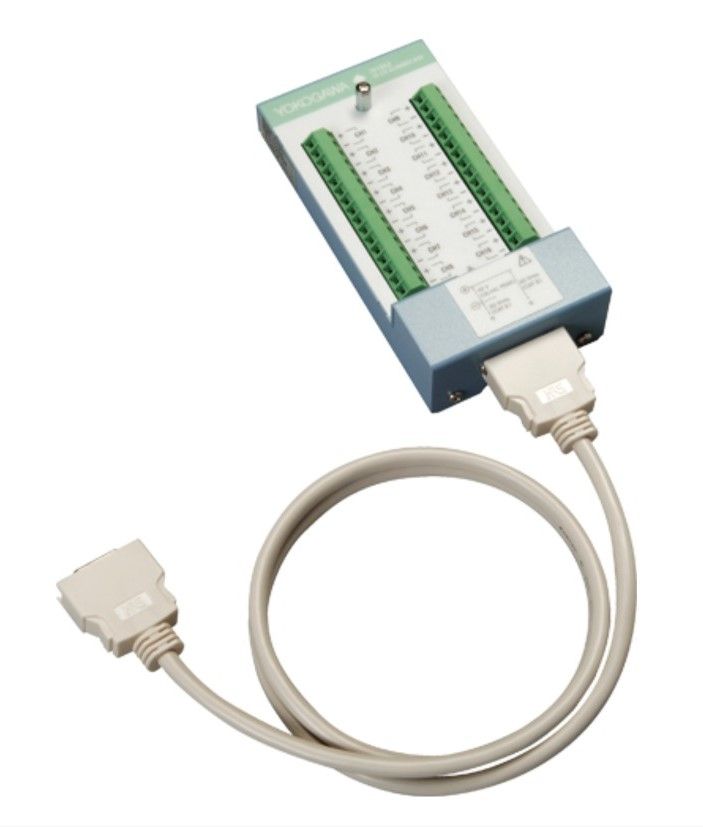

Yokogawa 701953 16-CH Scanner Box for 720221 Module
The Yokogawa 701953 16-CH Scanner Box for 720221 Module is designed for use in industrial process control and data acquisition systems. The use of a 720221 module always requires the External Scanner Box 701953 and both units are required together to make any measurements. Wires for voltage measurement or a thermocouple for temperature measurement are connected to terminal blocks of the external scanner box. The input section is isolated between the ground and terminal blocks and between subchannels.
The Yokogawa 701953 16-CH Scanner Box is equipped with RJC circuit which allows switching between internal and external equipment. Moreover, the external scanner box also incorporates a burnout circuit for detecting a wire break and this burnout detection is always available even during measurement. The burnout detection can be set to ON/OFF for each subchannel. The 701953 supports a range of voltage and cur input signals, including thermocouples, DC, GND signals. The compact design and versatile input options make the Yokogawa 701953 16-CH Scanner Box, a popular choice for use in a variety of industrial applications.
Specifications for Yokogawa 701953 16-CH Scanner Box for 720221 Module Include:
| Maximum sample rate | 10 S/s |
| Resolution | 16 bit |
| Input Types | Voltage, Current, Thermocouple |
| Input Channels | 16 |
