Yokogawa
Yokogawa 720930
Clamp on Probe
16 canales Número de canales
100 MS/s Velocidad de muestreo máxima
12 bits Resolución vertical
20 MHz Ancho de banda
1 MW (Mega palabras) Memoria de adquisición por canal
| Atributo | Valor |
|---|---|
| Número de canales | 16 canales |
| Velocidad de muestreo máxima | 100 MS/s |
| Resolución vertical | 12 bits |
| Ancho de banda | 20 MHz |
| Memoria de adquisición por canal | 1 MW (Mega palabras) |
| Rango de tensión de entrada | ±10 V máximo |
| Interfaz de comunicación | SCSI, GP-IB (IEEE 488) |
| Módulo compatible | Módulo de adquisición para DL700/DL750 |
| Impedancia de entrada | 1 MΩ / 50 Ω seleccionable |
| Temperatura de operación | 5 °C a 40 °C |
| Model | 720930 |
|---|

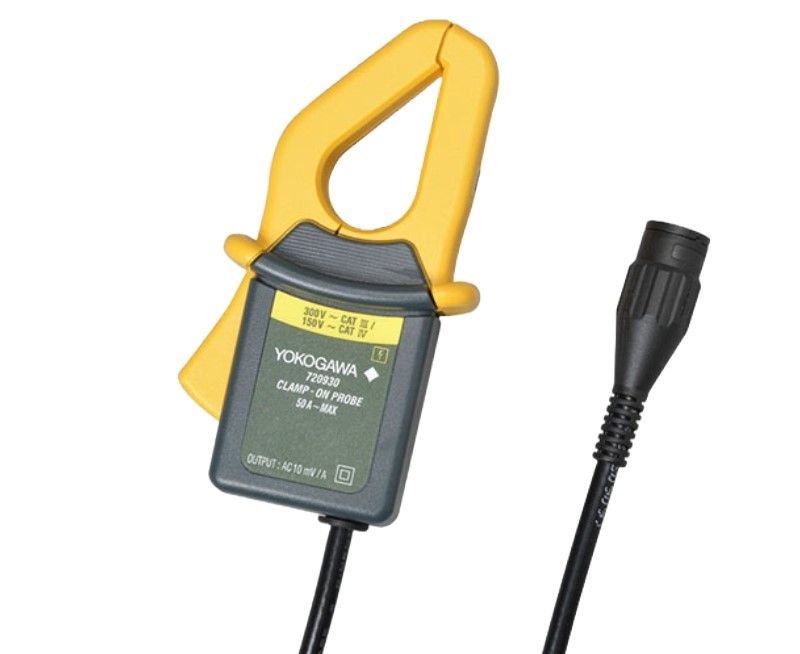

Yokogawa 720930 Clamp on Probe
The Yokogawa 720930 Clamp on Probe is designed for measuring AC cur waveforms. It is compatible with Yokogawa ScopeCoders like the DL350 and DL850 using isolated BNC connections.
Yokogawa 720930 Clamp on Probe is a passive probe, meaning it requires an external power source from the ScopeCoder to operate. It allows for direct waveform readings via analog input modules on the ScopeCoder, providing a convenient way to monitor cur signals without interrupting the circuit.
Specifications for the Yokogawa 720930 Clamp on Probe Include:
| Measurable conductor size | Max. φ18 mm |
| Measuring range | AC 0 to 50 Arms |
| Output voltage | AC 0 to 500 mVrms (10 mV/A) |
| Temperature coefficient | 0.05% f.s./ °C (0 to 50 °C) |
