Fluke 700P01
| Attribute | Value |
|---|---|
| Pressure Range | -12 to 0 psi (-0.83 to 0 bar) |
| Pressure Type | Gauge (Vacuum) |
| Accuracy | ±0.05% of full scale |
| Output Signal | 0.005 VDC per psi |
| Supply Voltage | 9 V to 28 VDC |
| Operating Temperature | -10°C to 50°C (14°F to 122°F) |
| Pressure Port Connection | 1/4 NPT male |
| Media Compatibility | Non-corrosive gases and liquids |
| Electrical Connection | DIN 43650 connector |
| Compatible Instruments | Fluke 700 Series Pressure Calibrators |
Fluke 700P01 Options:
- 700P01 - FLUKE-700P01 - Differential, 10 in. H2O / 0.01 range, 316 SS fittings, Dry/Dry media, 3x overpressure
- 700P01 - FLUKE-700P02 - Differential, 1 psi / 0.0001 range, 316 SS fittings, Dry/Dry media, 3x overpressure
- 700P01 - FLUKE-700P22 - Differential, 1 psi / 0.0001 range, 316 SS fittings, 316 SS/Dry media, 3x overpressure
- 700P01 - FLUKE-700P03 - Differential, 5 psi / 0.0001 range, 316 SS fittings, Dry/Dry media, 3x overpressure
- 700P01 - FLUKE-700P23 - Differential, 5 psi / 0.0001 range, 316 SS fittings, 316 SS/Dry media, 3x overpressure
- 700P01 - FLUKE-700P04 - Differential, 15 psi / 0.001 range, 316 SS fittings, Dry/Dry media, 3x overpressure
- 700P01 - FLUKE-700P24 - Differential, 15 psi / 0.001 range, 316 SS fittings, 316 SS/Dry media, 3x overpressure
- 700P01 - FLUKE-700P05 - Gage, 30 psi / 0.001 range, 316 SS fittings, 316 SS media, 3x overpressure
- 700P01 - FLUKE-700P06 - Gage, 100 psi / 0.01 range, 316 SS fittings, 316 SS media, 3x overpressure
- 700P01 - FLUKE-700P07 - Gage, 500 psi / 0.01 range, 316 SS fittings, 316 SS media, 3x overpressure
- 700P01 - FLUKE-700P08 - Gage, 1000 psi / 0.1 range, 316 SS fittings, 316 SS media, 3x overpressure
- 700P01 - FLUKE-700P09 - Gage, 1500 psi / 0.1 range, 316 SS fittings, 316 SS media, 2x overpressure
- 700P01 - FLUKE-700PA3 - Absolute, 5 psi / 0.0001 range, 316 SS fittings, 316 SS media, 3x overpressure (not compatible with Fluke 701 or 702)
- 700P01 - FLUKE-700PA4 - Absolute, 15 psi / 0.001 range, 316 SS fittings, 316 SS media, 3x overpressure (not compatible with Fluke 701 or 702)
- 700P01 - FLUKE-700PA5 - Absolute, 30 psi / 0.001 range, 316 SS fittings, 316 SS media, 3x overpressure (not compatible with Fluke 701 or 702)
- 700P01 - FLUKE-700PA6 - Absolute, 100 psi / 0.01 range, 316 SS fittings, 316 SS media, 3x overpressure (not compatible with Fluke 701 or 702)
- 700P01 - FLUKE-700PV3 - Vacuum, -5 psi / 0.0001 range, 316 SS fittings, 316 SS/Dry media, 3x overpressure (not compatible with Fluke 701 or 702)
- 700P01 - FLUKE-700PV4 - Vacuum, -15 psi / 0.001 range, 316 SS fittings, 316 SS/Dry media, 3x overpressure (not compatible with Fluke 701 or 702)
- 700P01 - FLUKE-700PD2 - Dual, 1 psi / 0.0001 range, 316 SS fittings, 316 SS/Dry media, 3x overpressure
- 700P01 - FLUKE-700PD3 - Dual, 5 psi / 0.0001 range, 316 SS fittings, 316 SS/Dry media, 3x overpressure
- 700P01 - FLUKE-700PD4 - Dual, 15 psi / 0.001 range, 316 SS fittings, 316 SS/Dry media, 3x overpressure
- 700P01 - FLUKE-700PD5 - Dual, -15/30 psi / 0.001 range, 316 SS fittings, 316 SS media, 3x overpressure
- 700P01 - FLUKE-700PD6 - Dual, -15/100 psi / 0.01 range, 316 SS fittings, 316 SS media, 3x overpressure
- 700P01 - FLUKE-700PD7 - Dual, -15/200 psi / 0.01 range, 316 SS fittings, 316 SS media, 3x overpressure
- 700P01 - FLUKE-700P29 - High, 3000 psi / 0.1 range, Hastelloy C276 fittings, C276 media, 2x overpressure
- 700P01 - FLUKE-700P30 - High, 5000 psi / 0.1 range, Hastelloy C276 fittings, C276 media, 2x overpressure
- 700P01 - FLUKE-700P31 - High, 10000 psi / 1 range, Hastelloy C276 fittings, C276 media, 1.5x overpressure
- 700P01 - FLUKE-700PCK - Pressure Calibration Kit (power supply, interface adapter, cables, and 700PC Pressure Module Calibration software)
- 700P01 - FLUKE-700PMP - Hand operated Pressure Pump, provides pressures up to approximately 150 psi (1000 kPa)
| Model | 700P01 |
|---|

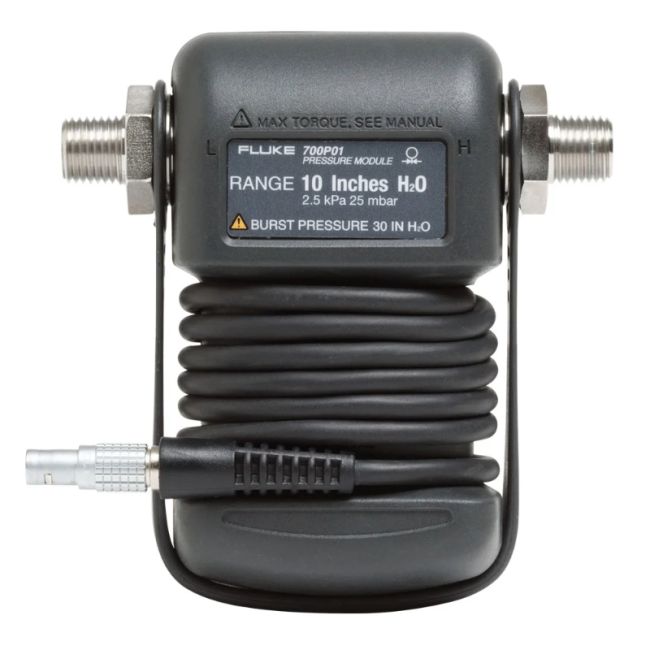

Fluke 700P01 Differential Pressure Module
The Fluke 700P01 Differential Pressure Module allows to measure pressure with the Fluke 700 Series Process Calibrators. It displays pressure readings in any of 10 diffe pressure units specified in the calibrator setup. This differential pressure module has two pressure fittings and measures the difference between the applied pressure on the high fitting versus the low fitting. Fluke 700P01 Differential Pressure Module functions like a gauge module when the low fitting is open.
Fluke 700P01 Differential Pressure Module features internal temperature compensation from 0 °C to 50 °C for full-accuracy performance. The pressure module measures pressure using an internal microprocessor. It receives operating power from and sends digital information to the calibrator. This module can be calibrated locally using the Fluke 700PCK Pressure Calibration Kit, a PC, and a precision pressure source. Rugged urethane molded case of Fluke 700P01 protects the module from rough handling and harsh conditions.
Specifications for the Fluke 700P01 Differential Pressure Module Include:
| Resolution | 0.01 / 0.002 |
| Measurement range | 10 in. H2O / 2.5 kPa |
| Reference Uncertainty (23 ± 3 °C) | 0.02 |
| Total Uncertainty 1 year | 0.3 |
