Fluke 7103
| Attribute | Value |
|---|---|
| Temperature Range | -25°C to 140°C (-13°F to 284°F) |
| Temperature Stability | ±0.005°C |
| Temperature Uniformity | ±0.01°C |
| Display Resolution | 0.001°C |
| Heating/Cooling Time | 15 minutes typical from ambient to 140°C |
| Bath Fluid Capacity | 3.5 liters |
| Immersion Depth | 152 mm (6 in) |
| Power Requirements | 115/230 VAC, 50/60 Hz, 750 W |
| Operating Temperature | 5°C to 40°C ambient |
| Dimensions (W x D x H) | 216 mm x 330 mm x 330 mm (8.5 in x 13 in x 13 in) |
| Model | 7103 |
|---|

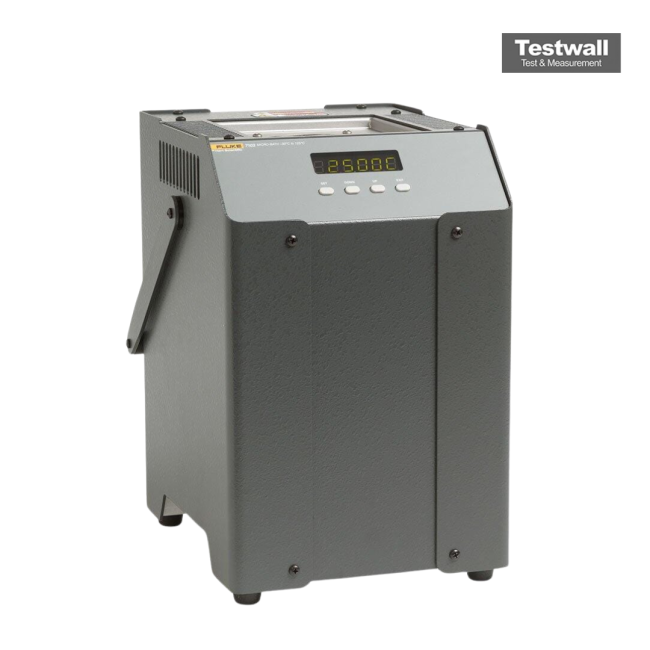

Fluke 7103 Micro Calibration Bath
Fluke 7103 Micro Calibration Bath with extreme stability, can be used anywhere for any type of sensor. It's lighter and smaller than most dry-wells, has a spill-proof lid, and is easier to carry than your lunch box. You can take it where you need to go without carts or excessive effort. It can even be transported with the fluid in them. Fluke 7103 Micro Calibration Bath has RS-232 ports and can be used with MET/TEMP II software. This device also includes contacts to calibrate a thermal switch, eight set-point memory storage, ramp-rate adjust, and over-temperature safety cutout.
Fluke 7103 Micro Calibration Bath is stable to ±0.03 °C or better, depending on the fluid you use. Uniformity is at ±0.02 °C or better for low uncertainties using a reference thermometer. Display accuracy has been improved to ±0.25 °C for quick calibrations without a reference thermometer. It can calibrate any type of sensor including short, square, or odd-shaped sensors. The problems of fit and immersion are virtually eliminated by using a fluid medium rather than a dry-block calibrator. Fluke 7103 Micro Calibration Bath is perfect for liquid-in-glass and bimetal thermometers.
Specifications for the Fluke 7103 Micro Calibration Bath Include:
| Range | €“5 °C to 125 °C (23 °F to 257 °F) |
| Accuracy | ±0.25 °C |
| Stability | ±0.015 °C at €“5 °C (oil 5010), ±0.03 °C at 121 °C (oil 5010) |
| Resolution | 0.01 °C/ °F |
