Fluke 922
| Attribute | Value |
|---|---|
| Measurement Type | Air Flow, Air Velocity, and Differential Pressure |
| Air Velocity Range | 0 to 6,000 ft/min (0 to 30 m/s) |
| Air Flow Range | 0 to 99,990 CFM (0 to 99,990 L/s) |
| Differential Pressure Range | 0 to ±15 in H₂O (0 to ±3735 Pa) |
| Air Velocity Accuracy | ±3% of reading ±0.5% of full scale |
| Differential Pressure Accuracy | ±1% of full scale |
| Display | Backlit LCD, simultaneous display of multiple readings |
| Data Logging | Up to 9 measurements with minimum, maximum, and average functions |
| Power Supply | 9V alkaline battery (NEDA 1604 / IEC 6LR61) |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
Fluke 922 Options:
- 922 - Fluke-922 - Airflow Meter
- 922 - Fluke-922/Kit - Airflow Meter with 12 in Pitot Tube
- 922 - PT12 - Pitot Tube, 12 in
- 922 - TPAK - ToolPak™
| Model | 922 |
|---|

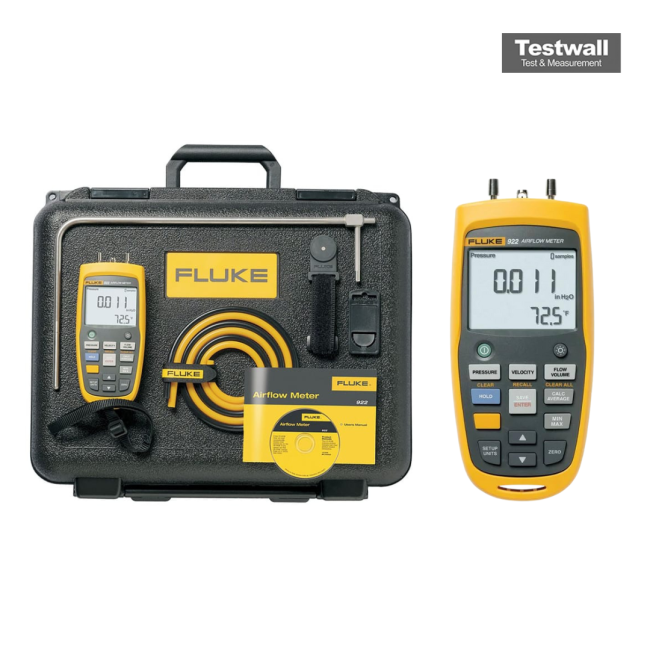

Fluke 922 Air Flow Meter/Micromanometer
The Fluke 922 Air Flow Meter/Micromanometer is a versatile designed for measuring airflow, pressure, and velocity. It's particularly useful for HVAC professionals, building inspectors and anyone working in environments where accurate airflow measurements are essential. The Fluke 922 makes airflow measurements easy by combining pressure, air flow, and velocity into a single, rugged meter. Compatible with most pitot tubes, the Fluke 922 Air Flow Meter/Micromanometer allows technicians to conveniently enter their duct shape and dimensions for maximum measurement accuracy.
Fluke 922 Air Flow Meter/Micromanometer provides precise readings with a resolution down to 0.001 in H2O. The bright white display and ruggedized holster and wrist strap let you take the Fluke 922 into less than ideal environments. The color-coded hoses help you keep track of where your readings are coming from. The simple, intuitive interface provides you to measure pressure, velocity, or airflow at the push of a button. With 99 point data storage capacity, Fluke 922 Air Flow Meter/Micromanometer monitor indoor vs. outdoor pressure relationships and manage the building envelope.
Specifications for the Fluke 922 Air Flow Meter/Micromanometer Include:
| Air pressure range | ± 4000 Pascals |
| Accuracy | ± 1% + 1 Pascal |
| Air velocity | 250 to 16,000 fpm |
| Air flow (Volume) | 0 to 99,999 cfm |
