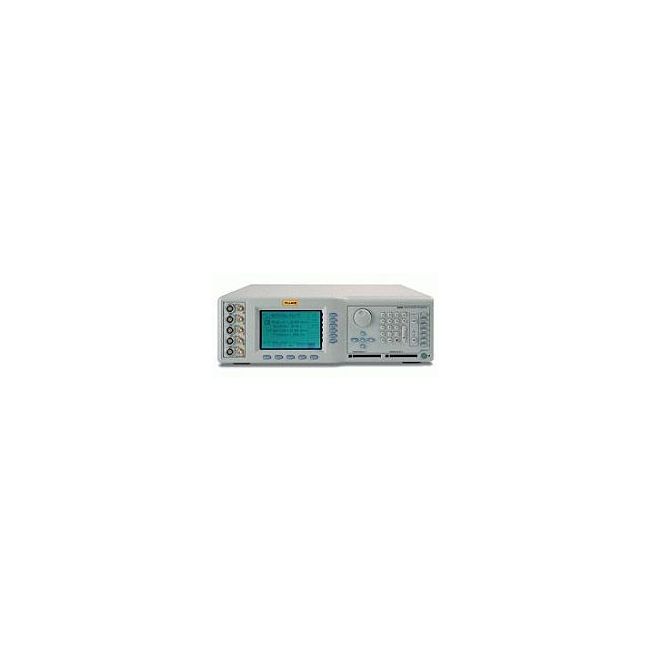

Fluke 9500B
| Attribute | Value |
|---|---|
| Frequency Range | DC to 3.2 GHz (bandwidth dependent on head option) |
| Output Voltage Range | 1 mV to 6 V peak-to-peak into 50 Ω |
| Timebase Accuracy | ±1 ppm (with internal reference) |
| Rise Time | As fast as 110 ps (with 9500B/3200 head) |
| Output Impedance | 50 Ω |
| Waveform Types | Sine, square, pulse, ramp, and composite video signals |
| Amplitude Accuracy | ±1% of setting |
| Operating Temperature | 15 °C to 35 °C |
| Interface/Connectivity | IEEE-488 (GPIB) and RS-232 |
| Power Requirements | 100–240 V AC, 50/60 Hz, 150 VA maximum |
| Model | 9500B |
|---|
The Fluke 9500B is a high-performance calibration system generating leveled sine waves up to 6 GHz and pulse edges as fast as 70 ps. It utilizes Active Head Technology™ to deliver precise amplitude control from 4.44 mV to 3.1 V, ensuring signal integrity and fidelity. With advanced automation capabilities, it seamlessly integrates into GPIB-controlled environments like MET/CAL Plus for efficient, multi-channel calibration workflows.
Ideal for complex calibration requirements, the Fluke 9500B supports full automation and spectrum accuracy. Its wide amplitude range and robust signal generation make it suitable for demanding laboratory and production settings.
Testwall can supply the used Fluke 9500B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Fluke 9500B.
