Additel ADT920-N
| Attribut | Valeur |
|---|---|
| Plage de pression | 0 à 20 000 psi (0 à 1 400 bar) |
| Précision | ±0,05% de la pleine échelle |
| Type de capteur | Capteur de pression piézorésistif |
| Affichage | Écran LCD rétroéclairé |
| Alimentation | Batterie rechargeable Li-ion, autonomie jusqu'à 30 heures |
| Interface de communication | USB, RS-232 |
| Unités de pression | 28 unités de pression disponibles |
| Température de fonctionnement | -10°C à 50°C |
| Indice de protection | IP65 |
| Raccordement de pression | 1/4 NPT mâle en acier inoxydable |
Additel ADT920-N Options:
- ADT920-N - N - 1/4NPT female pressure port
- ADT920-N - N2 - 1/2NPT female pressure port
- ADT920-N - B - 1/4BSP female pressure port
- ADT920-N - B2 - 1/2BSP female pressure port
- ADT920-N - M - M20X1.5 female pressure port
- ADT920-N - SET - Pump and carrying case included
| Model | ADT920-N |
|---|

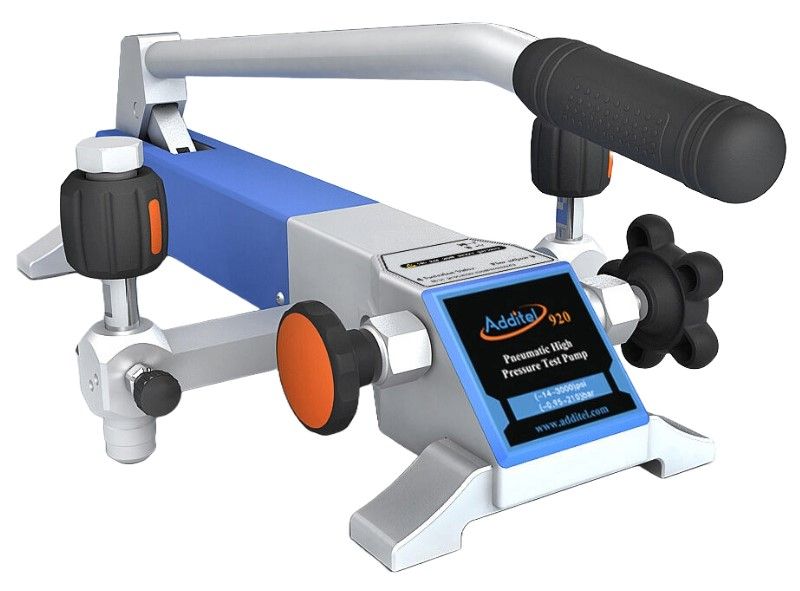

Additel ADT920-N Pneumatic Pump
The Additel ADT920-N Pneumatic Pump is a hand operated pressure pump designed to generate pressure from 95% vacuum to 3,000 psi (200 bar). With a long lever, it takes just 40 seconds to reach 3,000 psi (200 bar). The high volume (HV) model has been outfitted with a higher volume pump to provide added capacity. A quality screw press is designed for fine pressure adjustment, with an adjustment resolution up to 10 Pa (0.1 mbar).
Additel ADT920-N Pneumatic Pump features a specially designed shut-off valve which makes the pressure as stable as possible during calibration. A built-in gas-liquid isolator protects the pump from moisture and dirt to reduce the need for maintenance. The residual liquid in the pump introduced from devices under test will be pushed out and collected during pressure release. Two hand-tight quick connectors installed on the pump allow easy connecting and disconnecting to the test pump without the need for PTFE tape or wrenches. The Additel ADT920-N Pneumatic Pump is an ideal comparison test pump for pressure instruments calibration.
Specifications for the Additel ADT920-N Pneumatic Pump Include:
| Generated Pressure Range | 95% vacuum to 3,000 psi (200 bar) |
| Adjustment Resolution | 10 Pa (0.1 mbar/0.0015 psi) |
| Piston volume | 60 ml for 920, 115 ml for 920 HV |
