Keysight (Agilent)
Keysight (Agilent) EXR058A
Infiniium EXR-Series Oscilloscope, 500 MHz, 8 Channels
DC à 58 GHz Plage de fréquences
2.92 mm (K) mâle Type de connecteur
50 Ω Impédance caractéristique
≤ 1.5 dB à 58 GHz Perte d'insertion maximale
≤ 1.5:1 VSWR maximal
| Attribut | Valeur |
|---|---|
| Plage de fréquences | DC à 58 GHz |
| Type de connecteur | 2.92 mm (K) mâle |
| Impédance caractéristique | 50 Ω |
| Perte d'insertion maximale | ≤ 1.5 dB à 58 GHz |
| VSWR maximal | ≤ 1.5:1 |
| Puissance maximale admissible | 0.5 W (continu) |
| Matériau du corps | Acier inoxydable |
| Température de fonctionnement | -55 °C à +125 °C |
| Application principale | Extension de fréquence pour analyseurs de réseau vectoriels |
| Compatibilité | Compatible avec les analyseurs de réseau vectoriels Keysight série ENA et PNA |
Keysight (Agilent) EXR058A Options:
- EXR058A - EXR2WAV - Arbitrary waveform generator, 50 MHz
- EXR058A - EXR2MSO - Logic analysis, 16 channels (includes N2756A probe)
- EXR058A - EXR2MEM-001 - Memory Upgrade, 200 Mpts/ch
- EXR058A - EXR2MEM-002 - Memory Upgrade, 400 Mpts/ch
- EXR058A - EXR2MEM-004 - Memory Upgrade, 1.6 Gpts Combined Flexible Memory
- EXR058A - EXR2MEM-003 - Memory Upgrade, from 200 Mpts/ch to 400 Mpts/ch
- EXR058A - EXR2MEM-005 - Memory Upgrade, from 200 Mpts/ch to 1.6 Gpts Combined Flexible Memory
- EXR058A - EXR2MEM-006 - Memory Upgrade, from 400 Mpts/ch to 1.6 Gpts Combined Flexible Memory
- EXR058A - EXR2SSD-01T - Upgrade to 1 TB Removable SSD
- EXR058A - EXR2SSD-500 - Additional Removable SSD, 500 GB
- EXR058A - EXR2RACK - Rackmount Kit, 8U
- EXR058A - EXR000-1A7 - ISO 17025 Calibration (Not Accredited)
- EXR058A - EXR000-AMG - ISO 17025 Calibration (Accredited)
- EXR058A - EXR2BW-007 - Bandwidth upgrade from 500 MHz to 1 GHz (8 channels)
- EXR058A - EXR2BW-008 - Bandwidth upgrade from 500 MHz to 2 GHz (8 channels)
- EXR058A - EXR2BW-009 - Bandwidth upgrade from 500 MHz to 2.5 GHz (8 channels)
- EXR058A - EXR2BW-022 - Bandwidth upgrade from 500 MHz to 4 GHz (8 channels)
- EXR058A - EXR2BW-023 - Bandwidth upgrade from 500 MHz to 6 GHz (8 channels)
- EXR058A - D9010SCNA - InfiniiScan Zone Trigger: visual and measurement-based triggering
- EXR058A - D9010JITA - EZJit Complete: timing jitter, vertical noise, and phase noise analysis
- EXR058A - D9010DMBA - De-Embedding: modeling and simulating out cables, probes and fixtures
- EXR058A - D9010ASIA - Advanced Signal Integrity: opening closed eye diagrams
- EXR058A - D9010POWA - Power Integrity, Rails, PMICs: Power Integrity Analysis
- EXR058A - D9010PWRA - Switch Mode Supplies: Power Supply Analysis
- EXR058A - D9011PAMA - PAMn Application: PAMn measurements
- EXR058A - D9010UDAA - User Defined Application: remote measurement automation and test reports
- EXR058A - D9010LSSP - Low Speed Serial Protocol Package (I2C, SPI, Quad SPI, eSPI, RS232, UART, JTAG, I2S, SVID, Manchester, MDIO)
- EXR058A - D9010EMBP - Embedded Protocol Package (10/100 Mbps Ethernet, USB 2.0, USB-PD, eUSB2, PCIe Gen 1, DisplayPort AUX)
- EXR058A - D9010AUTP - Low Speed Automotive Protocol Package (CAN, LIN, CAN-FD, SENT, FlexRay, CAN XL)
- EXR058A - D9010MPLP - MIPI Low Speed Protocol Package (RFFE, I3C, SPMI)
- EXR058A - D9010MCDP - MIPI C-PHY/D-PHY Protocol Package (C-PHY/D-PHY based CSI & DSI, up to 2.5 Gbps)
- EXR058A - D9010MPMP - MIPI M-PHY Protocol Package (CSI 3, DigRFv4, LLI, UniPro, UFS, SSIC, up to Gear 1 Speed)
- EXR058A - D9010MILP - Military Protocol Package (ARINC 429, MIL-STD 1553, SpaceWire)
- EXR058A - D9120AUTP - High Speed Automotive Protocol Package (100BASE-T1 Automotive Ethernet)
- EXR058A - D9010USBP - USB Protocol Package (USB 2.0, eUSB2, HSIC, USB-PD, USB 3.x, USB4 LS, DisplayPort AUX)
- EXR058A - D9011BDLP - Basic Protocol Bundle (includes D9010LSSP, D9010EMBP, D9010MPLP, D9010MILP, D9010AUTP)
- EXR058A - D9010USBC - USB 2.0 Transmitter Compliance Test Software
- EXR058A - D9010ETHC - Ethernet 10M/100M/1GBASE-T and Energy-Efficient Ethernet Compliance Test Software
- EXR058A - D9010EBZC - Ethernet 10G, MG Base-T, N-Base-T Compliance Test Software
- EXR058A - AE6910T - Automotive Ethernet Compliance Test Software (5GBASE-T1, 2.5BASE-T1, 1000BASE-T1, 100BASE-T1, 10BASE-T1S)
- EXR058A - D9010CPHC - MIPI C-PHY Compliance Test Software (up to 1.5 Gbps)
- EXR058A - D9020DPHC - MIPI D-PHY Compliance Test Software (up to 1.5 Gbps, up to CTS v1.2)
- EXR058A - D9030DDRC - JEDEC DDR3 and LPDDR3 Compliance Test Software
- EXR058A - D9010BSEO - Infiniium Offline Software
- EXR058A - D9010JITO - EZJit Complete (Offline): timing jitter, vertical noise, and phase noise analysis
- EXR058A - D9010ASIO - Advanced Signal Integrity (Offline): equalization, InfiniiSim, PAM-N analysis, and crosstalk
- EXR058A - D9010LSPO - Low Speed Protocol Package (Offline)
- EXR058A - D9010HSPO - High Speed Protocol Package (Offline)
- EXR058A - D9110ESSB - Essential Application Software Bundle (subscription)
- EXR058A - D9110AUTB - Automotive Application Software Bundle (subscription)
- EXR058A - D9110MILB - Aerospace and Defense Application Software Bundle (subscription)
- EXR058A - D9110HSSB - High-Speed Serial Application Software Bundle (subscription)
- EXR058A - D9110SINB - Signal Integrity Application Software Bundle (subscription)
- EXR058A - D9110POWB - Power Application Software Bundle (subscription)
- EXR058A - D9110PREB - Premium Application Software Bundle (subscription)
| Model | EXR058A |
|---|

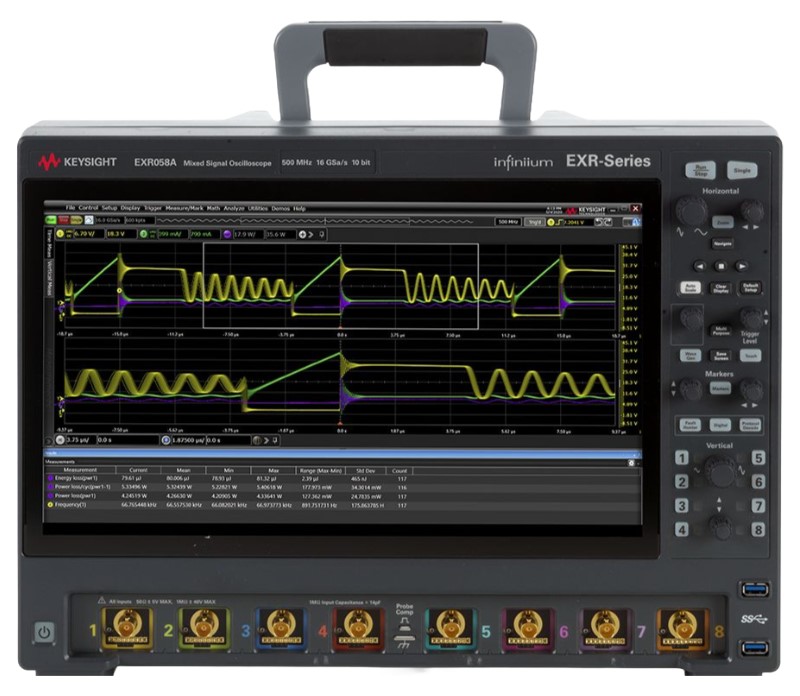

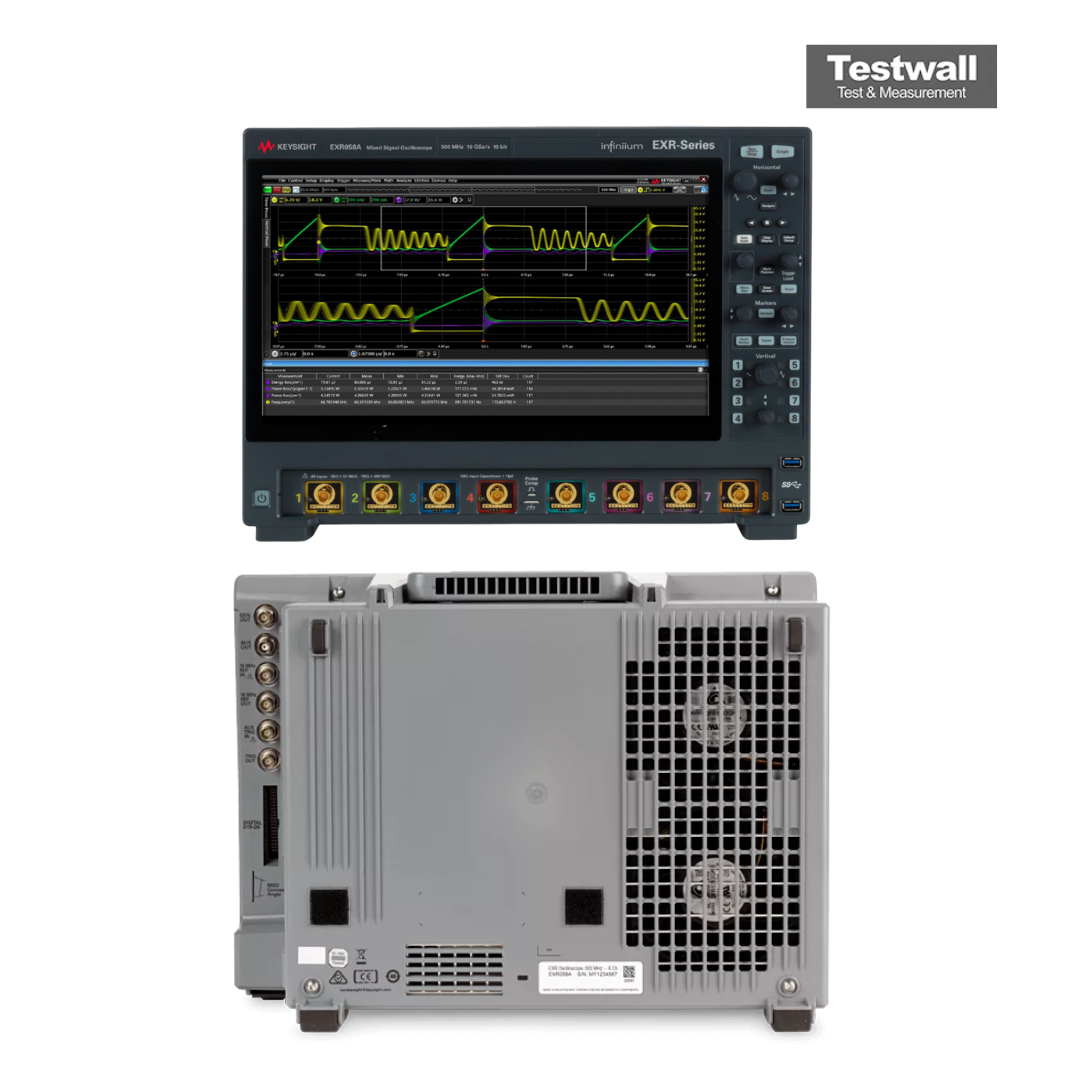

Keysight (Agilent) EXR058A Infiniium EXR-Series Oscilloscope
The Keysight (Agilent) EXR058A Infiniium EXR-Series Oscilloscope is powerful, easy to own, and intuitive to use with 500 MHz bandwidth, 8 analog channels, and dozens of hardware and software options. The model has 100Mpts of standard memory per channel, flexible three-stage triggering, over 50 standard measurements, a massive library of application specific packages, and ASIC-accelerated testing. A high-resolution ADC's usefulness is dependent on the low-noise front end that supports the additional quantization levels.
Keysight (Agilent) EXR058A Infiniium EXR-Series Oscilloscope comes standard with two useful tools that allow you to look forward and backward in time. With history mode, simply stop the oscilloscope at any time to review up to 1,024 previous trigger events. With segmented memory, you can capture > 100,000 events post-trigger for analysis, with no limit between events. Keysight (Agilent) EXR058A Infiniium EXR-Series Oscilloscope offers up to 2.5 GHz bandwidth and 16 GSa/s sample rate on each channel. It also features a 15.6 " full HD touch screen display with dual screen support.
Specifications for the Keysight (Agilent) EXR058A Infiniium EXR-Series Oscilloscope Include:
| Number of analog channels | 8 |
| Bandwidth | 500 MHz |
| Sample rate | 16 GSa/s |
| Resolution | 10 bits, up to 16 with high resolution |
