Keysight (Agilent) M1970V
| Attribut | Valeur |
|---|---|
| Plage de fréquences | 50 GHz à 75 GHz |
| Type de capteur | Capteur de puissance harmonique à diode |
| Plage de puissance | -35 dBm à +20 dBm |
| Connecteur RF | Connecteur WR-15 (guide d'ondes) |
| Incertitude de mesure | ± 0,5 dB (typique) |
| Impédance d'entrée | 50 Ohms |
| Interface de communication | Compatible avec les analyseurs de puissance Keysight série N19xx |
| Coefficient de réflexion (SWR) | 1,35 (typique) |
| Température de fonctionnement | 0 °C à +55 °C |
| Temps de réponse | Inférieur à 200 ms (typique) |
Keysight (Agilent) M1970V Options:
- M1970V - 001 - 50 to 75 GHz waveguide harmonic mixer
- M1970V - 002 - 50 to 80 GHz waveguide harmonic mixer
- M1970V - 101 - 1 meter LO cable
- M1970V - 102 - 3 meter LO cable
- M1970V - 201 - 1.8 meter USB cable
- M1970V - 202 - 3 meter USB cable
- M1970V - 301 - Standard jackstand for mixer
| Model | M1970V |
|---|

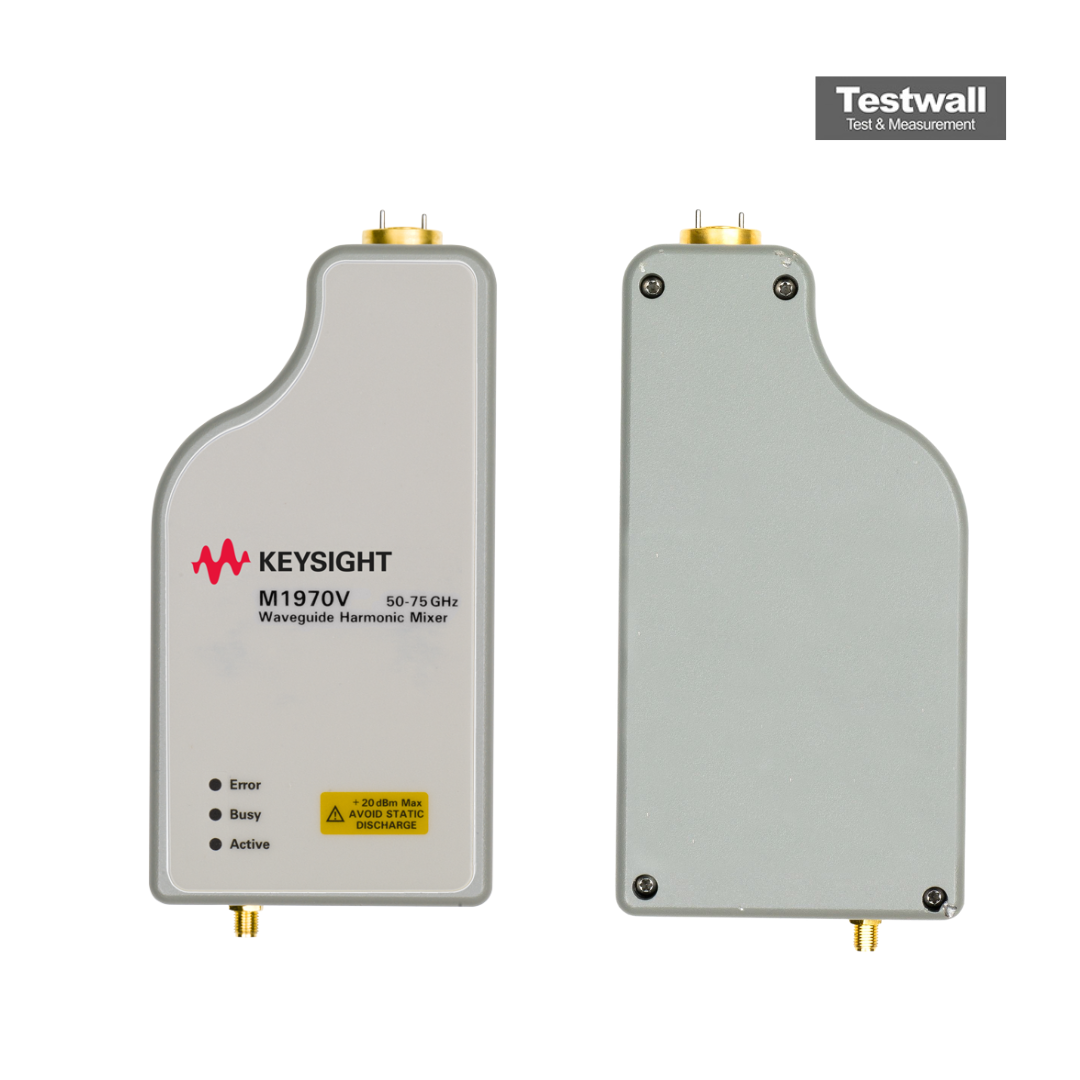

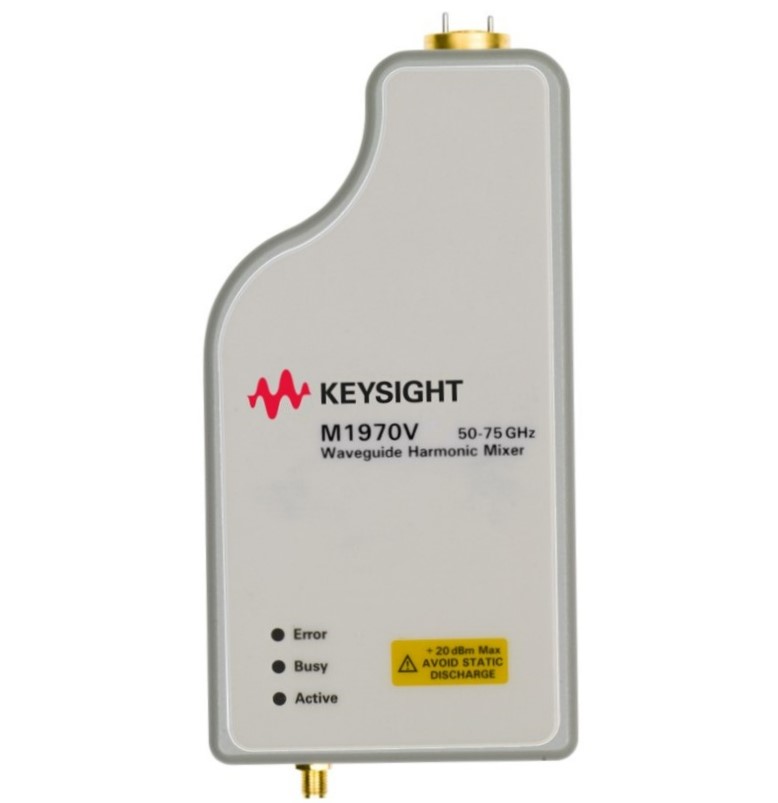

Keysight (Agilent) M1970V Waveguide Harmonic Mixer
The Keysight M1970V 50 to 75/80 GHz waveguide harmonic mixer is an un-preselected mixer that will extend the operating frequency range of the N9030A PXA, N9020A MXA, and N9010A EXA signal analyzers up to 80 GHz. Smart features are embedded to help you to greatly simplify your overall test setup and improve your DANL and TOI of your test system. Go smart with harmonic mixing for your millimeter-wave applications.
Embedded with smart features, the smart mixers provide the most efficient test setup and measurement accuracy that's needed in demanding mixer application test environment. Break free from conventional harmonic mixing test methods and discover the smarter solution using the M1970V waveguide harmonic mixers. Keysight M1970V waveguide harmonic mixers are designed to fully comply with Keysight Technologies' product operating environmental specifications.
Specifications for the Keysight (Agilent) M1970V Waveguide Harmonic Mixer Include:
| Frequency range | 50 to 75 GHz (80GHz optional) |
| LO harmonic number | €“6 |
| Maximum conversion loss | 23 dB |
| Noise figure (nominal) | 34 dB |
