Keysight (Agilent)

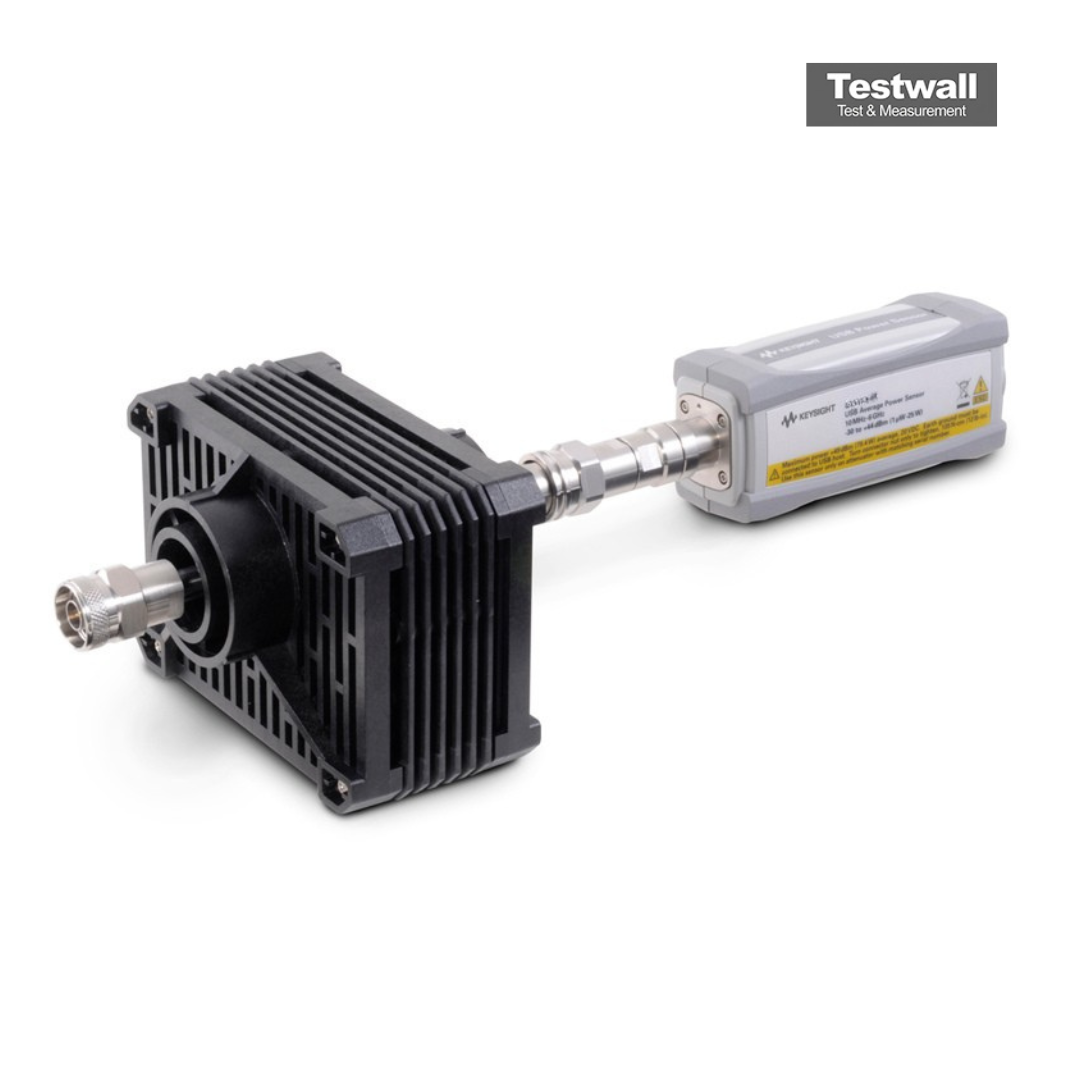

Keysight (Agilent) U2000B
USB Power Sensor, 10 MHz to 18 GHz, -30 dBm to +44 dBm
10 MHz à 18 GHz Plage de fréquences
-60 dBm à +20 dBm Plage de puissance
USB Interface de connexion
Capteur de puissance à diode Type de capteur
50 Ω Impédance d'entrée
| Attribut | Valeur |
|---|---|
| Plage de fréquences | 10 MHz à 18 GHz |
| Plage de puissance | -60 dBm à +20 dBm |
| Interface de connexion | USB |
| Type de capteur | Capteur de puissance à diode |
| Impédance d'entrée | 50 Ω |
| Connecteur d'entrée | Type N (mâle) |
| Temps de mesure | 200 ms (mode normal) |
| Incertitude de mesure | ±0,5 dB (typique) |
| Alimentation | Via port USB (bus USB) |
| Compatibilité logicielle | Compatible avec Keysight BenchVue et interfaces SCPI |
Keysight (Agilent) U2000B Options:
- U2000B - 1A7 - ISO 17025 calibration with test data
- U2000B - A6J - ANSI Z540 calibration with test data
- U2000B - R-51B-001-5Z - Warranty Assurance Plan - Return to Keysight - 5 years
- U2000B - OB1 - English language Operating and Service Guide
- U2000B - ABD - German language Operating and Service Guide
- U2000B - ABE - Spanish language Operating and Service Guide
- U2000B - ABF - French language Operating and Service Guide
- U2000B - ABJ - Japanese language Operating and Service Guide
- U2000B - ABZ - Italian language Operating and Service Guide
- U2000B - AB2 - Simplified Chinese language Operating and Service Guide
| Model | U2000B |
|---|

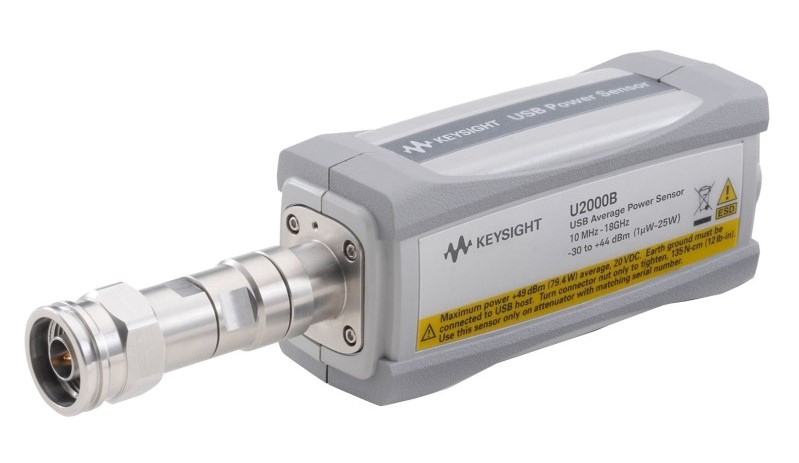

The Keysight U2000B (Agilent) USB Power Sensor makes setup and measurement fast without the need of a power meter, just plug the USB sensor cable to the PC, you can control the USB power sensor with the FREE Power Panel (N1918A) software.
Features and Specifications of the Keysight U2000B USB Power Sensor include:
- Frequency range of 10 MHz to 18 GHz
- Wide dynamic range (-30 dBm to +44 dBm)
- Internal zeroing while connected to the DUT
- High measurement speed of up to 250readings/second
- Support internal and external trigger measurements
- Display power measurements on a PC without the need of power meter
- Compatible with other Agilent instruments
- Internal triggering and trace display capability
