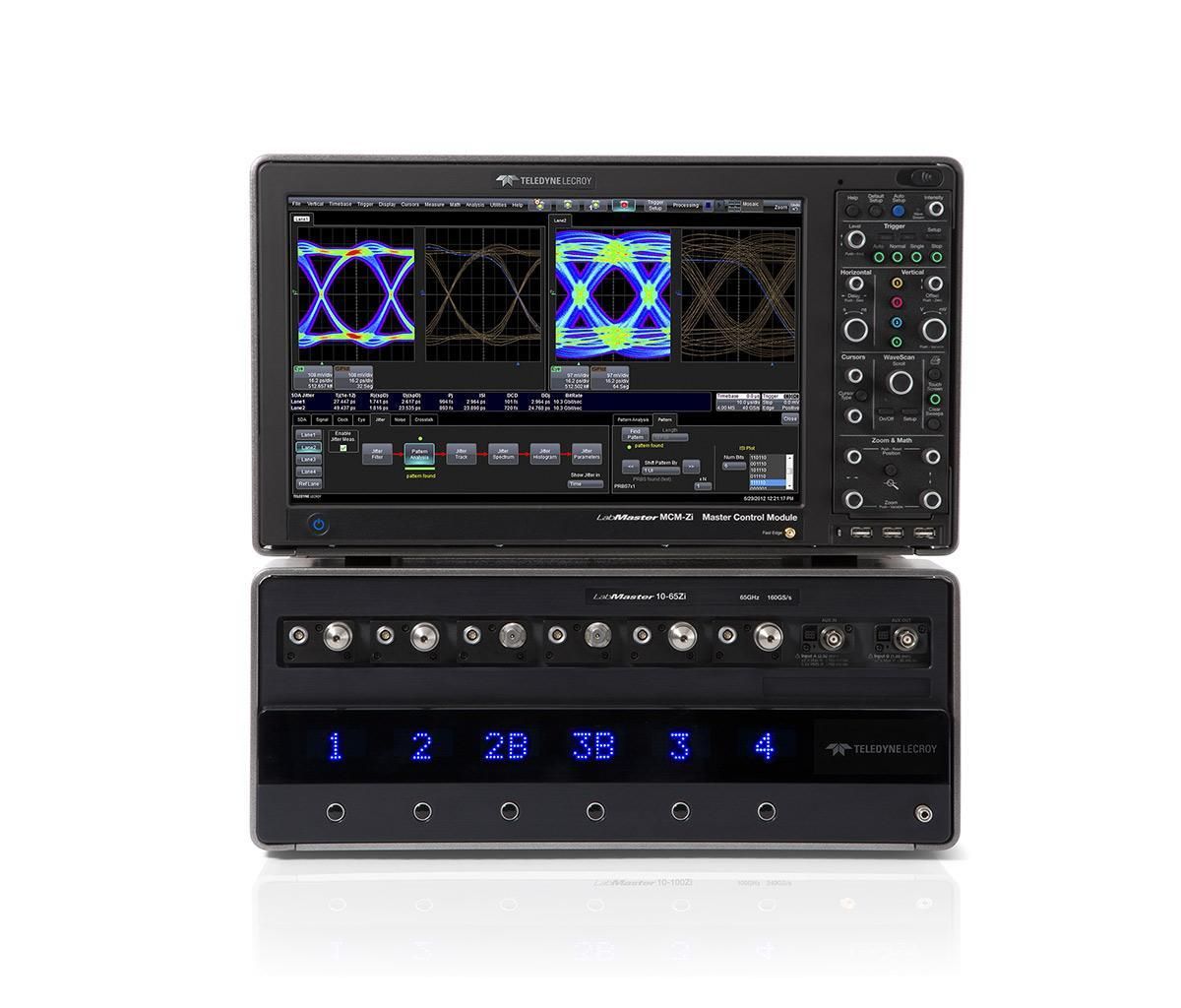

Teledyne LeCroy LABMASTER10-65ZI
65 GHz, 160 GS/s, 2ch, LabMaster Slave Acquisition Module
65 GHz Largeur de bande
160 GS/s Taux d'échantillonnage
2 voies (extensible jusqu'à 20 voies) Nombre de voies
256 Mpts par voie Longueur de mémoire
8 bits Résolution verticale
| Attribut | Valeur |
|---|---|
| Largeur de bande | 65 GHz |
| Taux d'échantillonnage | 160 GS/s |
| Nombre de voies | 2 voies (extensible jusqu'à 20 voies) |
| Longueur de mémoire | 256 Mpts par voie |
| Résolution verticale | 8 bits |
| Sensibilité verticale | 10 mV/div à 100 mV/div |
| Bruit de base (RMS) | 1,5 mV RMS (typique) |
| Gigue de synchronisation (RMS) | Moins de 100 fs RMS |
| Interface utilisateur | Écran tactile Windows, logiciel MAUI Advanced |
| Connectivité | USB, LAN (LXI), GPIB (en option) |
Teledyne LeCroy LABMASTER10-65ZI Options:
- LABMASTER10-65ZI - LM10Zi-STD - 20 Mpts/Ch Standard Memory for LabMaster 10 Zi Acquisition Module
- LABMASTER10-65ZI - LM10Zi-S-32 - 32 Mpts/ch Memory Option for LabMaster 10 Zi Acquisition Module
- LABMASTER10-65ZI - LM10Zi-M-64 - 64 Mpts/Ch Memory Option for LabMaster 10 Zi Acquisition Modules
- LABMASTER10-65ZI - LM10Zi-L-128 - 128 Mpts/Ch Memory Option for LabMaster 10 Zi Acquisition Modules
- LABMASTER10-65ZI - LM10Zi-L-256 - 256 Mpts/Ch Memory Option for LabMaster 10 Zi Acquisition Modules
- LABMASTER10-65ZI - LM10Zi-XL-512 - 512 Mpts/Ch Memory Option for LabMaster 10 Zi Acquisition Modules
- LABMASTER10-65ZI - MCM-Zi-500GB-RHD-02 - Additional 500 GB Hard Drive for MCM-Zi
- LABMASTER10-65ZI - MCM-Zi-24-UPG-48GBRAM - 48 GB RAM Upgrade for MCM-Zi
- LABMASTER10-65ZI - MCM-Zi-24-UPG-96GBRAM - 96 GB RAM Upgrade for MCM-Zi
- LABMASTER10-65ZI - MCM-Zi-24-UPG-192GBRAM - 192 GB RAM Upgrade for MCM-Zi
- LABMASTER10-65ZI - GPIB-3 - GPIB Option for LabMaster MCM-Zi
- LABMASTER10-65ZI - LSIB-2 - High-speed PCIe Gen 1 x4 Digitizer Output
- LABMASTER10-65ZI - LM10Zi-SDAIII-CompleteLinQ - Bundle - Multi-Lane SDA LinQ Framework, including Eye, Jitter, Noise, Crosstalk Measurements, with EyeDrII and VirtualProbe
- LABMASTER10-65ZI - LM10Zi-SDAIII-CrossLinQ - Multi-Lane Serial Data Analysis LinQ Framework, Eye, Jitter, Noise and Crosstalk Measurements
- LABMASTER10-65ZI - LM10Zi-SDAIII-LinQ - Multi-Lane Serial Data Analysis LinQ Framework, Eye and Jitter Measurements
- LABMASTER10-65ZI - LM10Zi-SDAIII-Crosstalk - Single-Lane Serial Data Analysis Framework, Eye, Jitter, Noise and Crosstalk Measurements
- LABMASTER10-65ZI - LM10Zi-SDAIII - Single-Lane Serial Data Analysis Framework, Eye and Jitter Measurements
- LABMASTER10-65ZI - LM10Zi-VIRTUALPROBE - Advanced De-embedding, Emulation and Virtual Probing Toolkit
- LABMASTER10-65ZI - LM10Zi-EYEDRII - Signal Integrity Toolkit - Channel & Fixture De-embedding/Emulation, Tx/Rx Equalization
- LABMASTER10-65ZI - LM10Zi-EYEDRII-VP - Bundle - EyeDrII and VirtualProbe Toolkits
- LABMASTER10-65ZI - LM10Zi-CBL-DE-EMBED - Cable De-embed Option
- LABMASTER10-65ZI - LM10Zi-14GBIT-80B-8B10B-TD - 600 Mb/s to 14.1 Gb/s 80-bit NRZ and 8b/10b Serial Trigger, includes 8b/10b Decode
- LABMASTER10-65ZI - LM10Zi-6GBIT-80B-8B10B-TD - 600 Mb/s to 6.5 Gb/s 80-bit NRZ and 8b/10b Serial Trigger, includes 8b/10b Decode
- LABMASTER10-65ZI - LM10Zi-64b66b D - 64b/66b Decode Annotation Option
- LABMASTER10-65ZI - LM10Zi-8B10B D - 8b/10b Decode Annotation Option
- LABMASTER10-65ZI - LM10Zi-ENETbus D - ENET Decode Option
- LABMASTER10-65ZI - LM10Zi-ENET10Gbus D - Ethernet 10G Decode Option
- LABMASTER10-65ZI - LM10Zi-PCIEbus D - PCI Express Decode Annotation Option
- LABMASTER10-65ZI - LM10Zi-USB3bus D - USB 3.0 Decode Annotation Option
- LABMASTER10-65ZI - LM10Zi-USB2bus D - USB 2.0 Decode Annotation Option
- LABMASTER10-65ZI - LM10Zi-USB2-HSICbus D - USB2-HSIC Decode Option
- LABMASTER10-65ZI - LM10Zi-SATAbus D - SATA Decode Annotation Option
- LABMASTER10-65ZI - LM10Zi-SASbus D - SAS Decode Annotation Option
- LABMASTER10-65ZI - LM10Zi-FCbus D - Fibre Channel Decode Annotation Option
- LABMASTER10-65ZI - LM10Zi-DPHYbus D - MIPI D-PHY Decode Annotation Option
- LABMASTER10-65ZI - LM10Zi-DPHYbus DP - MIPI D-PHY Decode and Physical Layer Test Option
- LABMASTER10-65ZI - LM10Zi-MPHYbus D - MIPI M-PHY Decode Annotation Option
- LABMASTER10-65ZI - LM10Zi-MPHYbus DP - MIPI M-PHY Decode Annotation and Physical Layer Test Option
- LABMASTER10-65ZI - LM10Zi-DigRF3Gbus D - DigRF 3G Decode Option
- LABMASTER10-65ZI - LM10Zi-DIGRFv4bus D - DigRF v4 Decode Option
- LABMASTER10-65ZI - LM10Zi-Audiobus D - Audiobus and Decode Option for I2S, LJ, RJ, and TDM
- LABMASTER10-65ZI - LM10Zi-Audiobus DG - Audiobus, Decode, and Graph Option for I2S, LJ, RJ, and TDM
- LABMASTER10-65ZI - LM10Zi-Manchesterbus D - Manchester Decode Option
- LABMASTER10-65ZI - LM10Zi-I2Cbus D - I2C Bus and Decode Option
- LABMASTER10-65ZI - LM10Zi-SPIbus D - SPI Bus and Decode Option
- LABMASTER10-65ZI - LM10Zi-LINbus D - LIN and Decode Option
- LABMASTER10-65ZI - LM10Zi-UART-RS232bus D - UART and RS-232 and Decode Option
- LABMASTER10-65ZI - LM10Zi-FlexRaybus D - FlexRay and Decode Option
- LABMASTER10-65ZI - LM10Zi-FlexRaybus DP - FlexRay, Decode, and Physical Layer Test Option
- LABMASTER10-65ZI - LM10Zi-CANbus D - CAN and Decode Option
- LABMASTER10-65ZI - LM10Zi-CANbus DM - CAN, Decode and Measure/Graph Option
- LABMASTER10-65ZI - LM10Zi-1553 D - MIL-STD-1553 Decode Option
- LABMASTER10-65ZI - LM10Zi-ARINC429bus DSymbolic - ARINC 429 Symbolic Decode Option
- LABMASTER10-65ZI - LM10Zi-PROTObus MAG - PROTObus MAG Serial Debug Toolkit
- LABMASTER10-65ZI - LM10Zi-ProtoSync - Decode Annotation and Protocol Analyzer Synchronization Software Option
- LABMASTER10-65ZI - LM10Zi-ProtoSync-BT - Decode Annotation and Protocol Analyzer Synchronization Software + Bit Tracer Option
- LABMASTER10-65ZI - LM10Zi-SENTbus D - SENT Decode Option
- LABMASTER10-65ZI - LM10Zi-SPECTRUM - Spectrum Analysis Option
- LABMASTER10-65ZI - LM10Zi-DFP2 - Digital Filter Software Package
- LABMASTER10-65ZI - LM10Zi-SDM - Serial Data Mask Software Package
- LABMASTER10-65ZI - LM10Zi-DDM2 - Disk Drive Measurements Software Package
- LABMASTER10-65ZI - LM10Zi-DDA - Disk Drive Analyzer Software Package
- LABMASTER10-65ZI - LM10Zi-AORM - Advanced Optical Recording Measurement Package
- LABMASTER10-65ZI - LM10Zi-EMC - EMC Pulse Parameter Software Package
- LABMASTER10-65ZI - LM10Zi-JITKIT - Clock Jitter Analysis with Four Views Software Package
- LABMASTER10-65ZI - QPHY-10GBase-KR - QualiPHY Enabled 10GBase-KR Software Option
- LABMASTER10-65ZI - QPHY-LPDDR2 - QualiPHY Enabled LPDDR2 Software Option
- LABMASTER10-65ZI - QPHY-DDR3 - QualiPHY Enabled DDR3 Software Option
- LABMASTER10-65ZI - QPHY-DisplayPort - QualiPHY Enabled DisplayPort Software Option
- LABMASTER10-65ZI - QPHY-HDMI - QualiPHY Enabled HDMI Software Option
- LABMASTER10-65ZI - QPHY-PCIe3 - QualiPHY Enabled PCIe 3.0 Software Option
- LABMASTER10-65ZI - QPHY-PCIe - QualiPHY Enabled PCIe Gen1 Software Option
- LABMASTER10-65ZI - QPHY-SATA-TSG-RSG - QualiPHY Enabled SATA Software Option
- LABMASTER10-65ZI - QPHY-SAS2 - QualiPHY Enabled SAS-2 Software Option
- LABMASTER10-65ZI - QPHY-SFI - QualiPHY Enabled SFI Software Option
- LABMASTER10-65ZI - QPHY-USB3-Tx-Rx - QualiPHY Enabled SuperSpeed USB Transmitter/Receiver Compliance Software Option
- LABMASTER10-65ZI - LabMaster CMH20-Zi - ChannelSync Mainframe Hub to permit LabMaster expansion to up to 20 acquisition modules
- LABMASTER10-65ZI - LabMaster CMH-1ACQMODULE-Zi - Expansion ChannelSync module card for ChannelSync Mainframe Hub (one required per connected acquisition module)
- LABMASTER10-65ZI - MCM-Zi-RACKMOUNT - MCM-Zi Rackmount Kit
- LABMASTER10-65ZI - LM10Zi-ACQMOD-RACKMOUNT - LabMaster 10 Zi Acquisition Module Rackmount Kit
- LABMASTER10-65ZI - MCM-Zi-SOFTCASE - LabMaster MCM-Zi Softcase
- LABMASTER10-65ZI - LM10Zi-ACQMOD-SOFTCASE - LabMaster 10 Zi Acquisition Module Soft Carrying Case
| Model | LABMASTER10-65ZI |
|---|
Le Teledyne LeCroy LabMaster10-65Zi est un oscilloscope modulaire à ultra-large bande passante allant jusqu’à 65 GHz, conçu pour l’analyse de signaux de nouvelle génération. Avec une bande passante configurable de 20 GHz à 65 GHz, une fréquence d’échantillonnage maximale de 160 GS/s par canal et une prise en charge jusqu’à 80 canaux analogiques à 36 GHz ou 40 canaux à 65 GHz, il offre des performances de pointe. Sa mémoire longue de 512 Mpts par canal et son jitter intrinsèque inférieur à 50 fs rms garantissent une précision inégalée dans les mesures haut débit.
Le LabMaster10-65Zi est parfaitement adapté aux communications optiques, aux systèmes de données à l’échelle du téra-bit et aux applications de recherche avancées. L’architecture ChannelSync permet un jitter inter-canaux inférieur à 130 fs, assurant une synchronisation optimale entre les modules.
Testwall peut fournir le LabMaster10-65Zi utilisé, entièrement testé. Avec un support expert et une livraison mondiale, Testwall garantit des instruments haute performance avec une fiabilité et une qualité de service inégalées. Contactez-nous directement si vous avez besoin d’un service de recalibration ou de réparation du LabMaster10-65Zi.
