Hipotronics H815PL-A
| Attribute | Value |
|---|---|
| Output Voltage | 15 kV DC |
| Output Current | 8 mA |
| Power Rating | 120 VA |
| Input Voltage | 115 V AC, 60 Hz |
| Test Type | DC Hipot / Dielectric Withstand |
| Voltage Regulation | Line and Load Regulated |
| Metering | Digital Panel Meters for Voltage and Current |
| Safety Features | Ground Fault Protection, Fail-Safe Return to Zero |
| Output Polarity | Negative Ground (Standard) |
| Enclosure | Portable Bench-Top Unit |
Hipotronics H815PL-A Options:
- H815PL-A - 815PL-A - 15 kV, 5 mA DC Hipot, 120 V 50/60 Hz input
- H815PL-A - 815PL-B - 15 kV, 5 mA DC Hipot, 230 V 50/60 Hz input
- H815PL-A - SPK1-815PL - Spare Parts Kit for 815PL
| Model | H815PL-A |
|---|

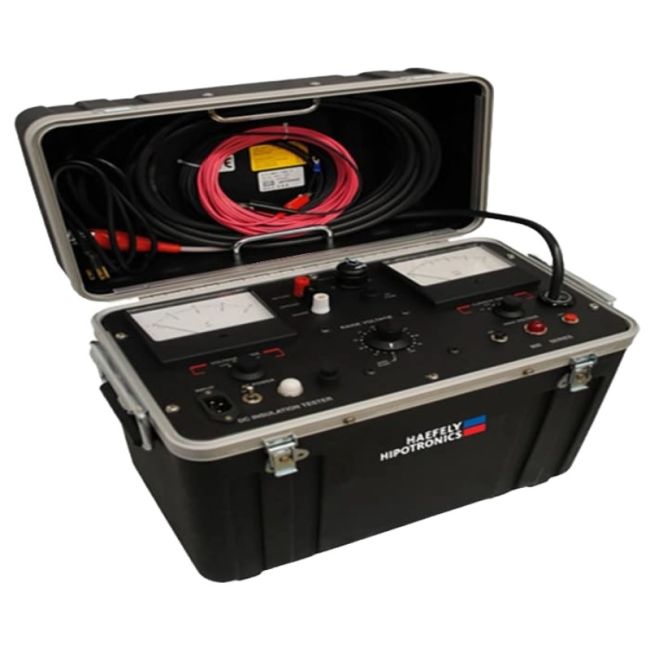

Hipotronics H815PL-A DC Hipot Tester
The Hipotronics H815PL-A DC Hipot Tester is an economical solution to DC field testing of cables, terminations, motors, generators and other electrical apparatus. The Hipotronics H815PL-A and is self-contained in a single, rugged and durable enclosure, which is complete from input line cord to high voltage output cable. Cable storage space is conveniently located inside. Hipotronics H815PL-A DC Hipot Tester is compact and lightweight in design which makes it suitable for field orientated applications.
The Hipotronics H815PL-A DC Hipot Tester features accurate kV meter readings regardless of load current. Accurate voltage and cur measurements are assured via voltage readings that are taken directly at the output of the high voltage transformer and cur measurements are taken in the return leg. Safe discharging of both the test object and the high voltage transformer occur whenever the high voltage is turned off. Output power is provided by means of a full-wave voltage doubling rectifier circuit with silicon rectifiers.
Specifications for the Hipotronics H815PL-A DC Hipot Tester Include:
| Output Voltage | 0 -15 kV |
| Output Current | 5 mA |
| Metering Accuracy | ±2% of full scale |
| Ripple | 0.5% per mA with rated resistance |
