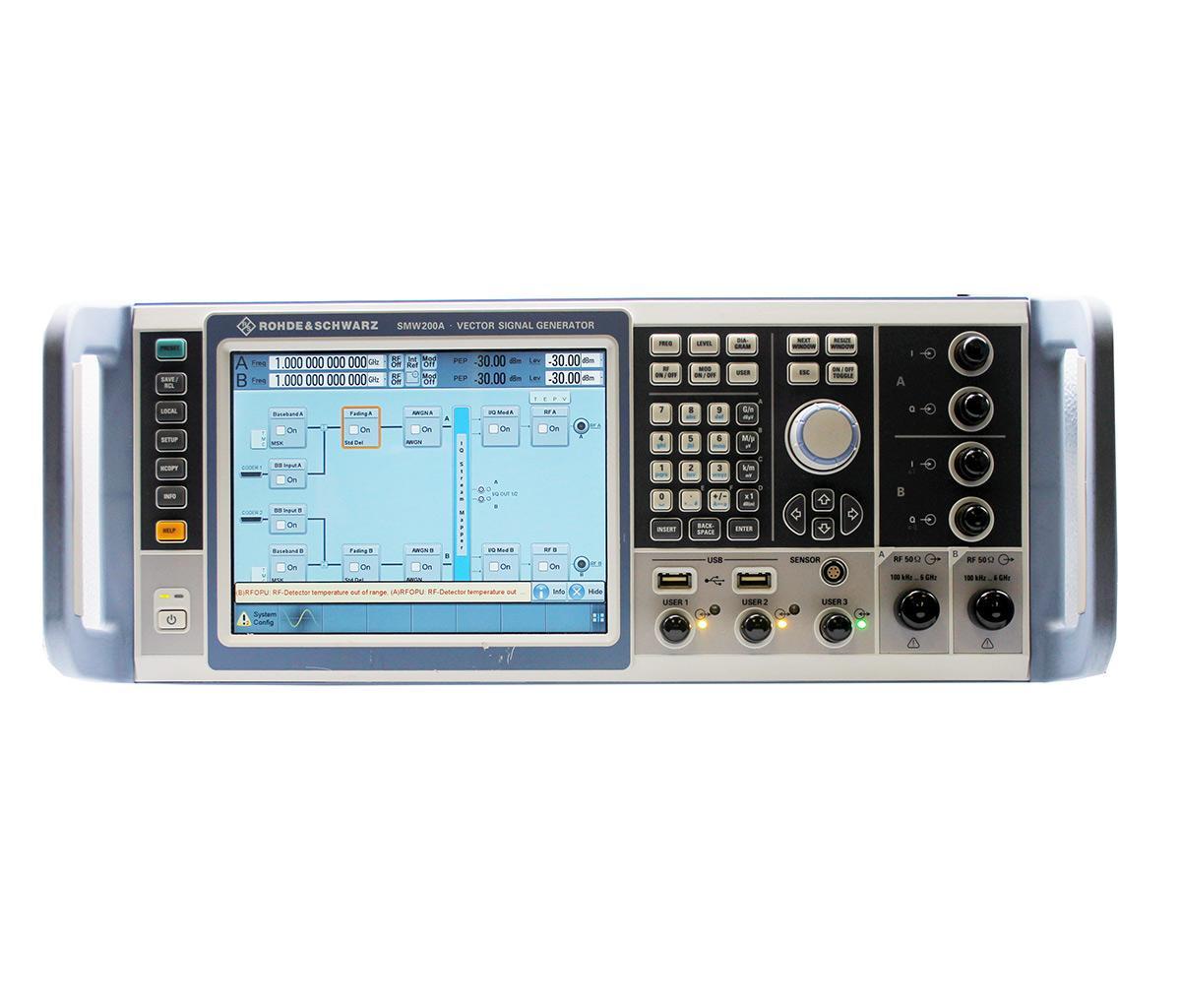

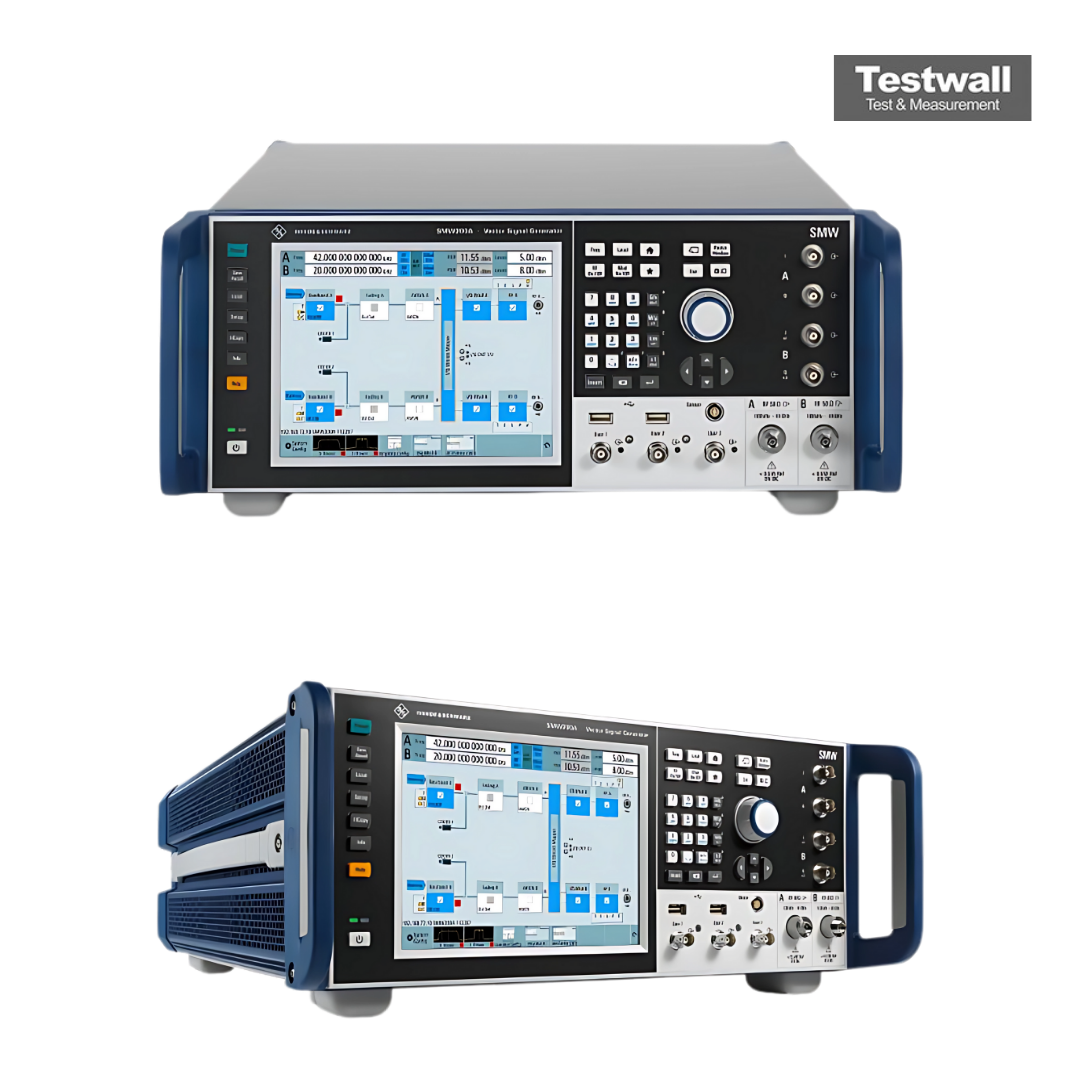

Rohde & Schwarz SMW200A-B106 6 GHz 2-Channel Vector Signal Generator, Type N (f)
6 GHz 2-Channel Vector Signal Generator
100 kHz - 6 GHz Gamma di frequenza
2 canali Numero di canali RF
Type N (femmina) Connettore RF
+18 dBm Livello di uscita massimo
0,001 Hz Risoluzione di frequenza
| Attributo | Valore |
|---|---|
| Gamma di frequenza | 100 kHz - 6 GHz |
| Numero di canali RF | 2 canali |
| Connettore RF | Type N (femmina) |
| Livello di uscita massimo | +18 dBm |
| Risoluzione di frequenza | 0,001 Hz |
| Larghezza di banda di modulazione I/Q | fino a 2 GHz |
| Tipo di modulazione supportata | AM, FM, PM, I/Q, modulazione digitale vettoriale |
| Purezza spettrale (rumore di fase) | -138 dBc/Hz a 20 kHz di offset (a 1 GHz) |
| Interfacce di connettività | LAN (LXI), USB, GPIB (opzionale) |
| Alimentazione | 100 - 240 V CA, 50/60 Hz |
Rohde & Schwarz SMW200A-B106 6 GHz 2-Channel Vector Signal Generator, Type N (f) Options:
- SMW200A-B106 - SMW-B103 - Frequency Option RF Path A, 100 kHz to 3 GHz
- SMW200A-B106 - SMW-B106 - Frequency Option RF Path A, 100 kHz to 6 GHz
- SMW200A-B106 - SMW-B112 - Frequency Option RF Path A, 100 kHz to 12.75 GHz
- SMW200A-B106 - SMW-B120 - Frequency Option RF Path A, 100 kHz to 20 GHz
- SMW200A-B106 - SMW-B131 - Frequency Option RF Path A, 100 kHz to 31.8 GHz
- SMW200A-B106 - SMW-B140 - Frequency Option RF Path A, 100 kHz to 40 GHz
- SMW200A-B106 - SMW-B140N - Frequency Option RF Path A, 100 kHz to 40 GHz, I/Q modulation bandwidth and minimum pulse width limited
- SMW200A-B106 - SMW-B203 - Frequency Option RF Path B, 100 kHz to 3 GHz
- SMW200A-B106 - SMW-B206 - Frequency Option RF Path B, 100 kHz to 6 GHz
- SMW200A-B106 - SMW-B212 - Frequency Option RF Path B, 100 kHz to 12.75 GHz
- SMW200A-B106 - SMW-B220 - Frequency Option RF Path B, 100 kHz to 20 GHz
- SMW200A-B106 - SMW-B13 - Signal Routing and Baseband Main Module, one I/Q path to RF
- SMW200A-B106 - SMW-B13T - Signal Routing and Baseband Main Module, two I/Q paths to RF
- SMW200A-B106 - SMW-B13XT - Wideband Baseband Main Module, two I/Q paths to RF
- SMW200A-B106 - SMW-B20 - FM/φM Modulator
- SMW200A-B106 - SMW-B22 - Enhanced Phase Noise Performance and FM/φM Modulator
- SMW200A-B106 - SMW-B90 - Phase Coherence
- SMW200A-B106 - SMW-K22 - Pulse Modulator
- SMW200A-B106 - SMW-K23 - Pulse Generator
- SMW200A-B106 - SMW-K24 - Multifunction Generator
- SMW200A-B106 - SMW-K739 - Differential Analog I/Q Inputs
- SMW200A-B106 - SMW-B10 - Baseband Generator with ARB (64 Msample) and Digital Modulation (realtime), 120 MHz RF bandwidth
- SMW200A-B106 - SMW-K16 - Differential Analog I/Q Outputs
- SMW200A-B106 - SMW-K18 - Digital Baseband Output
- SMW200A-B106 - SMW-K501 - Extended Sequencing
- SMW200A-B106 - SMW-K511 - ARB Memory Extension to 512 Msample
- SMW200A-B106 - SMW-K512 - ARB Memory Extension to 1 Gsample
- SMW200A-B106 - SMW-K522 - Baseband Extension to 160 MHz RF bandwidth
- SMW200A-B106 - SMW-K551 - Slow I/Q
- SMW200A-B106 - SMW-B9 - Wideband Baseband Generator with ARB (256 Msample), 500 MHz RF bandwidth
- SMW200A-B106 - SMW-K17 - Wideband Differential Analog I/Q Outputs
- SMW200A-B106 - SMW-K515 - ARB Memory Extension to 2 Gsample
- SMW200A-B106 - SMW-K526 - Baseband Extension to 2000 MHz RF bandwidth
- SMW200A-B106 - SMW-K62 - Additive White Gaussian Noise (AWGN)
- SMW200A-B106 - SMW-K540 - Envelope Tracking
- SMW200A-B106 - SMW-K541 - AM/AM, AM/φM Predistortion
- SMW200A-B106 - SMW-B14 - Fading Simulator
- SMW200A-B106 - SMW-K71 - Dynamic Fading
- SMW200A-B106 - SMW-K72 - Enhanced Fading Models
- SMW200A-B106 - SMW-K73 - OTA-MIMO Fading Enhancements
- SMW200A-B106 - SMW-K74 - MIMO Fading/Routing
- SMW200A-B106 - SMW-K75 - Higher-Order MIMO
- SMW200A-B106 - SMW-K76 - Multiple Entities
- SMW200A-B106 - SMW-K78 - Radar Echo Generation
- SMW200A-B106 - SMW-K550 - Stream Extender
- SMW200A-B106 - SMW-K820 - Customized Dynamic Fading
- SMW200A-B106 - SMW-K40 - GSM/EDGE
- SMW200A-B106 - SMW-K41 - EDGE Evolution
- SMW200A-B106 - SMW-K42 - 3GPP FDD
- SMW200A-B106 - SMW-K46 - CDMA2000®
- SMW200A-B106 - SMW-K47 - 1xEV-DO
- SMW200A-B106 - SMW-K49 - IEEE 802.16
- SMW200A-B106 - SMW-K50 - TD-SCDMA
- SMW200A-B106 - SMW-K51 - TD-SCDMA Enhanced BS/MS Tests
- SMW200A-B106 - SMW-K52 - DVB-H/DVB-T
- SMW200A-B106 - SMW-K54 - IEEE 802.11 (a/b/g/n)
- SMW200A-B106 - SMW-K55 - EUTRA/LTE
- SMW200A-B106 - SMW-K60 - Bluetooth® EDR
- SMW200A-B106 - SMW-K61 - Multicarrier CW Signal Generation
- SMW200A-B106 - SMW-K68 - TETRA Release 2
- SMW200A-B106 - SMW-K69 - LTE Closed-Loop BS Test
- SMW200A-B106 - SMW-K81 - LTE Log File Generation
- SMW200A-B106 - SMW-K83 - 3GPP FDD HSPA/HSPA+, Enhanced BS/MS Tests
- SMW200A-B106 - SMW-K84 - EUTRA/LTE Release 9 and Enhanced Features
- SMW200A-B106 - SMW-K85 - EUTRA/LTE Release 10 (LTE-Advanced)
- SMW200A-B106 - SMW-K86 - IEEE 802.11ac
- SMW200A-B106 - SMW-K87 - 1xEV-DO Rev. B
- SMW200A-B106 - SMW-K89 - NFC A/B/F
- SMW200A-B106 - SMW-K112 - LTE Release 11 and Enhanced Features
- SMW200A-B106 - SMW-K113 - LTE Release 12
- SMW200A-B106 - SMW-K114 - 5G Air Interface Candidates
- SMW200A-B106 - SMW-K115 - Cellular IoT
- SMW200A-B106 - SMW-K116 - DVB-S2/DVB-S2X
- SMW200A-B106 - SMW-K141 - IEEE 802.11ad
- SMW200A-B106 - SMW-K542 - Baseband Power Sweep
- SMW200A-B106 - SMW-K240 - GSM/EDGE (R&S WinIQSIM2)
- SMW200A-B106 - SMW-K241 - EDGE Evolution (R&S WinIQSIM2)
- SMW200A-B106 - SMW-K242 - 3GPP FDD (R&S WinIQSIM2)
- SMW200A-B106 - SMW-K244 - GPS 1 Satellite (R&S WinIQSIM2)
- SMW200A-B106 - SMW-K246 - CDMA2000® (R&S WinIQSIM2)
- SMW200A-B106 - SMW-K247 - 1xEV-DO (R&S WinIQSIM2)
- SMW200A-B106 - SMW-K249 - IEEE 802.16 (R&S WinIQSIM2)
- SMW200A-B106 - SMW-K250 - TD-SCDMA (R&S WinIQSIM2)
- SMW200A-B106 - SMW-K251 - TD-SCDMA Enhanced BS/MS Tests (R&S WinIQSIM2)
- SMW200A-B106 - SMW-K252 - DVB-H/DVB-T (R&S WinIQSIM2)
- SMW200A-B106 - SMW-K253 - DAB/T-DMB (R&S WinIQSIM2)
- SMW200A-B106 - SMW-K254 - IEEE 802.11n (R&S WinIQSIM2)
- SMW200A-B106 - SMW-K255 - EUTRA/LTE (R&S WinIQSIM2)
- SMW200A-B106 - SMW-K260 - Bluetooth® EDR (R&S WinIQSIM2)
- SMW200A-B106 - SMW-K261 - Multicarrier CW Signal Generation (R&S WinIQSIM2)
- SMW200A-B106 - SMW-K262 - Additive White Gaussian Noise AWGN (R&S WinIQSIM2)
- SMW200A-B106 - SMW-K266 - Galileo 1 Satellite (R&S WinIQSIM2)
- SMW200A-B106 - SMW-K268 - TETRA Release 2 (R&S WinIQSIM2)
- SMW200A-B106 - SMW-K283 - 3GPP FDD HSPA/HSPA+, Enhanced BS/MS Tests (R&S WinIQSIM2)
- SMW200A-B106 - SMW-K284 - EUTRA/LTE Release 9 and Enhanced Features (R&S WinIQSIM2)
- SMW200A-B106 - SMW-K285 - EUTRA/LTE Release 10 LTE-Advanced (R&S WinIQSIM2)
- SMW200A-B106 - SMW-K286 - IEEE 802.11ac (R&S WinIQSIM2)
- SMW200A-B106 - SMW-K287 - 1xEV-DO Rev. B (R&S WinIQSIM2)
- SMW200A-B106 - SMW-K289 - NFC A/B/F (R&S WinIQSIM2)
- SMW200A-B106 - SMW-K294 - Glonass 1 Satellite (R&S WinIQSIM2)
- SMW200A-B106 - SMW-K407 - Beidou 1 Satellite (R&S WinIQSIM2)
- SMW200A-B106 - SMW-K412 - LTE Release 11 and Enhanced Features (R&S WinIQSIM2)
- SMW200A-B106 - SMW-K413 - EUTRA/LTE Release 12 (R&S WinIQSIM2)
- SMW200A-B106 - SMW-K441 - IEEE 802.11ad (R&S WinIQSIM2)
- SMW200A-B106 - SMW-K300 - Pulse Sequencing
- SMW200A-B106 - SMW-K301 - Enhanced Pulse Sequencing
- SMW200A-B106 - SMW-K308 - Direction Finding
- SMW200A-B106 - SMW-K350 - DFS Signal Generation
- SMW200A-B106 - SMW-B81 - Rear Panel Connectors for RF path A (3/6 GHz) and I/Q
- SMW200A-B106 - SMW-B82 - Rear Panel Connectors for RF path B (3/6 GHz)
- SMW200A-B106 - SMW-B83 - Rear Panel Connectors for RF path A (20/31.8/40 GHz) and I/Q
- SMW200A-B106 - SMW-B84 - Rear Panel Connectors for RF path B (20 GHz)
- SMW200A-B106 - SMW-B93 - Solid State Drive
| Model | SMW200A-B106 |
|---|
Il Rohde & Schwarz SMW200A con opzione B106 offre prestazioni RF precise da 100 kHz a 6 GHz, con architettura modulare a doppio canale, modulazione I/Q a 2 GHz, rumore di fase minimo e ampia generazione di forme d’onda, ideale per test avanzati su 5G, satelliti e radar.
Supporta vari standard di modulazione, simulazione di fading fino a 8x8 MIMO e garantisce elevata precisione EVM, perfetto per applicazioni wireless moderne e automazione dei test.
Testwall può fornire il Rohde & Schwarz SMW200A B106 6 GHz 2-Channel Vector Signal Generator usato, completamente testato. Con supporto esperto e consegna globale, Testwall assicura strumenti ad alte prestazioni con affidabilità e qualità del servizio senza pari. Contattateci direttamente se avete bisogno di calibrazione o riparazione del Rohde & Schwarz SMW200A B106 6 GHz 2-Channel Vector Signal Generator.
