Keithley 2220-30-1
| Attribute | Value |
|---|---|
| Number of Outputs | 2 |
| Output Voltage (per channel) | 0 to 30V |
| Output Current (per channel) | 0 to 1A |
| Total Power Output | 60W |
| Voltage Programming Accuracy | ±(0.05% + 10mV) |
| Current Programming Accuracy | ±(0.2% + 3mA) |
| Load Regulation (Voltage) | ≤5mV |
| Ripple and Noise (RMS) | ≤3mV RMS |
| Interface | USB, GPIB |
| Display | Dual 4-digit LED display for voltage and current |
Keithley 2220-30-1 Options:
- 2220-30-1 - 2220G-30-1 - Programmable Dual Channel DC Power Supply with GPIB Interface
- 2220-30-1 - 2220J-30-1 - Programmable Dual Channel DC Power Supply for Japan
- 2220-30-1 - 2220GJ-30-1 - Programmable Dual Channel DC Power Supply with GPIB Interface for Japan
- 2220-30-1 - 2230-30-1 - Programmable Triple Channel DC Power Supply
- 2220-30-1 - 2230G-30-1 - Programmable Triple Channel DC Power Supply with GPIB Interface
- 2220-30-1 - 2230J-30-1 - Programmable Triple Channel DC Power Supply for Japan
- 2220-30-1 - 2230GJ-30-1 - Programmable Triple Channel DC Power Supply with GPIB Interface for Japan
- 2220-30-1 - CS-1655-15 - Rear Panel Mating Connector for Series 2200 Power Supplies
- 2220-30-1 - JUMPER - Shorting Jumper for CS-1655-15 Connector (order as: 2220-30-1 JUMPER)
- 2220-30-1 - 4299-7 - Universal Fixed Rack Mount Kit
- 2220-30-1 - RMU2U - Fixed Rack Mount Kit
- 2220-30-1 - 386-7598-xx - RMU2U Rack Mount Cosmetic Filler Panel
- 2220-30-1 - USB-1-1 - USB Cable
- 2220-30-1 - KPCI-488LPA - IEEE-488.2 Interface Board for the PCI Bus
- 2220-30-1 - 7007-05 - Double Shielded Premium IEEE-488 Interface Cables, 0.5m (1.6 ft)
- 2220-30-1 - 7007-1 - Double Shielded Premium IEEE-488 Interface Cables, 1m (3.2 ft)
- 2220-30-1 - 7007-2 - Double Shielded Premium IEEE-488 Interface Cables, 2m (6.5 ft)
- 2220-30-1 - 7007-3 - Double Shielded Premium IEEE-488 Interface Cables, 3m (10 ft)
- 2220-30-1 - 7007-4 - Double Shielded Premium IEEE-488 Interface Cables, 4m (13 ft)
- 2220-30-1 - 2220-30-1-EW - 1 additional year of factory warranty
- 2220-30-1 - 2220-30-1-5Y-EW - 2 additional years of factory warranty beyond the standard 3-year warranty
- 2220-30-1 - C/2220-30-1-3Y-STD - 3 calibrations within 3 years of purchase
- 2220-30-1 - C/2220-30-1-3Y-DATA - 3 (ANSI-Z540-1 compliant) calibrations within 3 years of purchase
- 2220-30-1 - C/2220-30-1-5Y-STD - 5 calibrations within 5 years of purchase
- 2220-30-1 - C/2220-30-1-5Y-DATA - 5 (ANSI-Z540-1 compliant) calibrations within 5 years of purchase
| Model | 2220-30-1 |
|---|

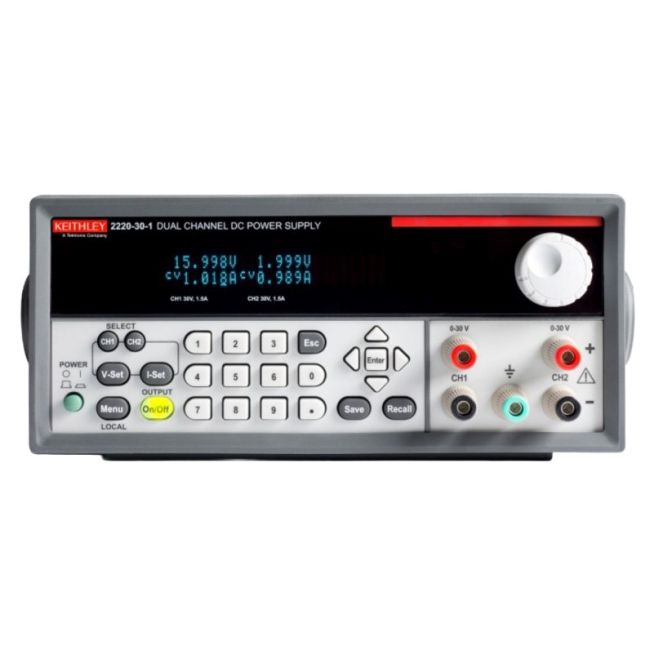

The Keithley 2220-30-1 Programmable Dual Channel DC Power Supply offers two 30V/1.5A channels, totaling 45W per channel. Channels can be combined in series for 60V or in parallel for 3A. It features 0.03% voltage and 0.1% current accuracy, low noise, isolated outputs, and remote sensing for reliable power delivery and data accuracy. USB interface supports automation.
Ideal for testing devices, modules, and circuit boards requiring multiple voltages. Operates efficiently in both manual and automated setups with simultaneous output displays.
Testwall can supply the used Keithley 2220-30-1, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keithley 2220-30-1.
